Function Control Switch

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For circuit reference, see WIRING DIAGRAMS .

To check function control switch operation, see Fig 1.

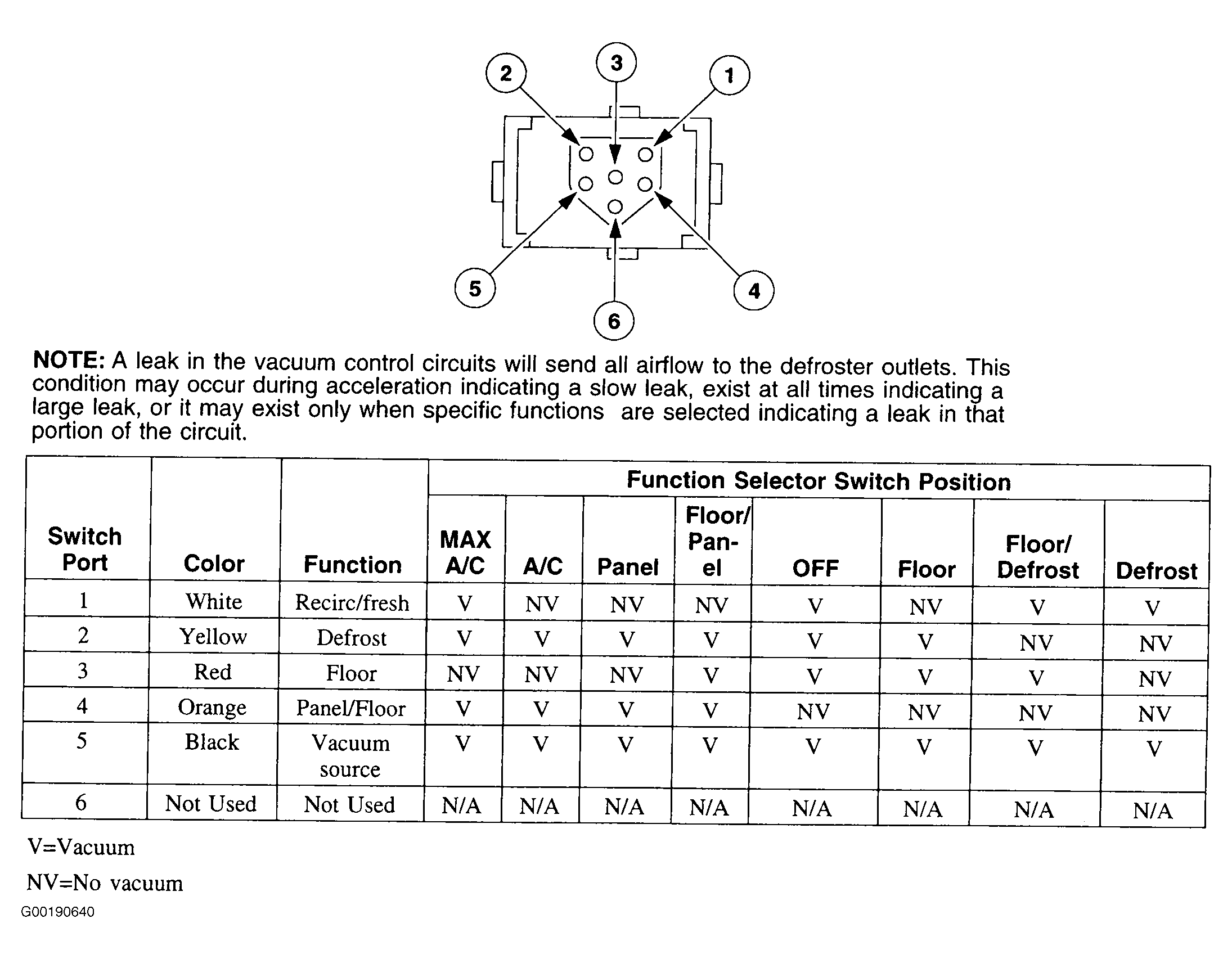

Fig 1: Testing Function Control Switch
G00190640Courtesy of FORD MOTOR CO.
