Shift Control Housing: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the contact surface of the shift fork and the synchronizer sleeve for wear or damage.

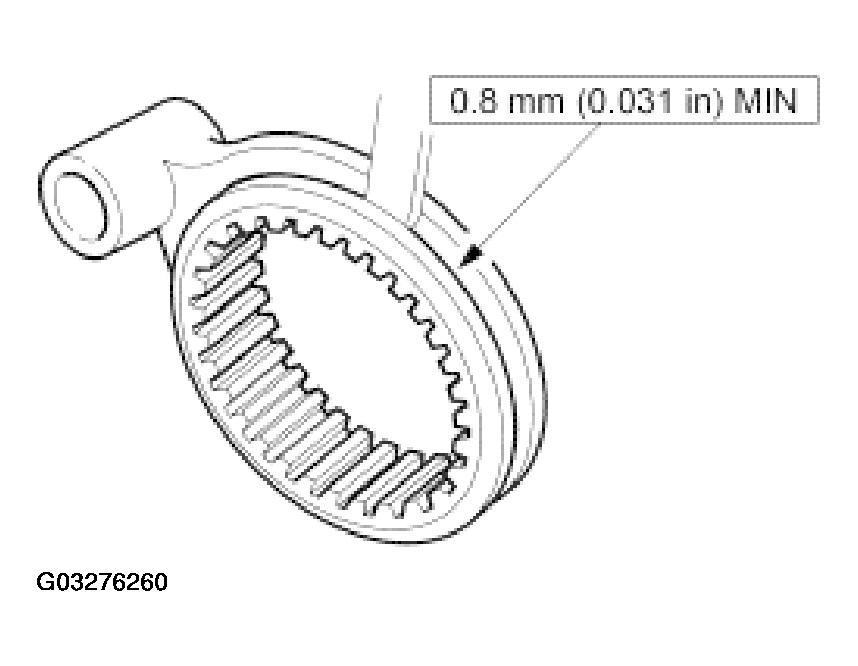

    Fig 1: Inspecting Shift Fork And Synchronizer Sleeve
    G03276260Courtesy of FORD MOTOR CO.
  2. Install the gear selector interlock sleeve.
    1. Position the gear selector interlock sleeve.
    2. Install the bolts.

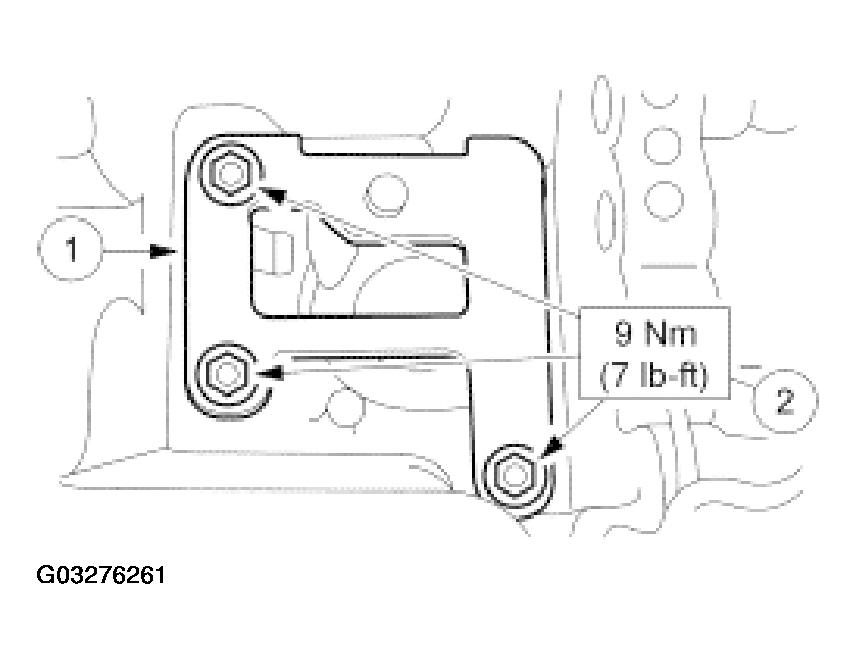

      Fig 2: Installing Gear Selector Interlock Sleeve
      G03276261Courtesy of FORD MOTOR CO.
  3. NOTE: Incorrect installation of the interlock pins will prevent activation of the backup lamp switch.

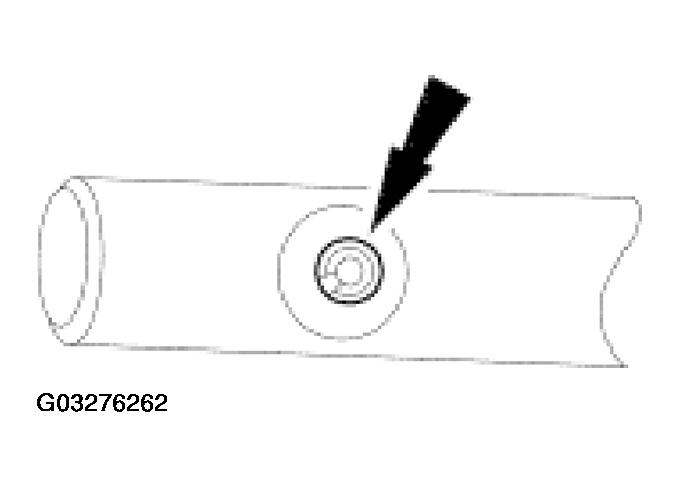

    Fig 3: Installing Interlock Pins Into Shift Rails
    G03276262Courtesy of FORD MOTOR CO.
  4. Install the interlock pins into their original shift rails.
  5. Position the detent ball and spring, the shift gate, the shift fork and spring, then install the third/fourth shift rail.

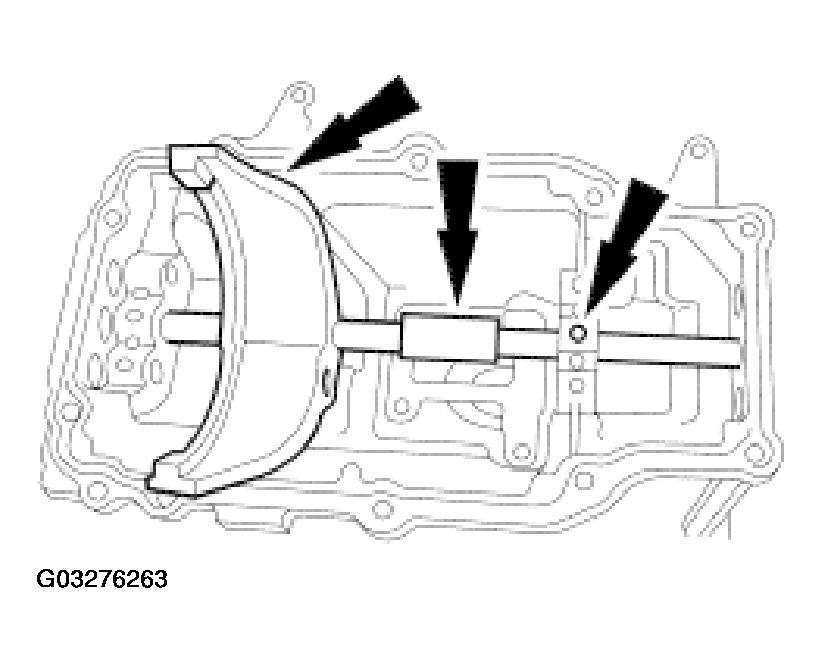

    Fig 4: Installing Third/Fourth Shift Rail
    G03276263Courtesy of FORD MOTOR CO.
  6. Position the detent ball and springs, the shift gate, the shift fork and spring, then install the first/second shift rail.

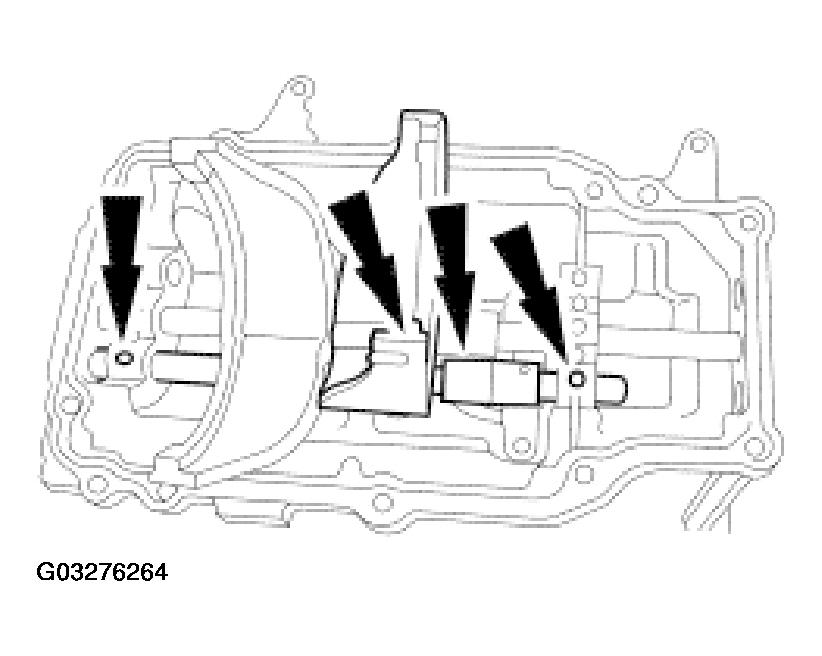

    Fig 5: Installing Detent Ball & Spring, Shift Gate, Shift Fork & Spring And First/Second Shift Rail
    G03276264Courtesy of FORD MOTOR CO.
  7. Position the fifth/reverse shift control, the detent ball and spring and the shift gate, then install the fifth/reverse shift rail.

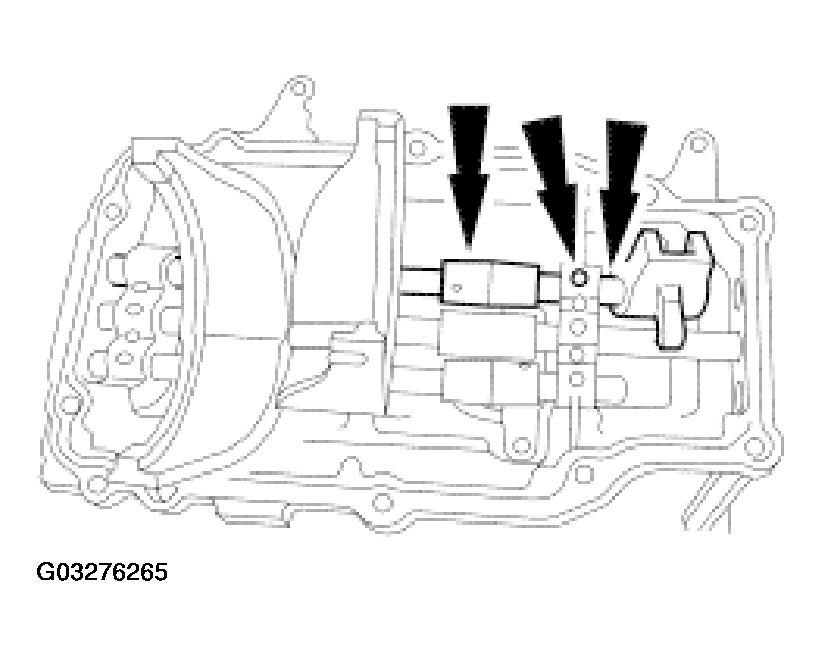

    Fig 6: Installing Fifth/Reverse Shift Rail
    G03276265Courtesy of FORD MOTOR CO.
  8. Install the three rubber service bore plugs.

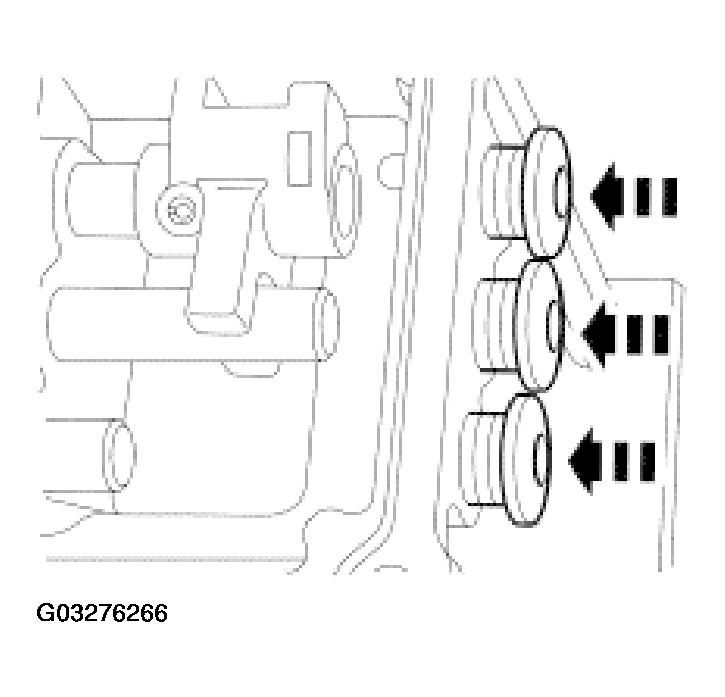

    Fig 7: Installing Three Rubber Service Bore Plugs
    G03276266Courtesy of FORD MOTOR CO.
  9. Install new shift gate spring pins.
    • Leave 1-2 mm (0.04-0.08 in) of the pin showing above the shift gate.

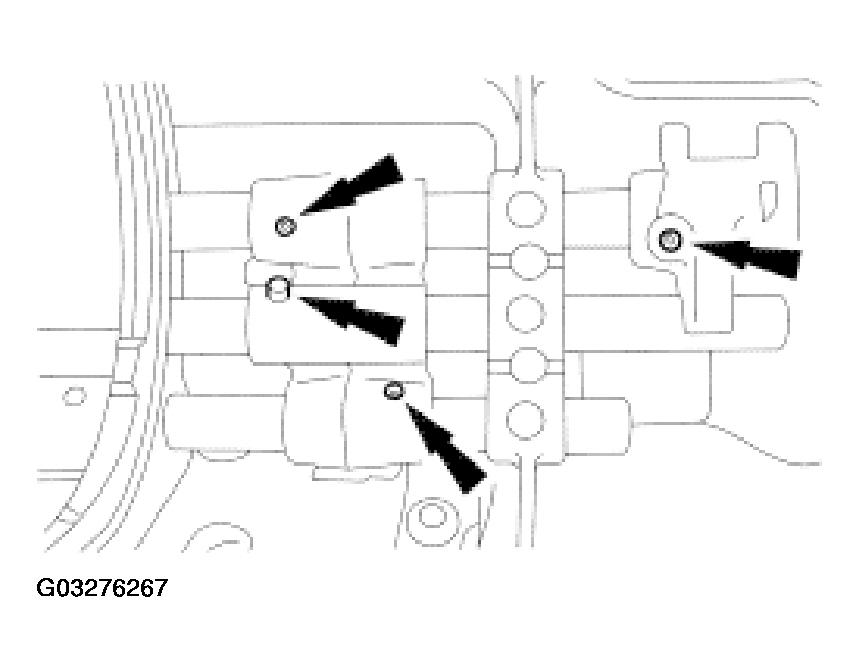

      Fig 8: Installing Shift Gate Spring Pins
      G03276267Courtesy of FORD MOTOR CO.
  10. Install new shift fork spring pins.
    • Leave 1-2 mm (0.04-0.08 in) of the pin showing above the shift fork.

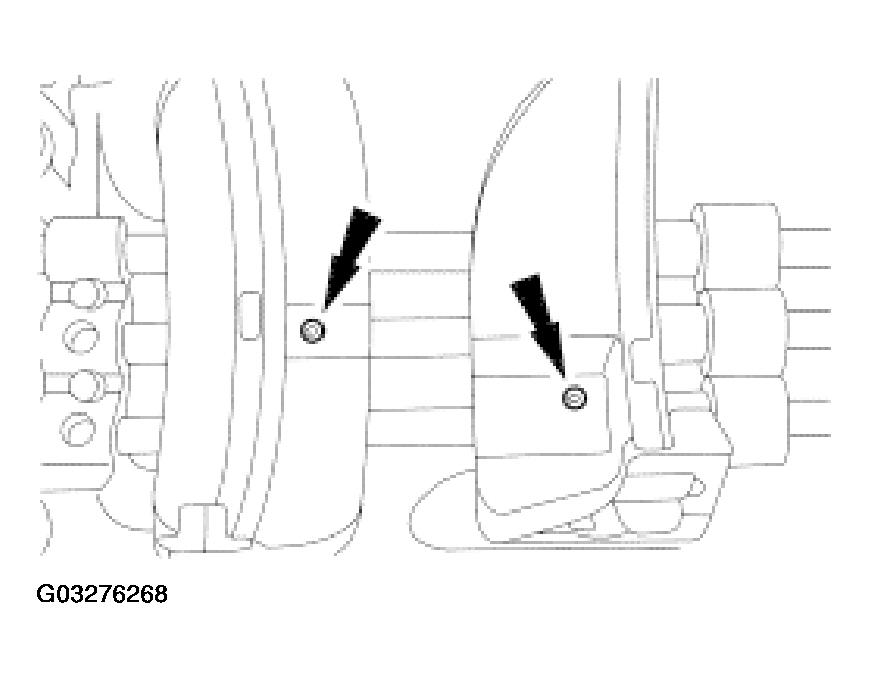

      Fig 9: Installing Shift Fork Spring Pins
      G03276268Courtesy of FORD MOTOR CO.
  11. Install the backup lamp switch.
    1. Install the backup lamp switch pin.
    2. Install the backup lamp switch.

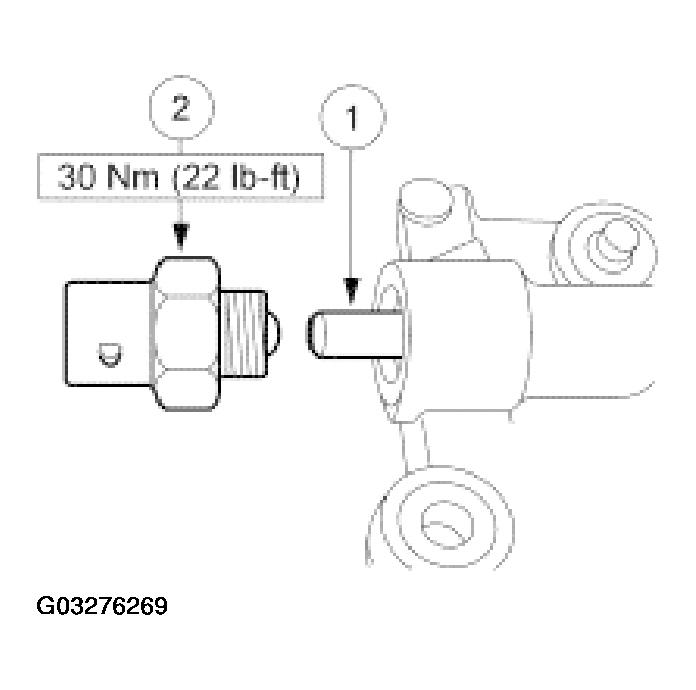

      Fig 10: Installing Backup Lamp Switch
      G03276269Courtesy of FORD MOTOR CO.
  12. Install the lower gearshift lever.
    1. Position the gearshift lever.
      • The notch on the gearshift lever must be installed facing the front of the transmission.
    2. Position the dust cover.
    3. Install the bolts.

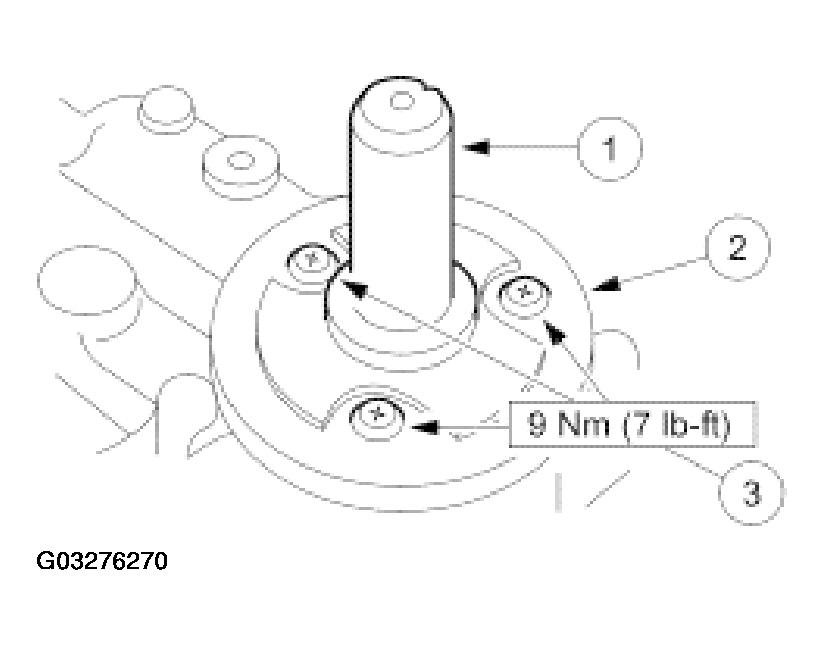

      Fig 11: Installing Lower Gearshift Lever
      G03276270Courtesy of FORD MOTOR CO.
