Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Match the marked parts for assembly.

Assemble the synchronizer.
1. Install the sleeve.
2. Install the insert keys.
3. Install the retaining spring.
4. Flip the synchronizer over and install the opposite retaining spring.

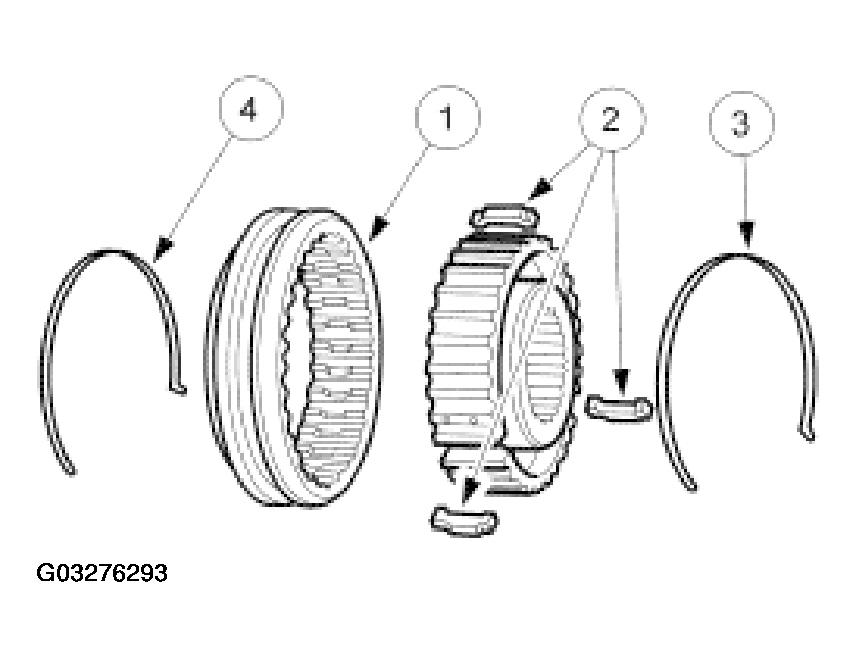

  Fig 1: Assembling Synchronizer
  Courtesy of FORD MOTOR CO.
