Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

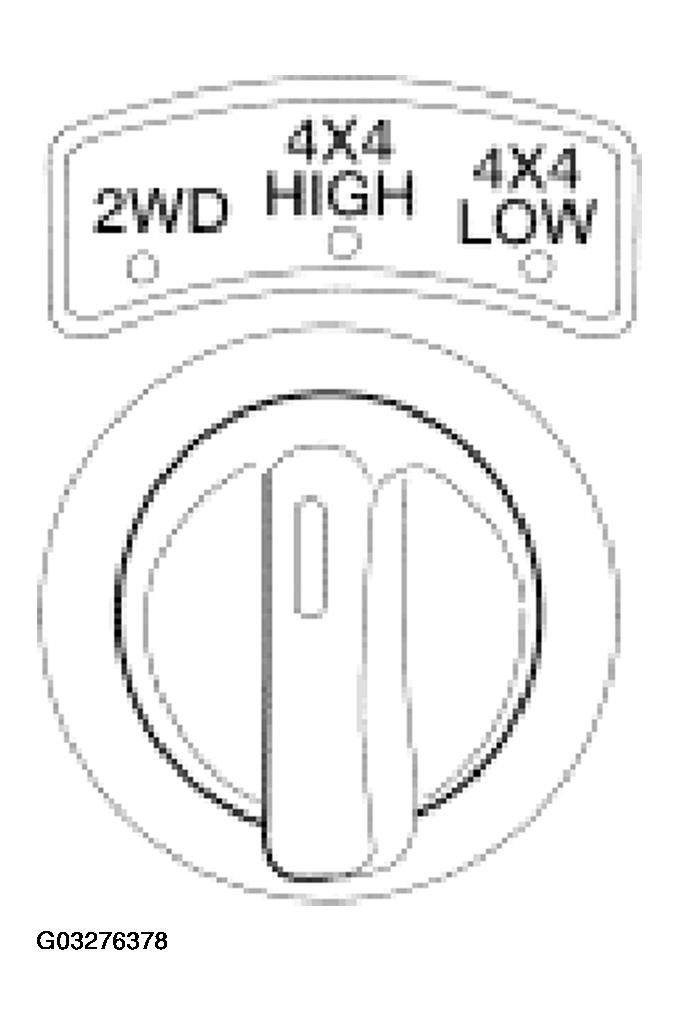

Set the mode select switch to the 4X4 HIGH position.

Fig 1: Setting Mode Select Switch To 4X4 High Position
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .

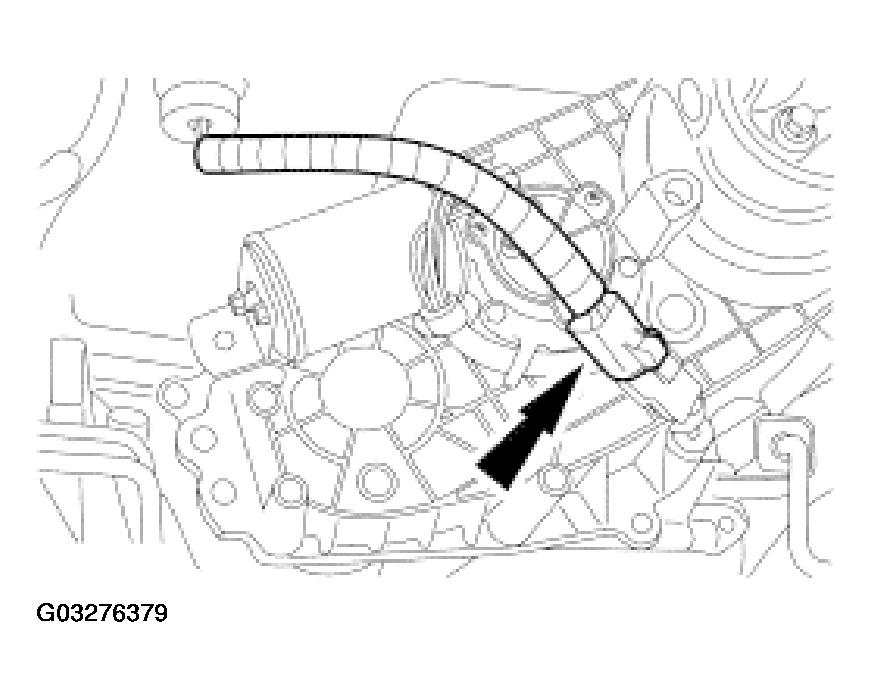

Disconnect the gear motor encoder assembly harness connector.

Fig 2: Disconnecting Gear Motor Encoder Assembly Harness Connector
Courtesy of FORD MOTOR CO.

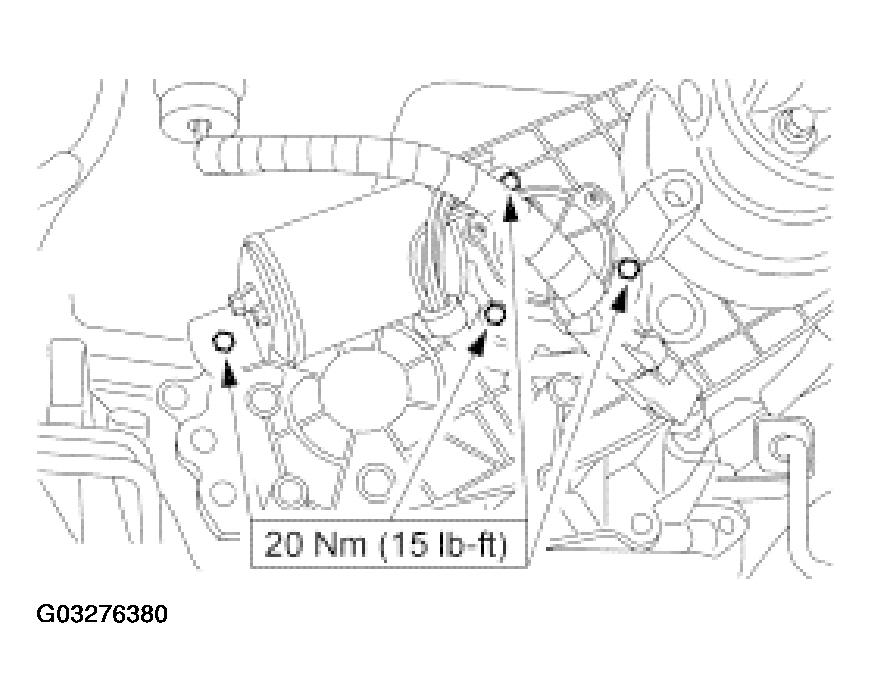

Remove the bracket bolt and the gear motor encoder assembly mounting bolts and remove the gear motor encoder assembly.

Fig 3: Removing Gear Motor Encoder Assembly
Courtesy of FORD MOTOR CO.
Remove the grease from the motor adapter and check for any nicks or burrs. If any damage is found, repair or install a new gear motor encoder assembly as necessary. For additional information, refer to TRANSFER CASE - AUTOMATIC SHIFT .
To install, reverse the removal procedure.
- Apply a coat of multi-purpose grease to the gear motor encoder assembly.
