Spring Lock Couplings: Connect

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Inspect and clean both the coupling ends.

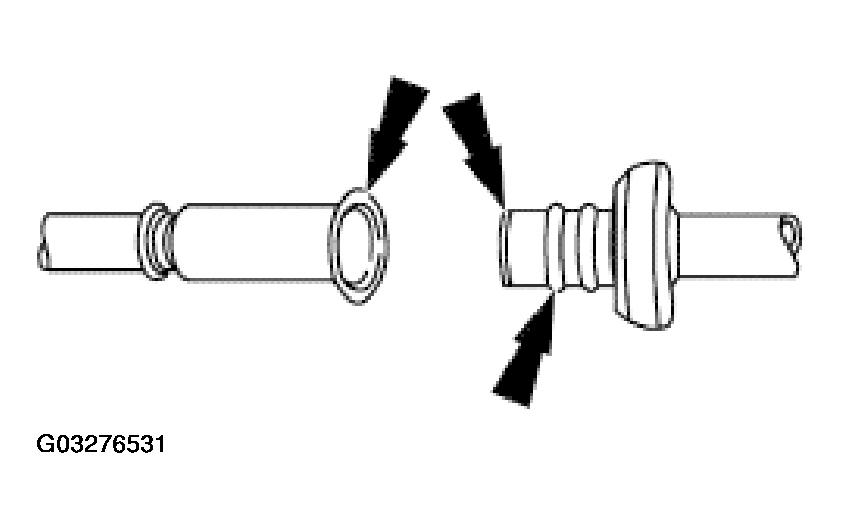

Fig 1: Inspecting And Clean Both Coupling Ends
Courtesy of FORD MOTOR CO.
Connect the fitting by inserting the male end into the female end of the fitting. Push the fitting together until the garter spring is engaged.

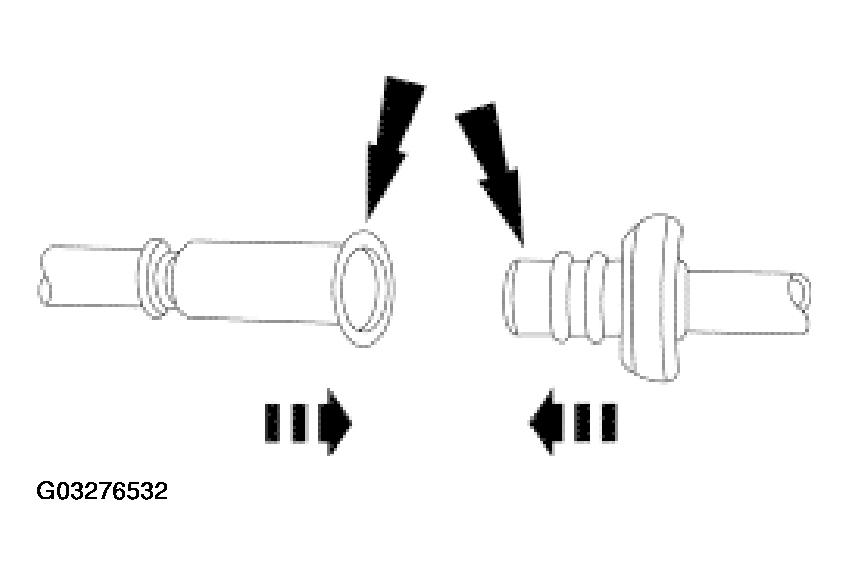

Fig 2: Inserting Male End Into Female End Of Fitting
Courtesy of FORD MOTOR CO.
Pull on the fitting to make sure it is fully engaged.

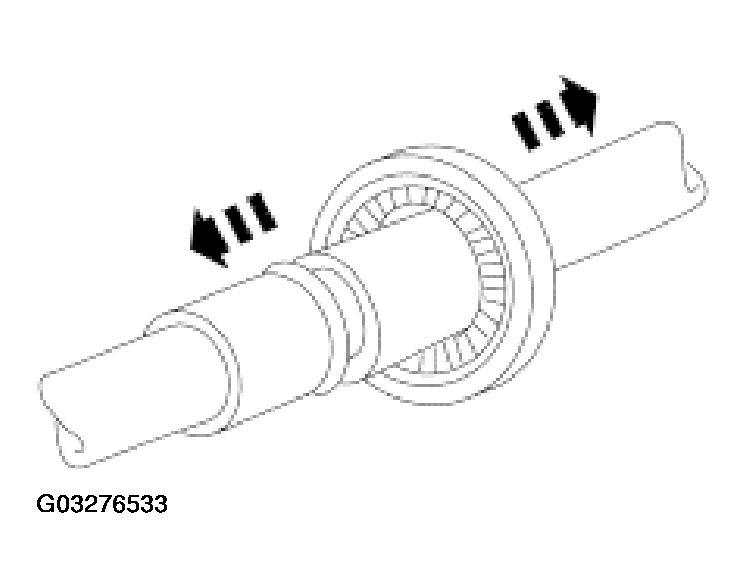

Fig 3: Pulling On Fitting To Make Sure It Is Fully Engaged
Courtesy of FORD MOTOR CO.
If equipped, install the safety clip.

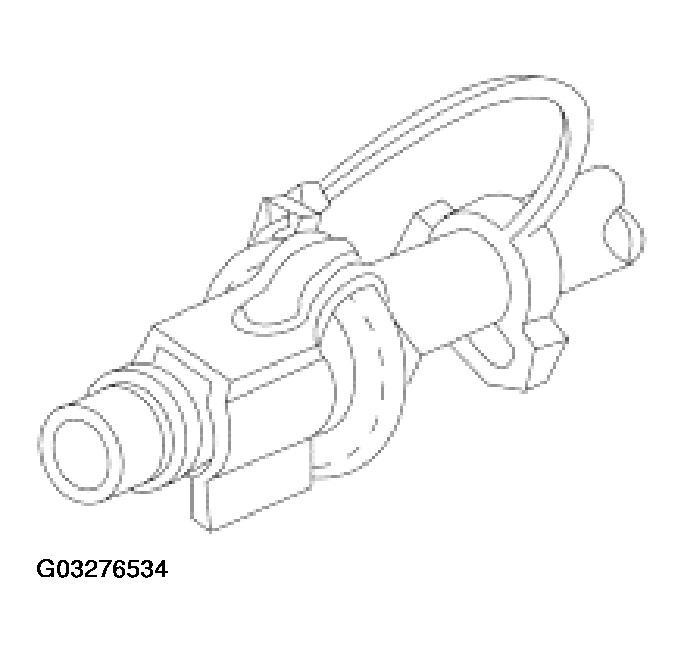

Fig 4: Installing Safety Clip
Courtesy of FORD MOTOR CO.
