Spring Lock Coupling: Notes

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

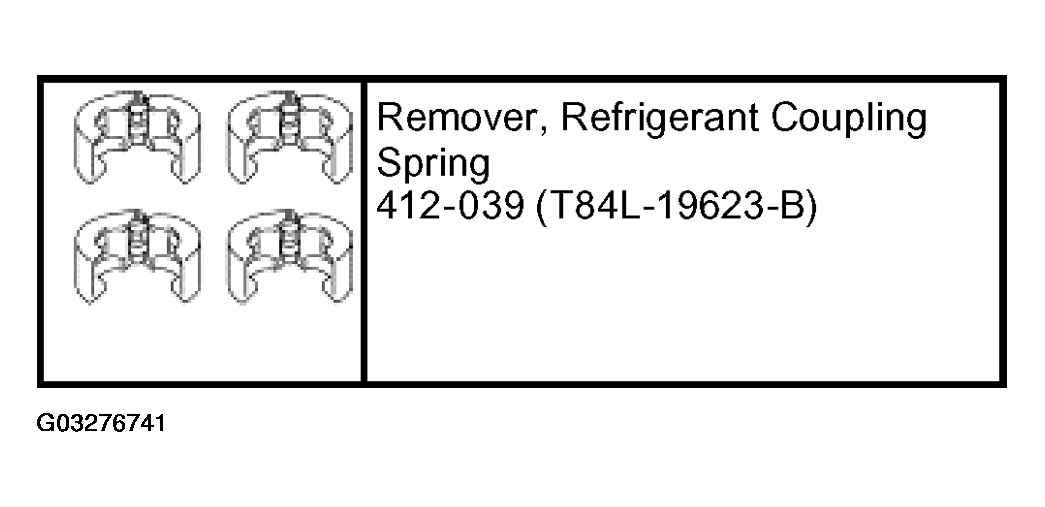

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil R-134a Systems) YN-12-D	WSH-M1C231-B
