Spare Key Programming
WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure is used when a customer needs to have an additional key programmed into the vehicle without erasing stored key codes, but does not have two programmed keys available. This procedure is also useful when attempting to determine if an ignition key is defective, as a new key can be installed without erasing keys or without having two programmed keys available.
NOTE:
Before programming, the new key must have the correct mechanical cut for the ignition lock.
NOTE:
If eight keys are already programmed, this procedure will not allow any further ignition keys to be programmed without erasing all stored key codes first. The number of keys programmed into the system can be determined using the PID NUMKEYS.
- Turn the ignition switch from the OFF position to the ON position using the new, unprogrammed ignition key.

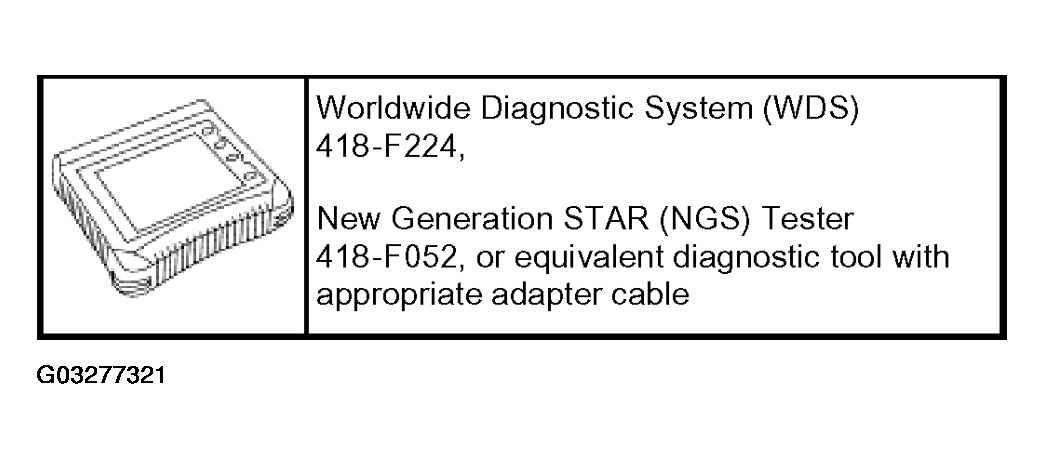

- Using the diagnostic tool Ford Service Function (FSF) card, select PCM from the menu. Follow Security Access to obtain security access. For additional information, refer to ANTI-THEFT SECURITY ACCESS .
- From the diagnostic tool menu select: IGNITION KEY CODE PROGRAM.
- Turn the ignition switch to the OFF position and disconnect the diagnostic tool.
- Attempt to start the engine with the new ignition key. The engine should start and run normally.
