Component Locations
WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

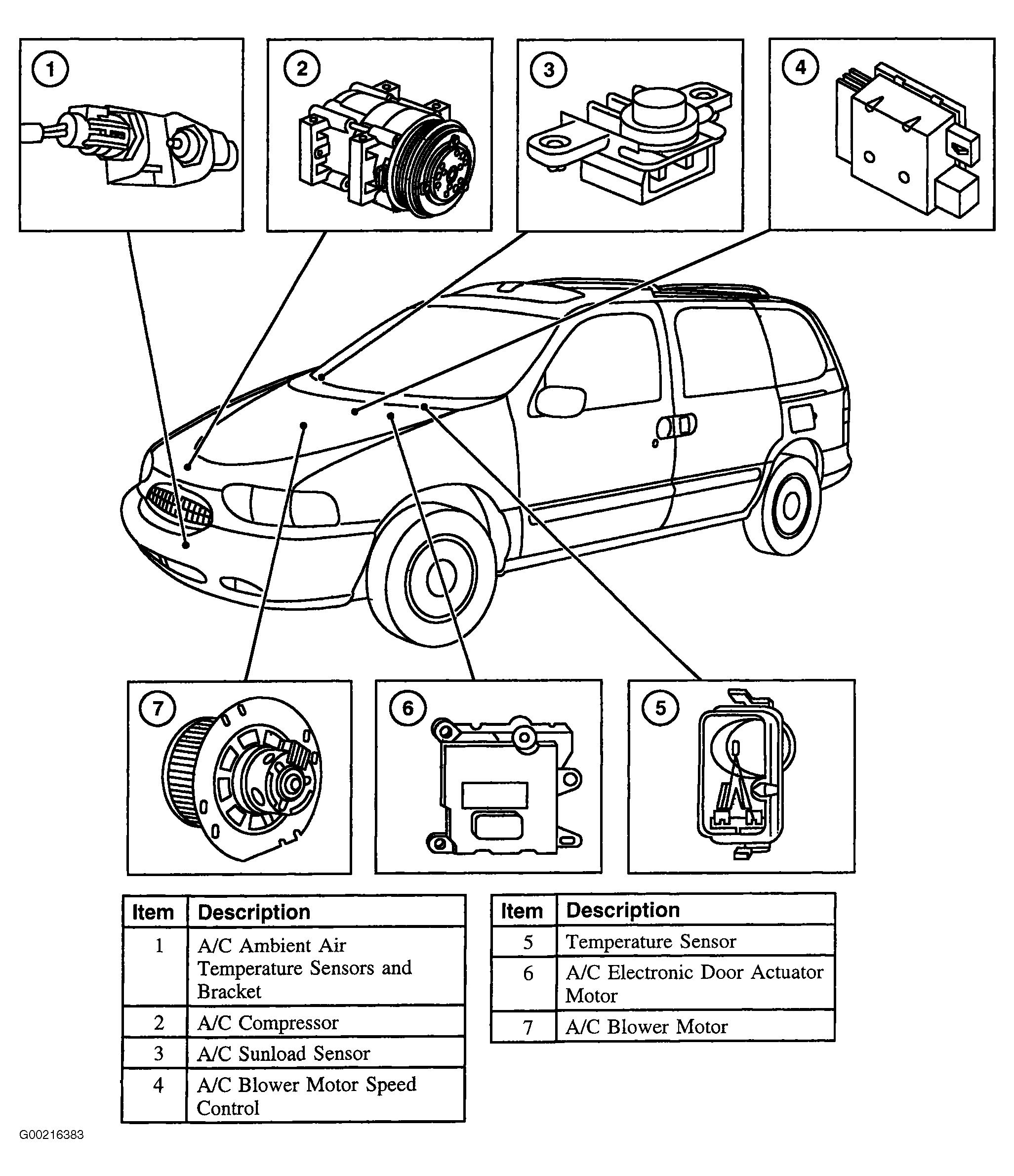

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Relay | Engine Compartment Relay Box |
| Ambient Air Temperature Sensor | On Front Center Of Engine Compartment |
| Auxiliary Blower Motor | Behind Panel, Right Rear Of Luggage Compartment |
| Auxiliary Blower Motor Relay | Behind Center Of Dash |
| Auxiliary Blower Motor Resistor | Behind Panel, Right Rear Of Luggage Compartment |
| Blend Door Actuator | Behind Right Center Of Dash, On A/C-Heater Plenum |
| Compressor Clutch Diode | In Right Front Of Engine Compartment |
| Compressor Clutch Solenoid | In Right Front Of Engine Compartment |
| Central Junction Box | Behind Left Side Of Dash |
| Coolant Temperature Sensor | On Top Center Rear Of Engine |
| Compressor Cycling Switch | On Right Side Of Engine Compartment |
| Dual Pressure Cut-Out Switch | In Right Front Of Engine Compartment |
| Engine Compartment Relay Box | On Left Front Of Engine Compartment |
| Fresh/Recirculation Door Actuator | Behind Right Side Of Dash, On A/C Heater Plenum |
| In-Vehicle Temperature Sensor | Behind Center Of Dash |
| Main Blower Motor | Central Junction Box |
| Main Blower Motor Relay | Central Junction Box |
| Main Blower Motor Resistor | Behind Right Side Of Dash, In A/C Heater Plenum |
| Main Blower Motor Speed Controller | Behind right Side Of Dash |
| Powertrain Control Module | Behind Right Side Of Dash, Behind Glove Box |
| Sunload Sensor | On Top Left Side Of Dash |
| Temperature Door Variable Resistor | Behind Center Of Dash |
