A/C System Performance: Notes
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When ambient temperatures exceed 100°F (38°C), do not run engine above normal idle speed.

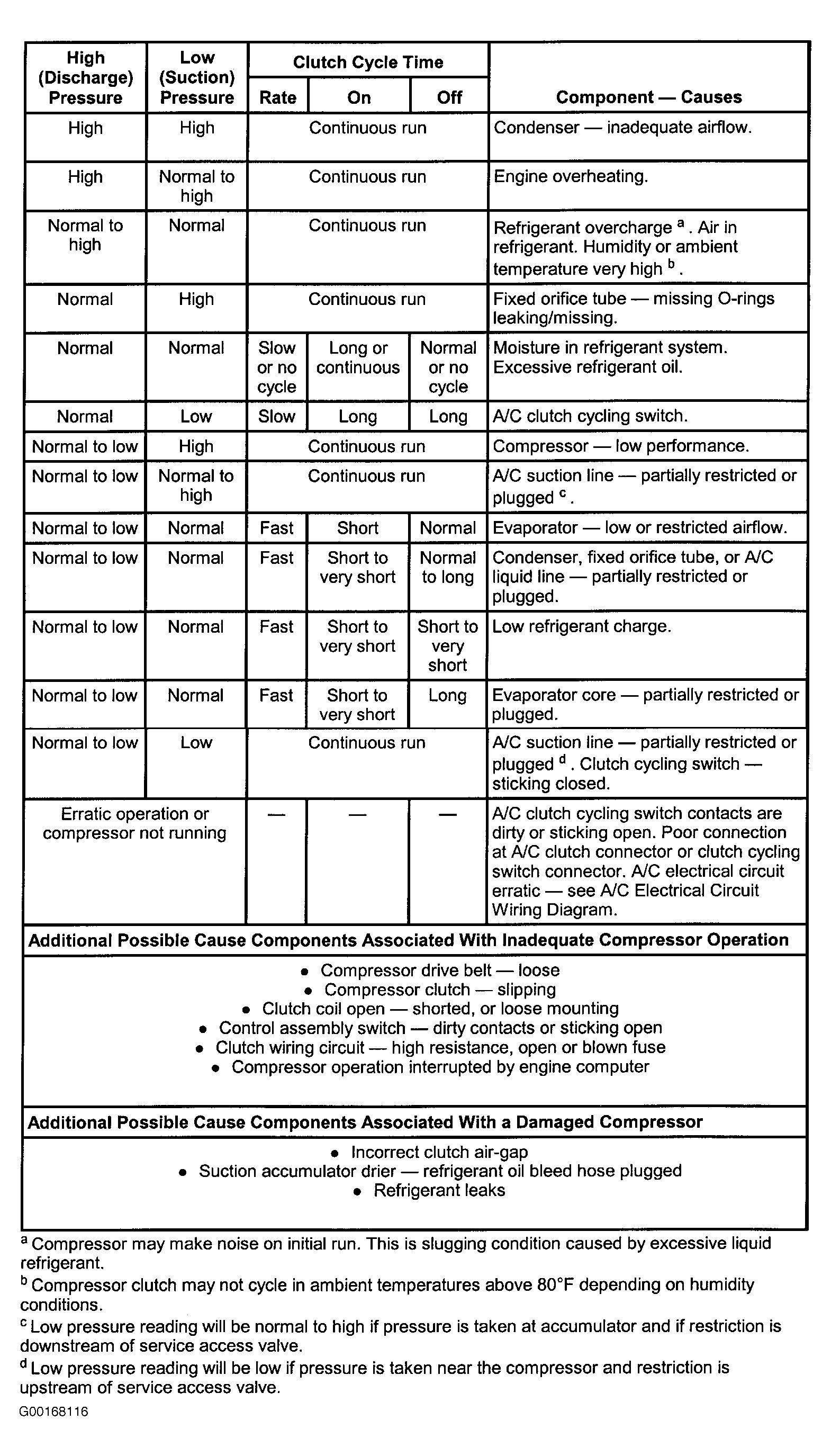

Connect manifold gauge set to service valves. Adjust climate control for maximum cooling by starting engine. Select MAX A/C operation. Set blower motor speed to maximum. Stabilize in-vehicle temperature at 70-80°F (21-27°C). Maintain engine speed at 1500 RPM. Use recorded value and Fig 1 to determine malfunction.
