Instrument Cluster: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Tilt the steering column to the lowest position.
Disable the supplemental restraint system (SRS). For additional information, refer to DISABLING SYSTEM .
Remove the instrument panel steering column reinforcement. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

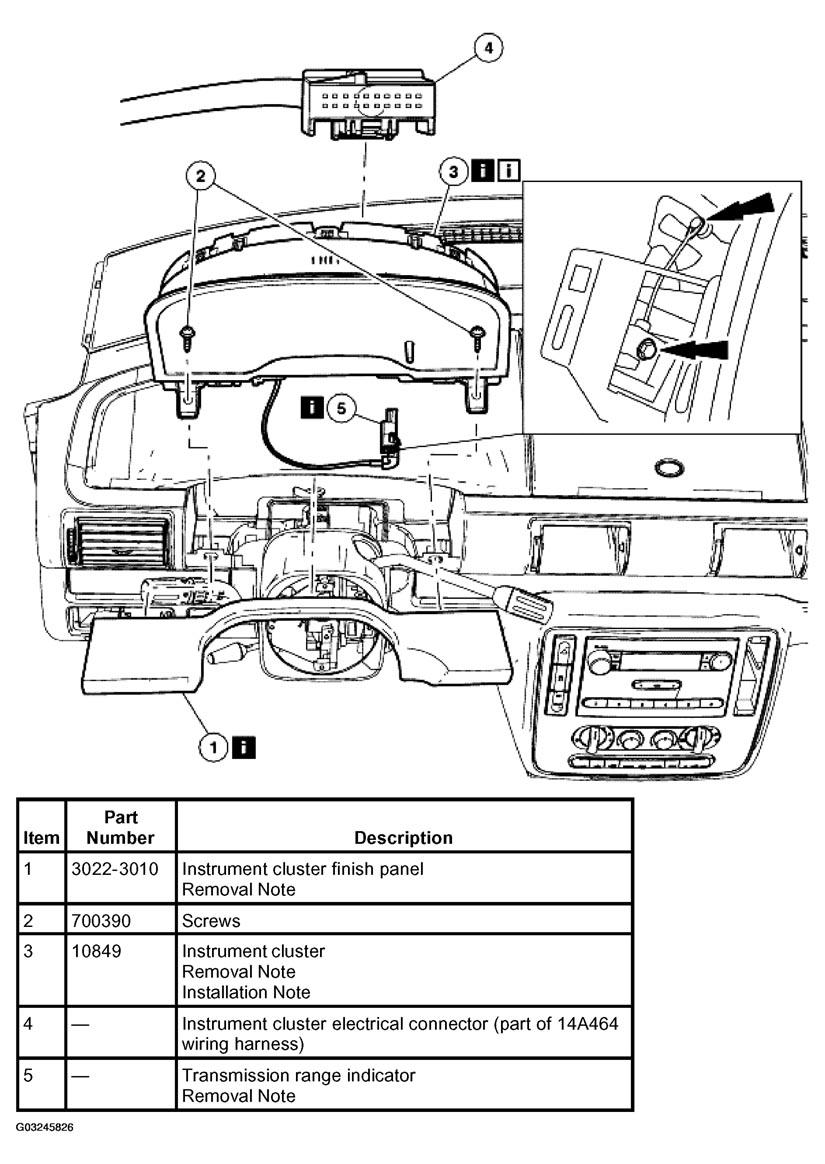

Fig 1: Instrument Cluster Components Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
