Driver Door Lock Control Switch C508b
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

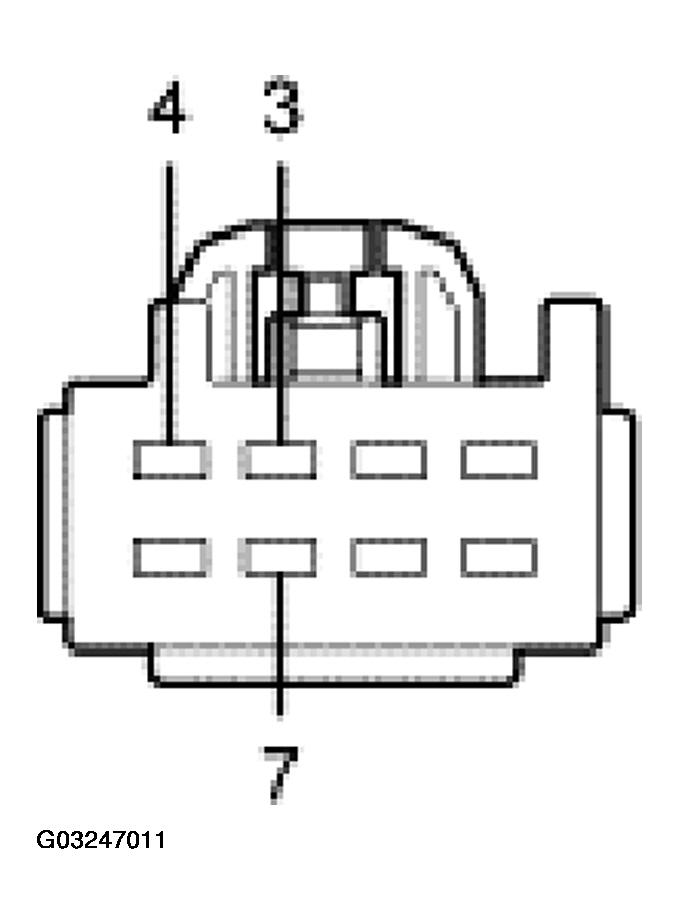

DRIVER DOOR LOCK CONTROL SWITCH C508b
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 1316 (WH/VT) driver door lock control switch lock input | Less than 5 ohms resistance between the driver door lock control switch and the SJB. Greater than 10,000 ohms between the driver door lock control switch and ground. |
| 4 | 1205 (BK) driver door lock control switch ground | 0 voltage, less than 5 ohms resistance between the driver door lock control switch and ground. |
| 7 | 1317 (DB/LG) driver door lock control switch unlock input | Less than 5 ohms resistance between the driver door lock control switch and the SJB. Greater than 10,000 ohms between the driver door lock control switch and ground. |
