Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the parts in the order indicated in the following illustration and table.

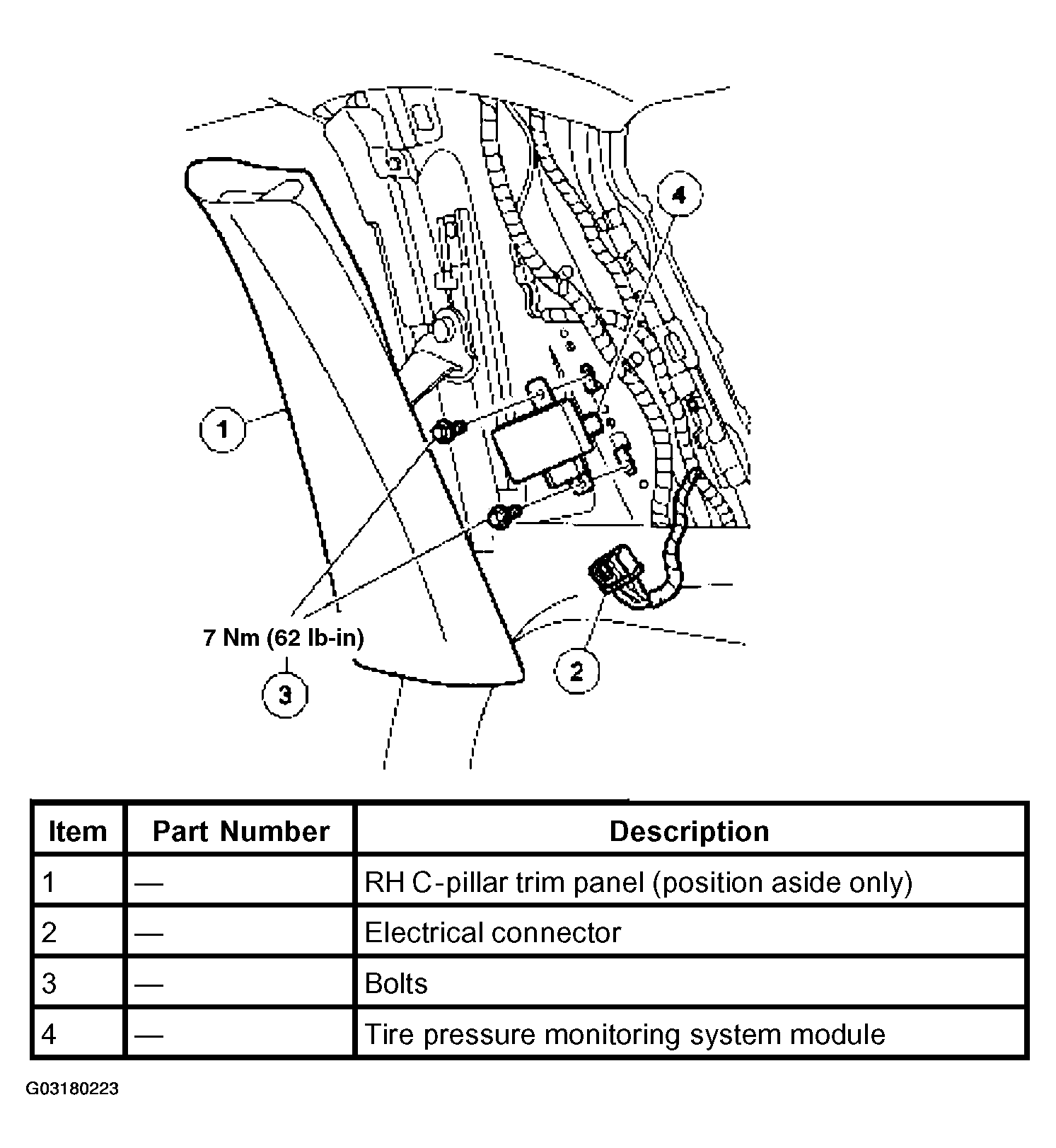

Fig 1: Identifying Tire Pressure Monitoring System Module Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Reconfigure the TPMS module. For additional information, refer to MODULE COMMUNICATIONS NETWORK .
Train the tire pressure sensors. For additional information, refer to SENSOR TRAINING Component Test.
Clear the DTCs. Repeat the self-test.
