Section 556 (Automatic Transmission): Assembly: Transmission: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

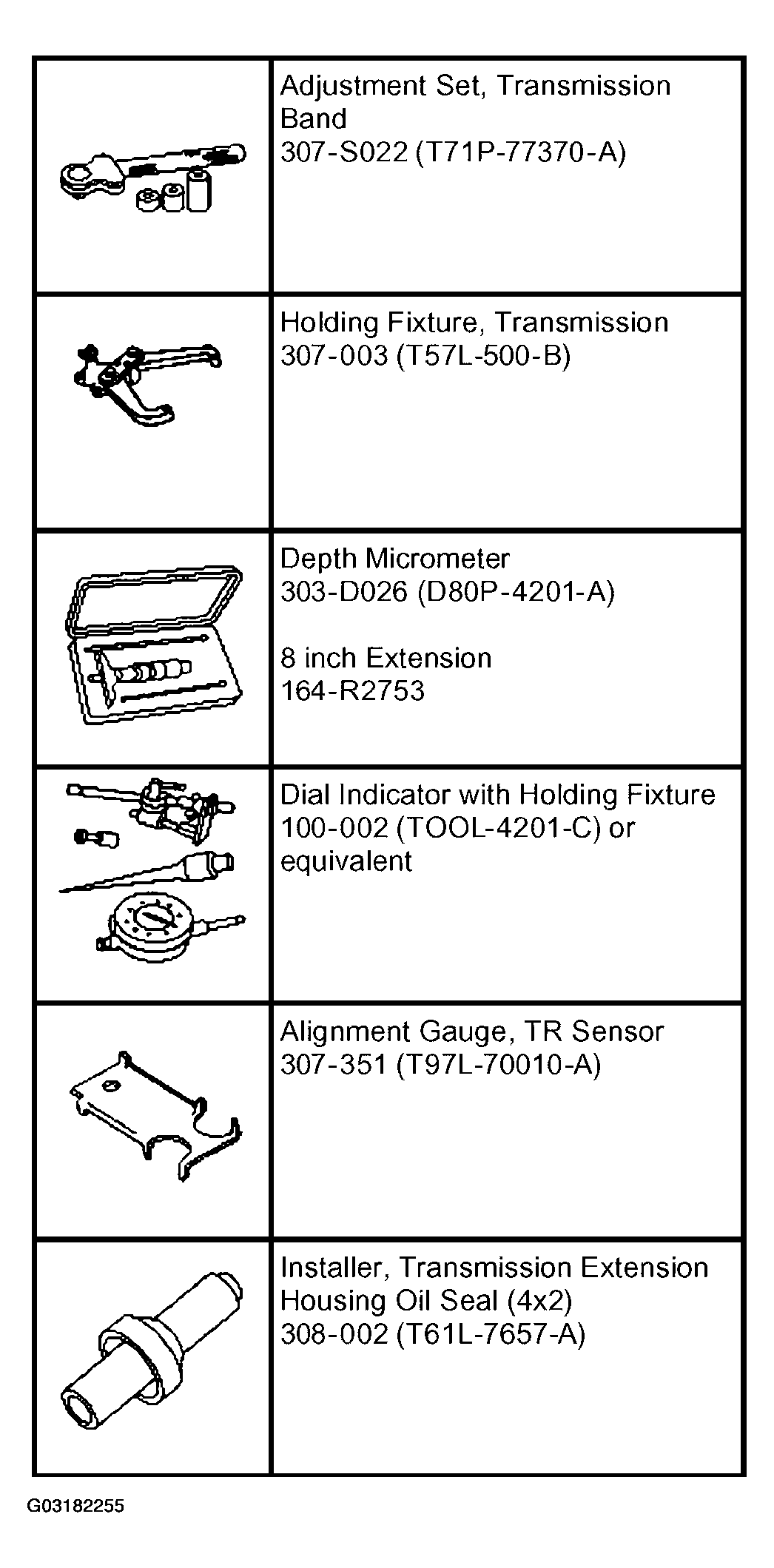

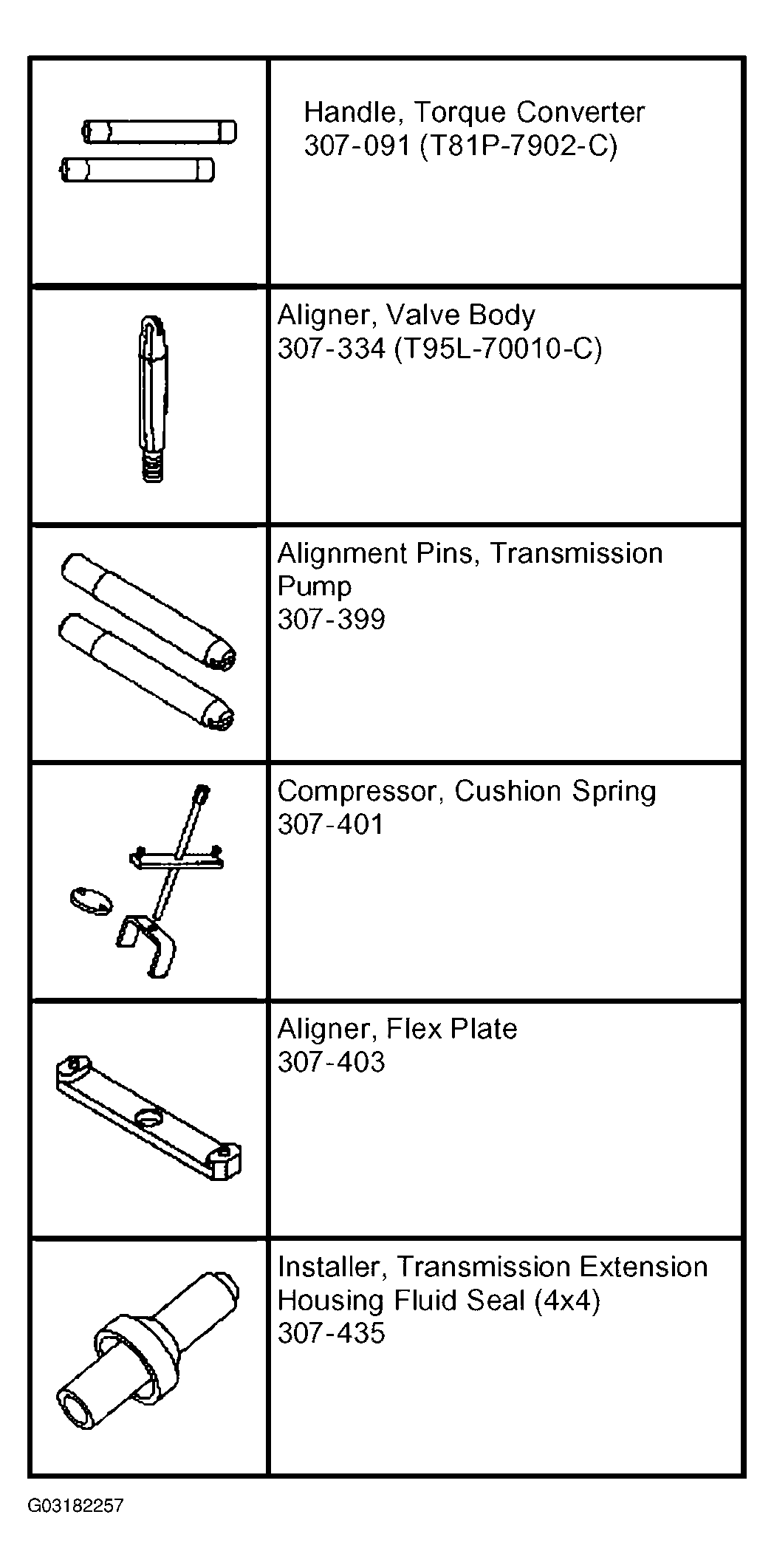

Fig 1: Identifying Special Tool(s) (1 Of 3)

Courtesy of FORD MOTOR CO.

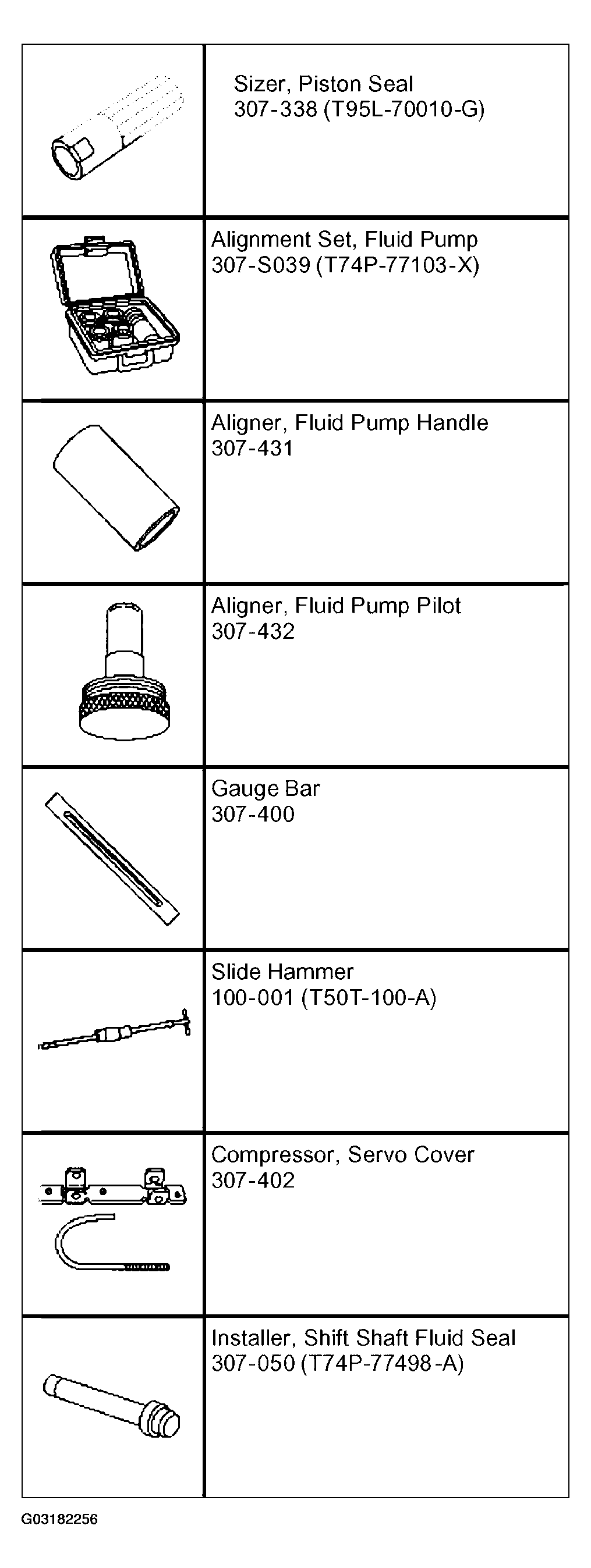

Fig 2: Identifying Special Tool(s) (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Special Tool(s) (3 Of 3)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V
Multi-Purpose Grease XG-4	ESR-M19159-A

NOTE: Inspect the transmission case and extension housing for the following:

stripped screw hole threads
gasket and mating surfaces for burrs or nicks
obstructions to vent and fluid passages
cracks or warpage

NOTE: Thoroughly clean the transmission case and extension housing in clean automatic transmission fluid and blow dry with compressed air.

NOTE: Lubricate all seals and the servo bores with clean automatic transmission fluid.

Assemble the parts in the order indicated in the following illustrations and tables.

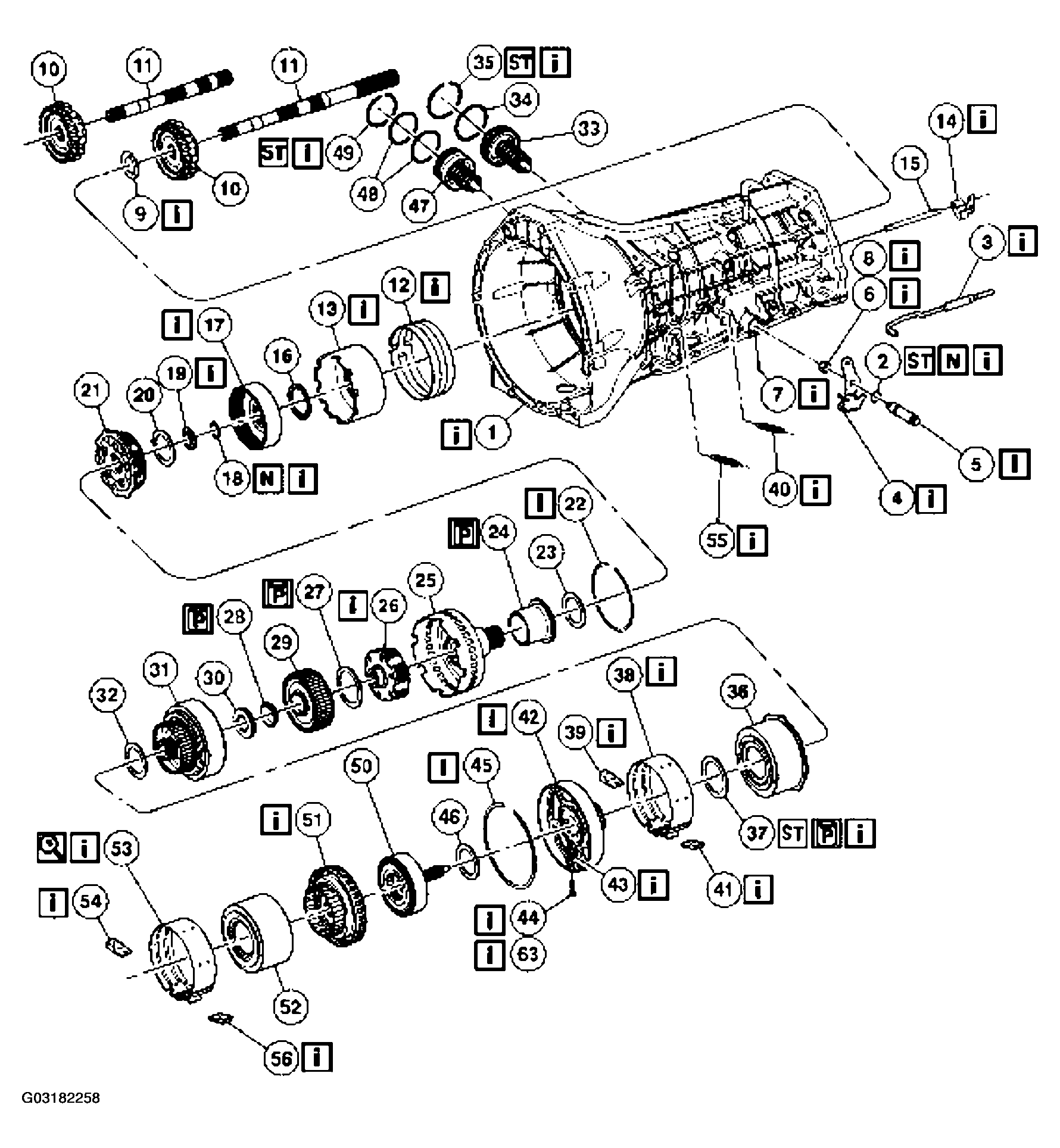

Fig 4: Identifying Assemble Order Of Transmission (1 Of 6)
Courtesy of FORD MOTOR CO.

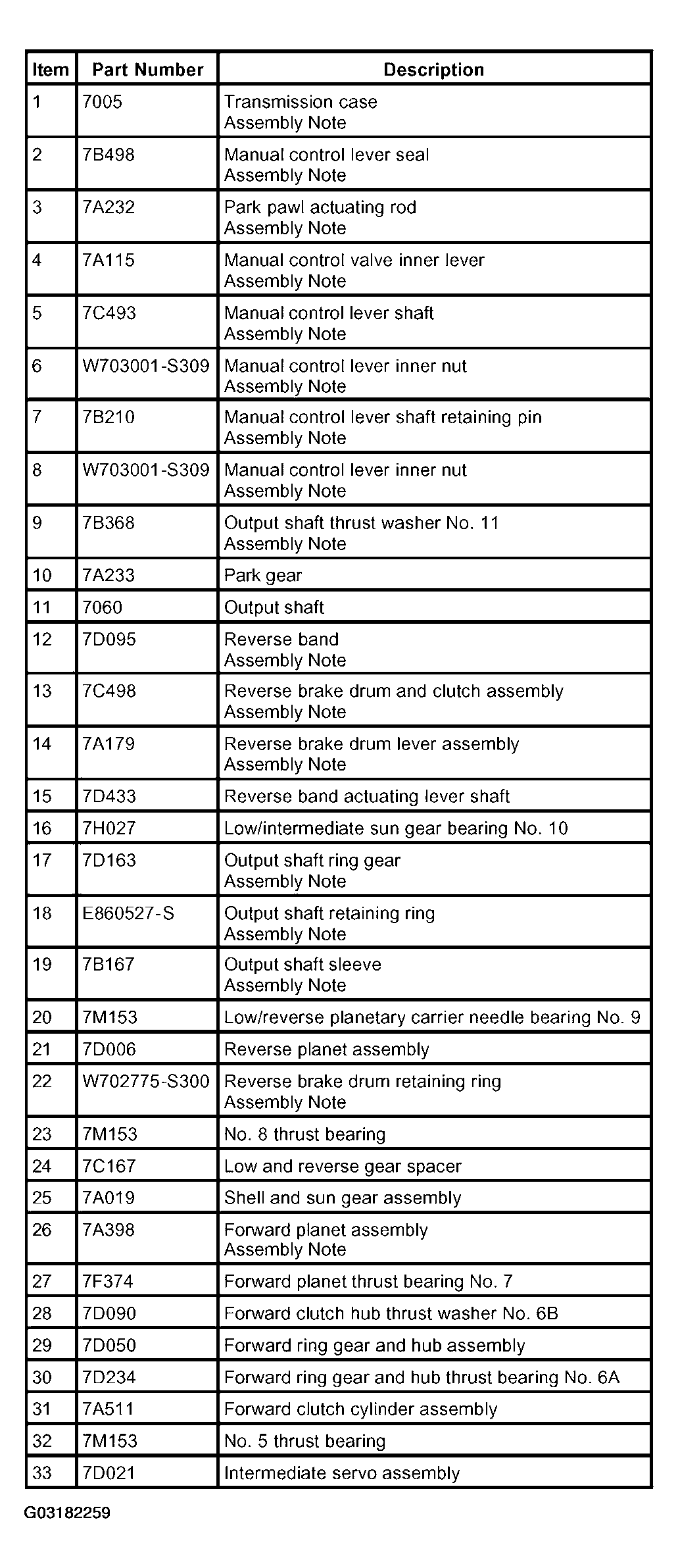

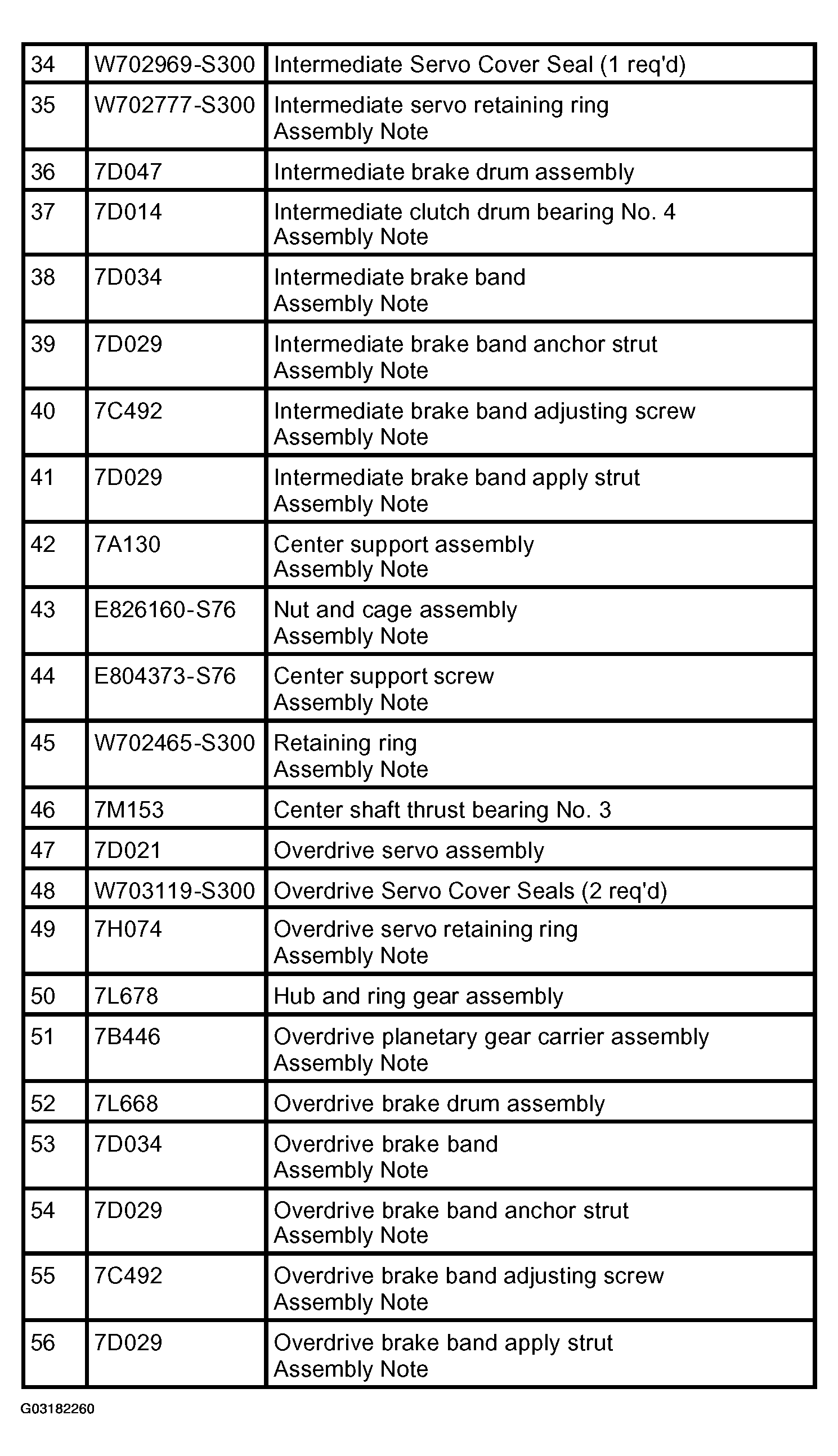

Fig 5: Identifying Assemble Order Of Transmission (2 Of 6)
Courtesy of FORD MOTOR CO.

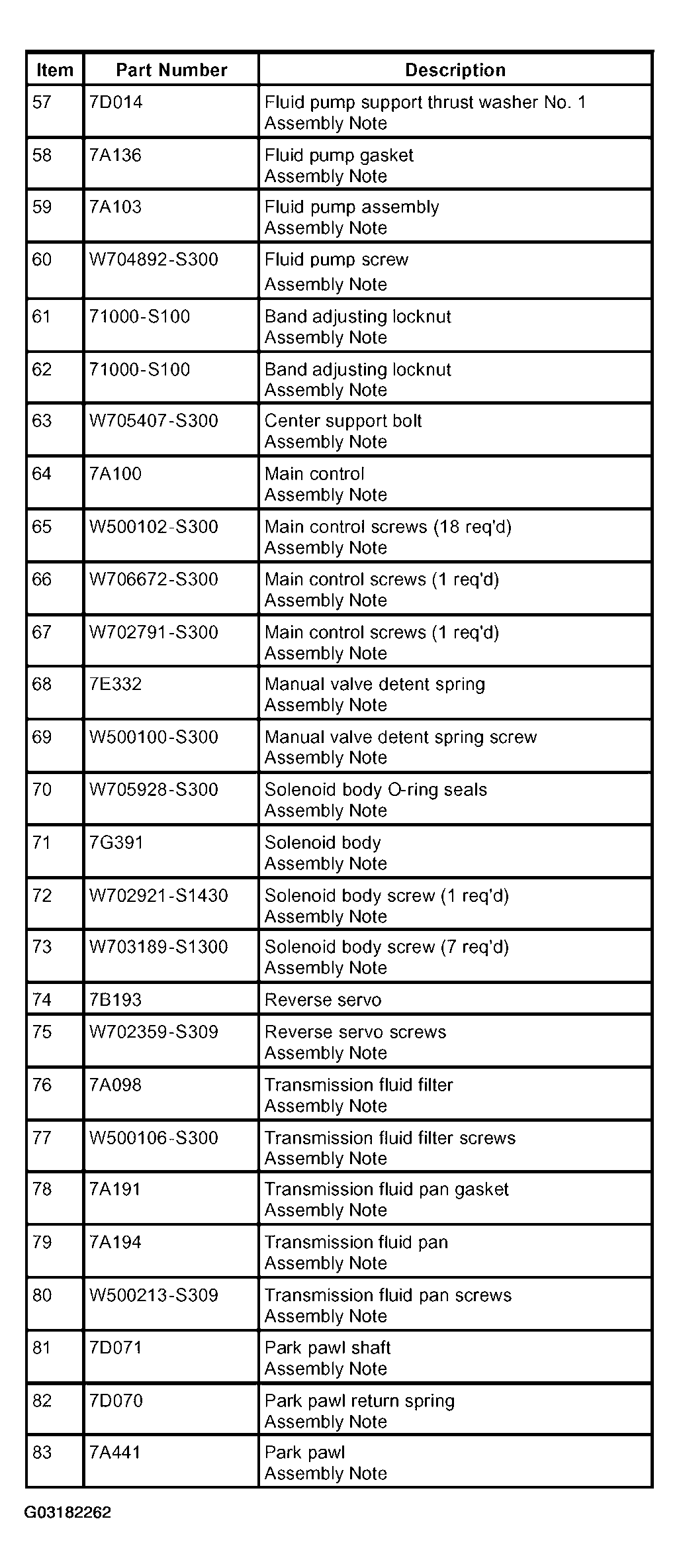

Fig 6: Identifying Assemble Order Of Transmission (3 Of 6)
Courtesy of FORD MOTOR CO.

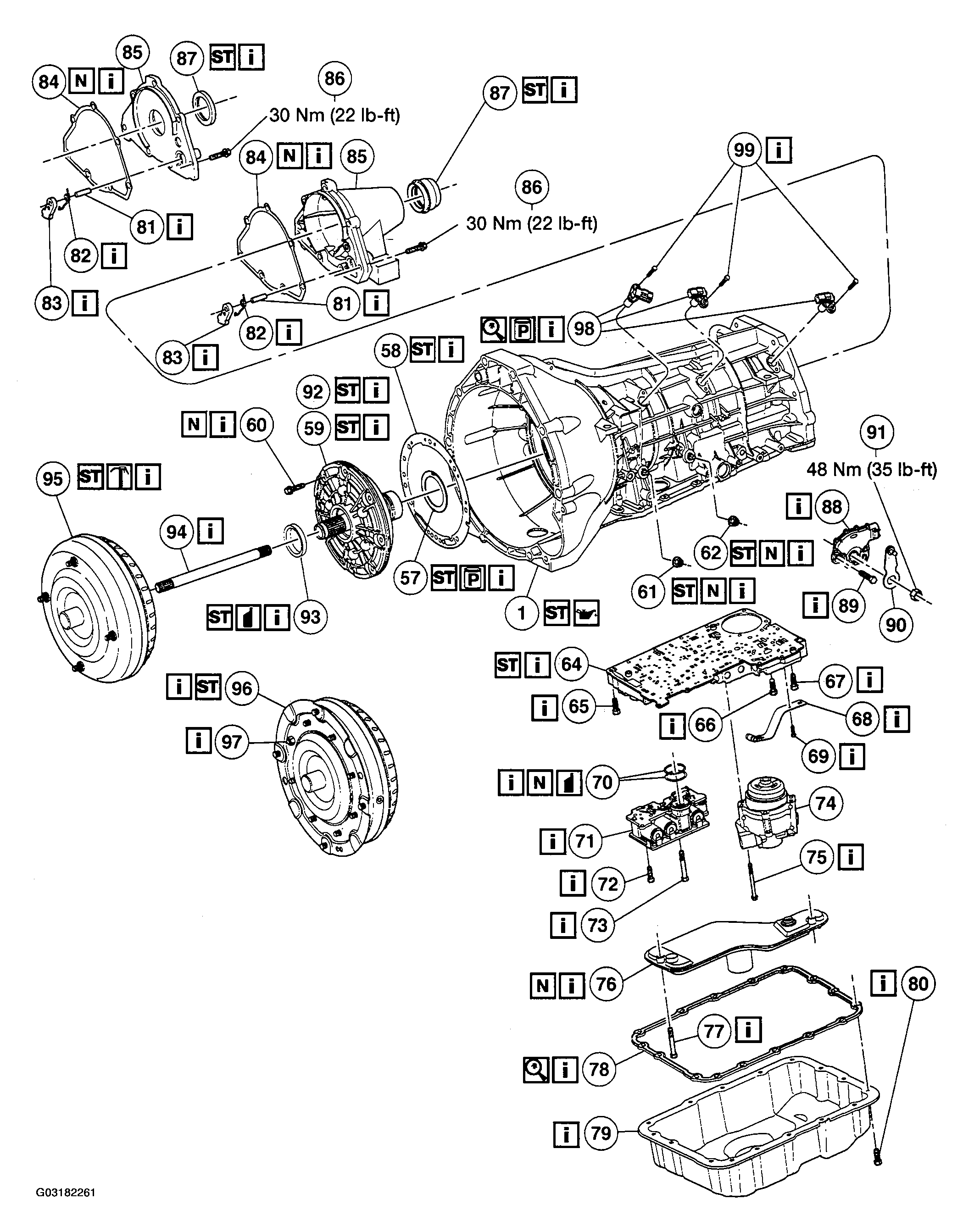

Fig 7: Identifying Assemble Order Of Transmission (4 Of 6)
Courtesy of FORD MOTOR CO.

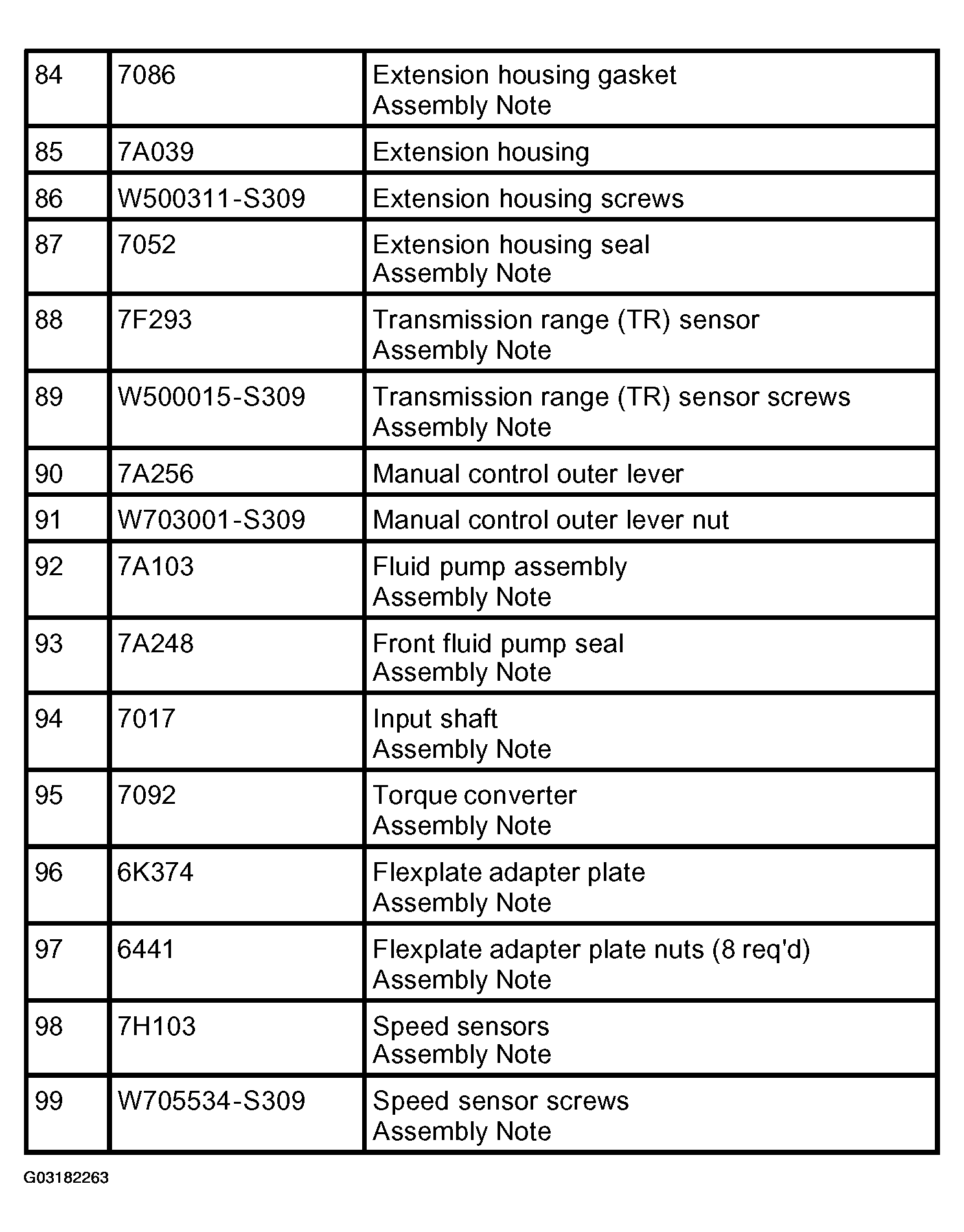

Fig 8: Identifying Assemble Order Of Transmission (5 Of 6)
Courtesy of FORD MOTOR CO.

Fig 9: Identifying Assemble Order Of Transmission (6 Of 6)
Courtesy of FORD MOTOR CO.
