Section 556 (Automatic Transmission): Disassembly: Transmission: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

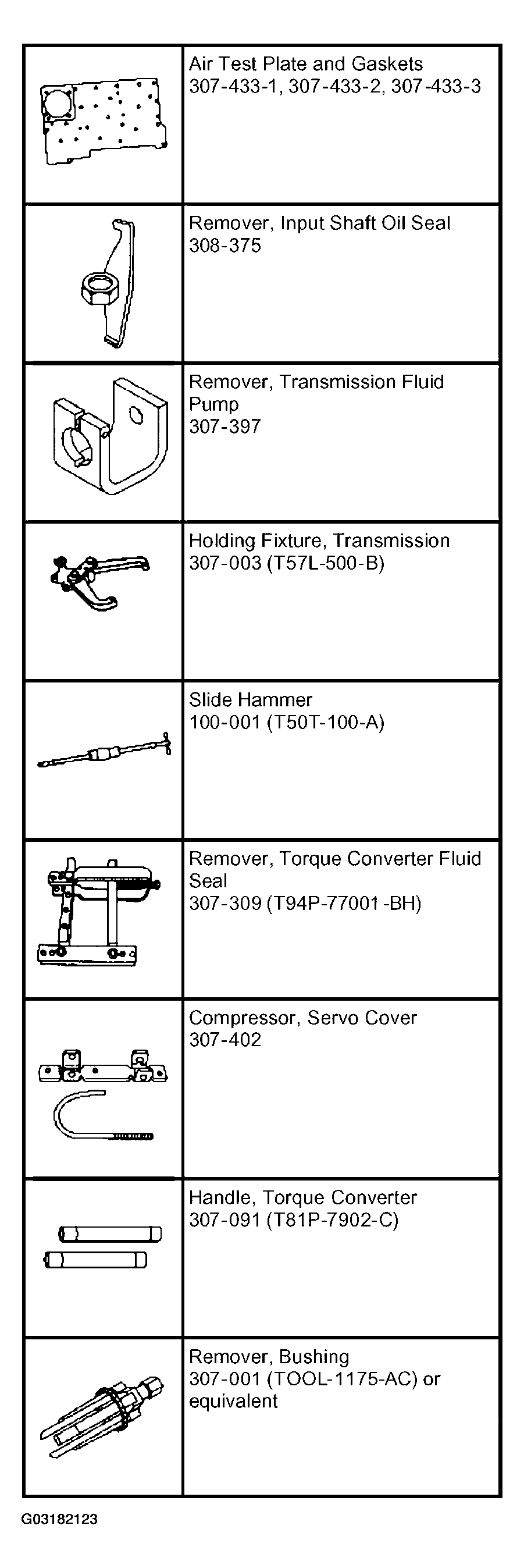

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

NOTE: The transmission fluid pan gasket is reusable. Clean and inspect the gasket for damage. If not damaged, the gasket should be reused.

NOTE: Tag and identify all parts for reassembly.

Remove the parts in the order indicated in the following illustration and table.

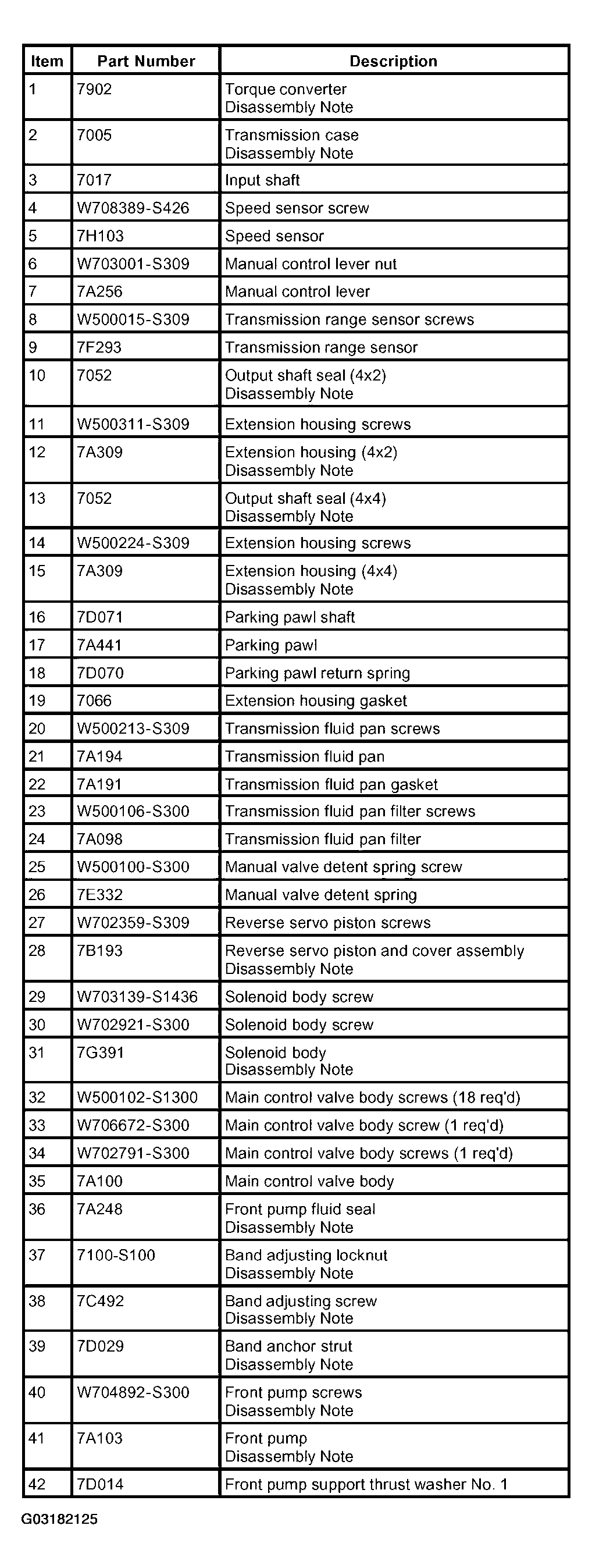

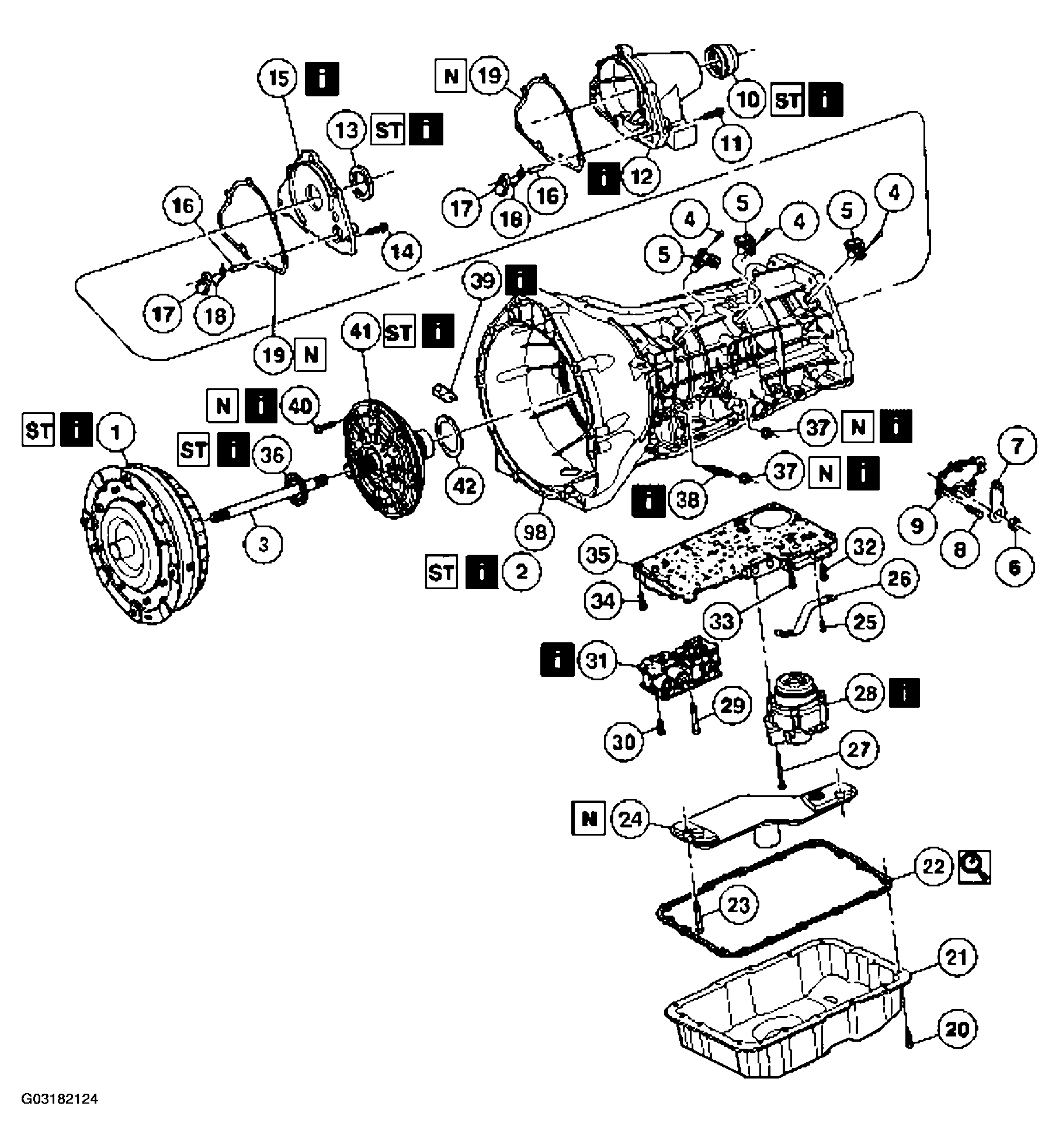

Fig 2: Identifying Disassemble Order Of Transmission (1 Of 5)
Courtesy of FORD MOTOR CO.

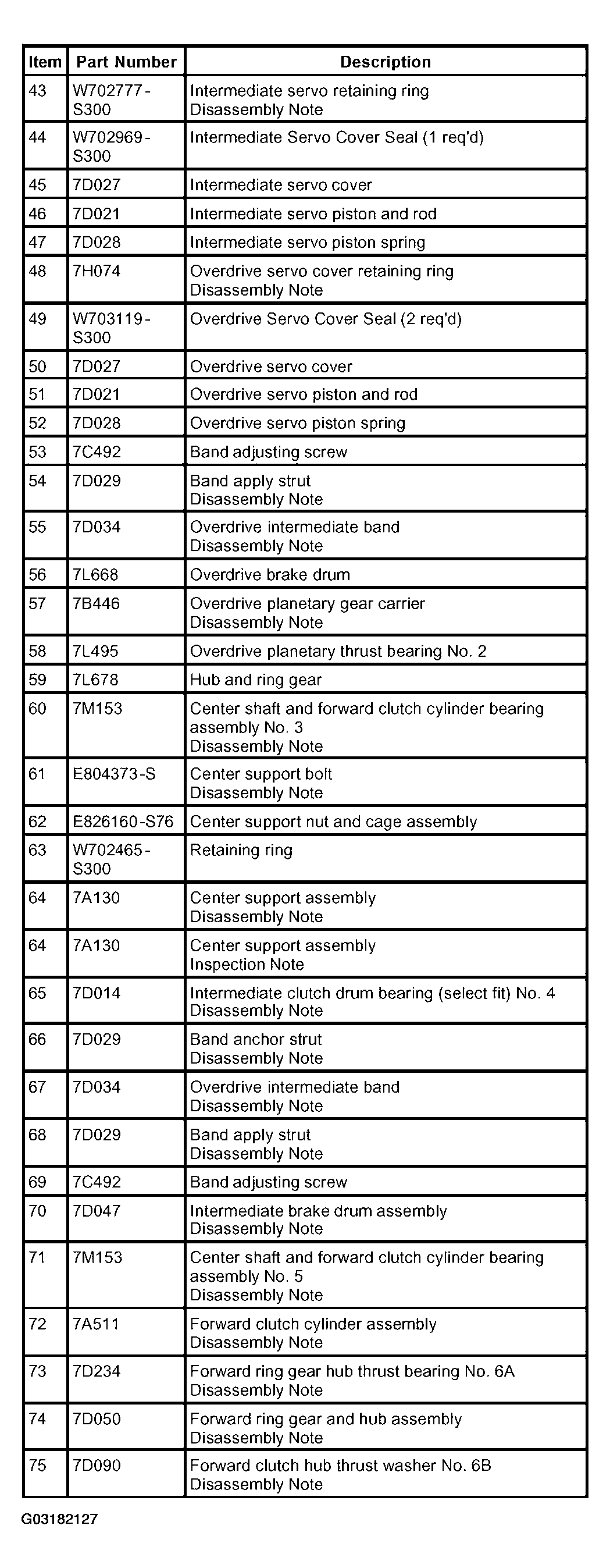

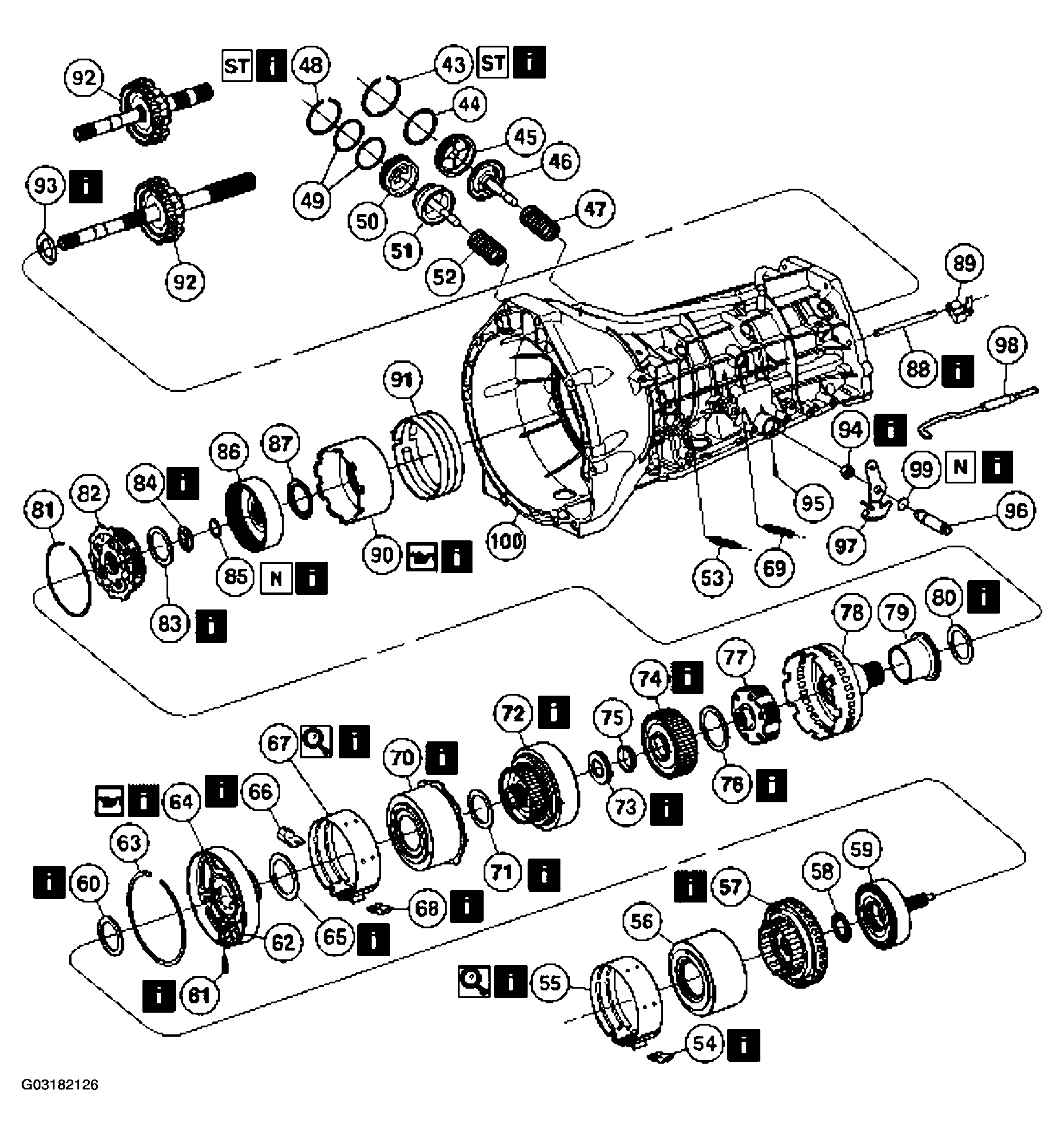

Fig 3: Identifying Disassemble Order Of Transmission (2 Of 5)
Courtesy of FORD MOTOR CO.

Fig 4: Identifying Disassemble Order Of Transmission (3 Of 5)
Courtesy of FORD MOTOR CO.

Fig 5: Identifying Disassemble Order Of Transmission (4 Of 5)
Courtesy of FORD MOTOR CO.

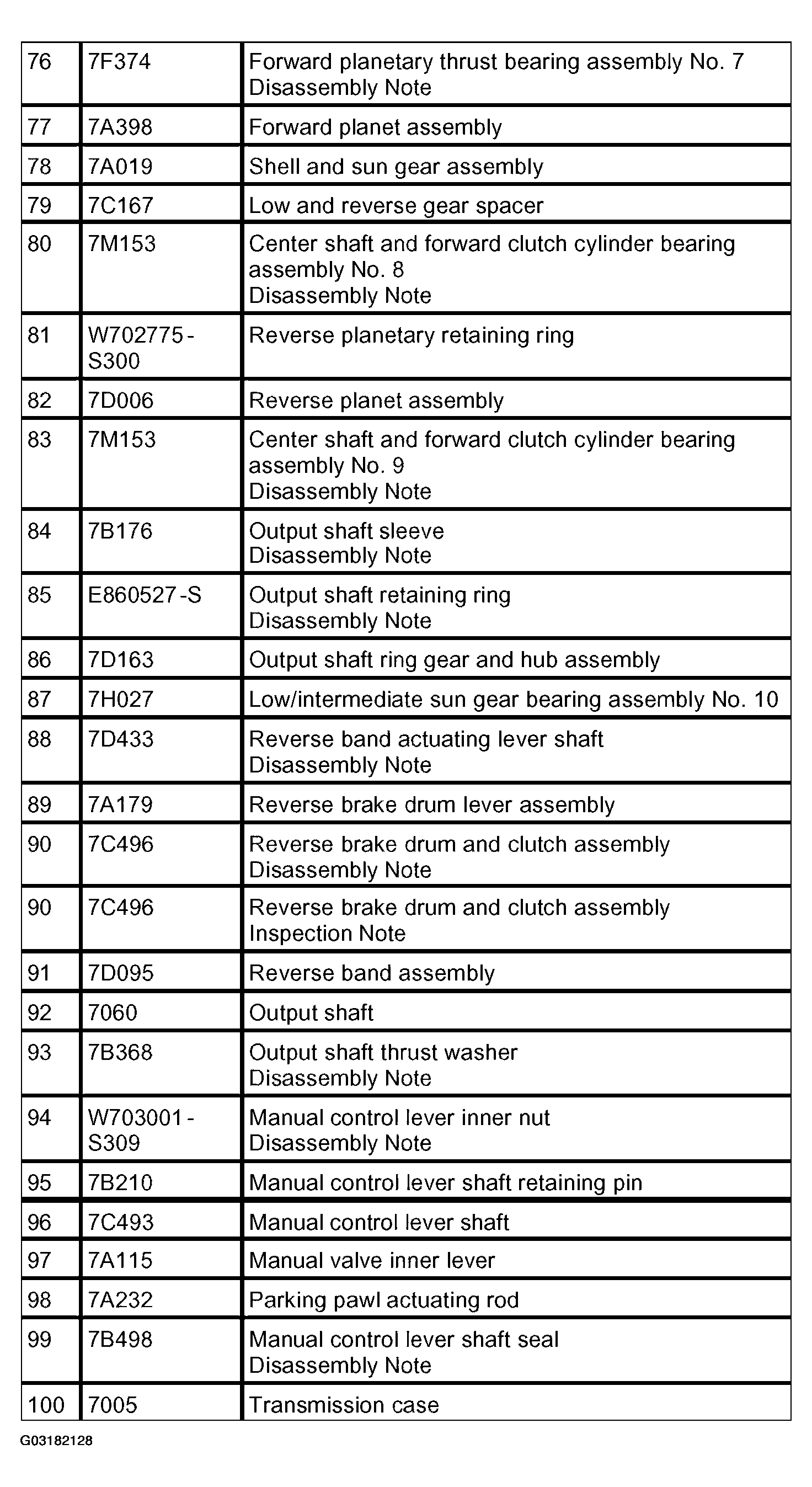

Fig 6: Identifying Disassemble Order Of Transmission (5 Of 5)
Courtesy of FORD MOTOR CO.
