Instrument Panel Registers: Notes
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

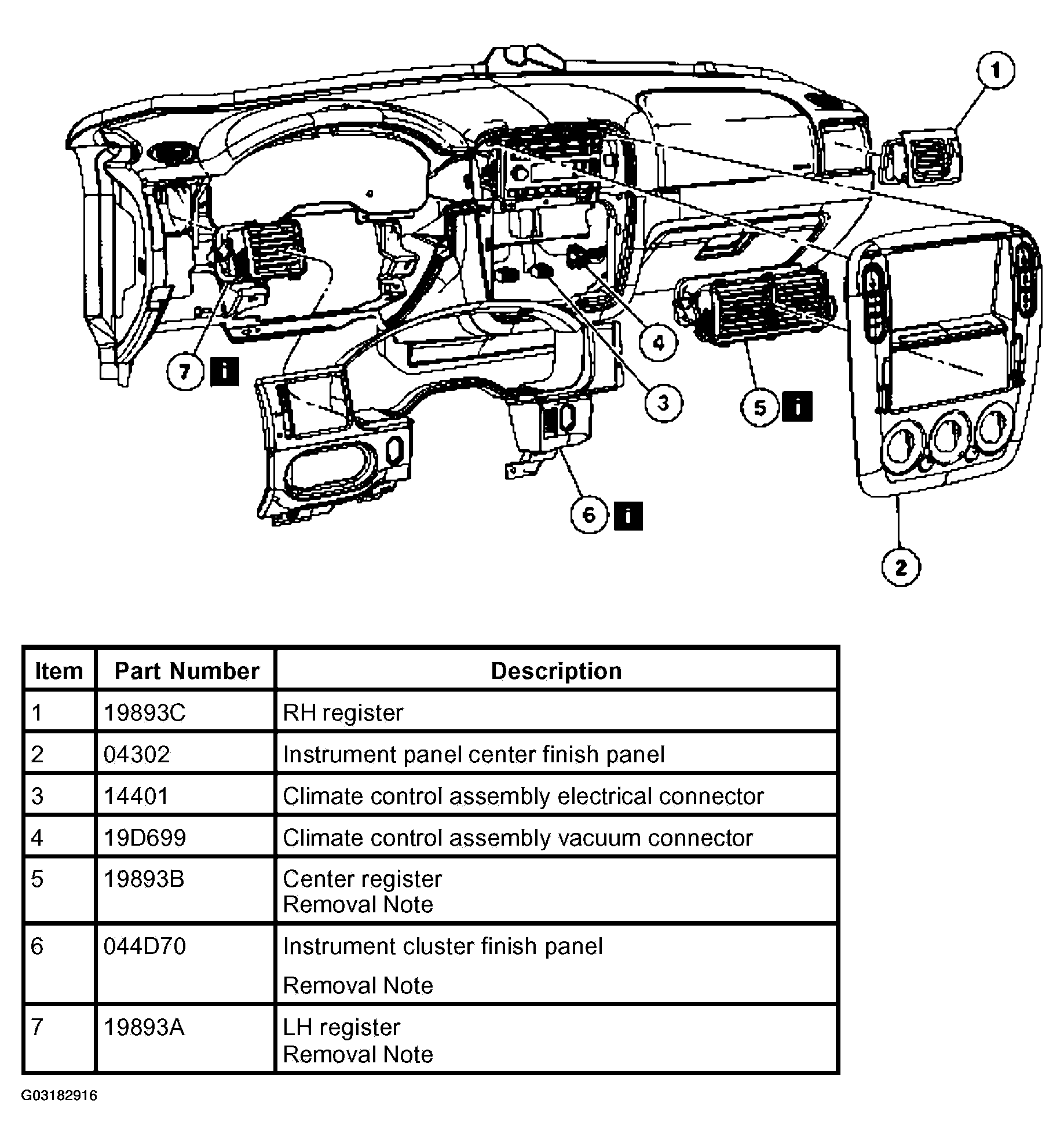

- Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
INSTRUMENT PANEL REGISTERS PARTS REMOVAL STEPS
| Part |
Steps |
| RH register |
1 |
| Center registers |
2-5 |
| LH register |
6-7 |
Courtesy of FORD MOTOR CO.
- To install, reverse the removal procedure.
