Daytime Running Lamp (DRL) Module

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in the following illustration and table.

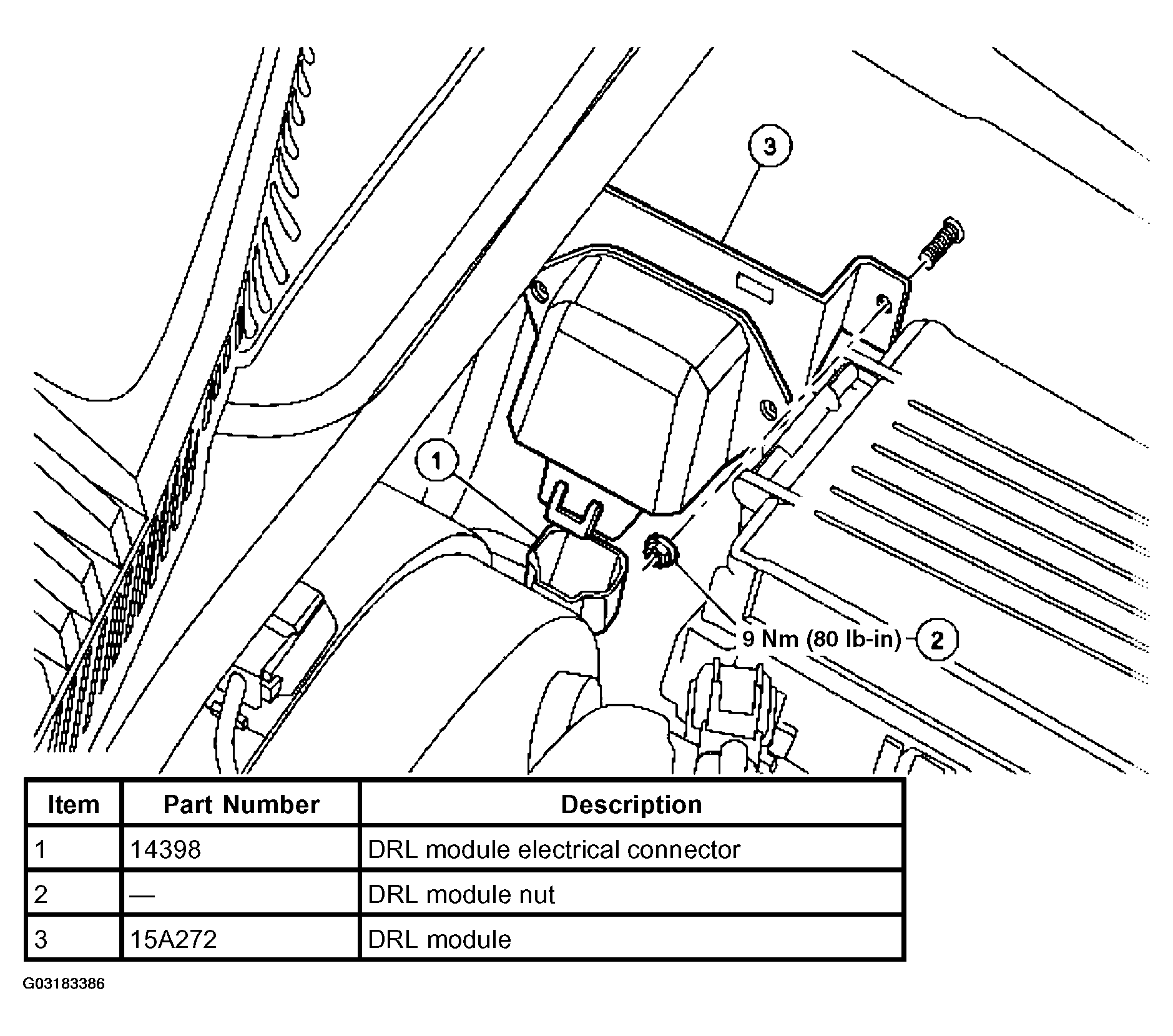

    Fig 1: Identifying Daytime Running Lamp Module
    G03183386Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
