Driver Seat: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.

WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.

WARNING: To reduce the risk of personal injury, do not use any memory saver devices.

NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.

NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

NOTE: Driver seat is shown, passenger seat is similar.

Position the seat to gain access to all four mounting bolts.
Depower the SRS. For additional information, refer to DISABLING SYSTEM .
Remove the parts in the order listed in the following illustration and table.

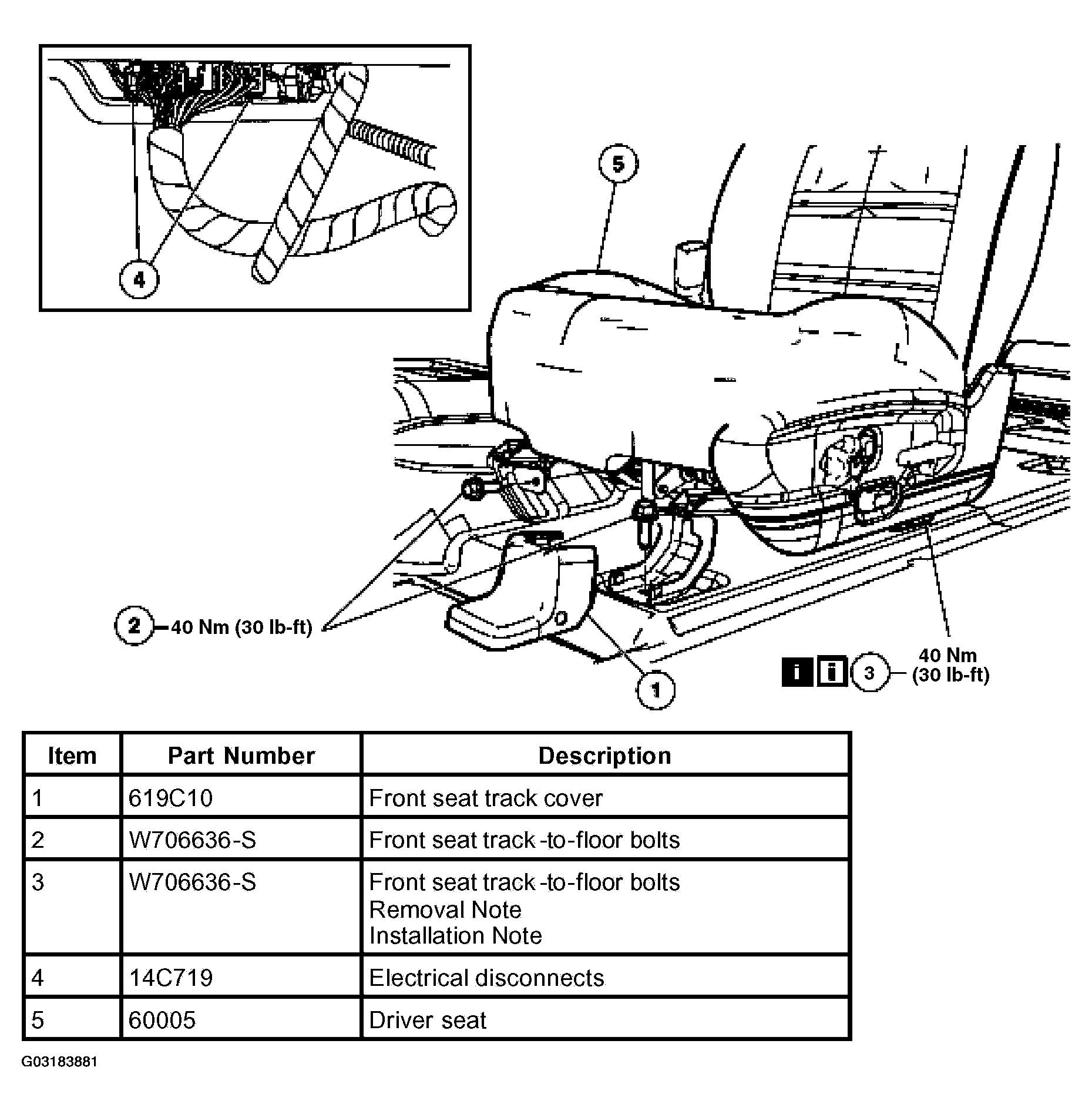

Fig 1: Removing Driver Seat
Courtesy of FORD MOTOR CO.

NOTE: Some component connectors may not exist due to vehicle options.

NOTE: Make sure the battery negative cable is still disconnected before continuing with the installation portion of this procedure.

To install, reverse the removal procedure.
Repower the SRS. For additional information, refer to ACTIVATING SYSTEM .
Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
