Vehicle Security Module C3203f

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

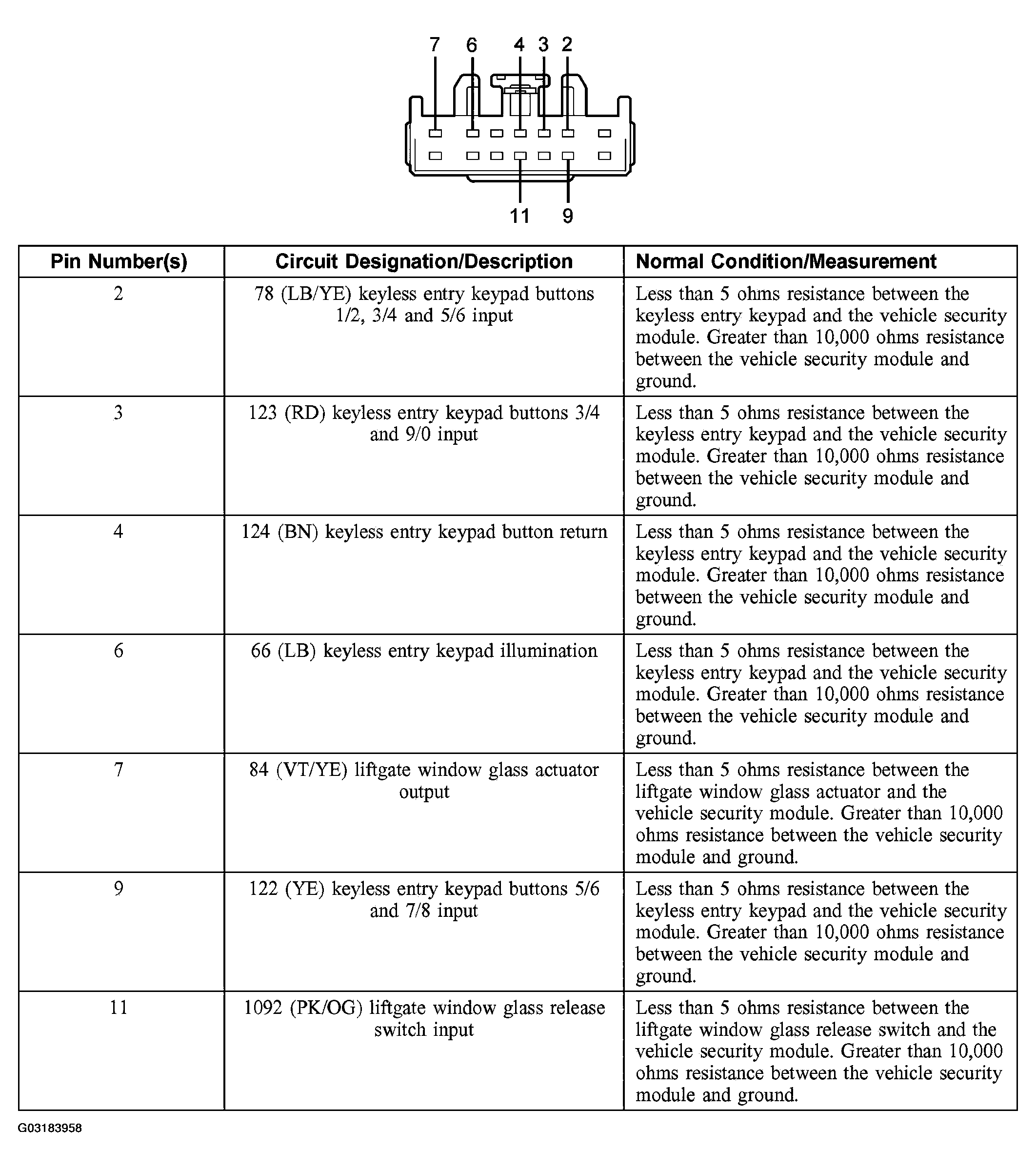

Fig 1: Identifying Connector Terminal (Vehicle Security Module C3203F)
G03183958Courtesy of FORD MOTOR CO.
