Door Lock Control Switch: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH side shown, RH side similar.
  1. Remove the parts in the order indicated in the following illustration and table.

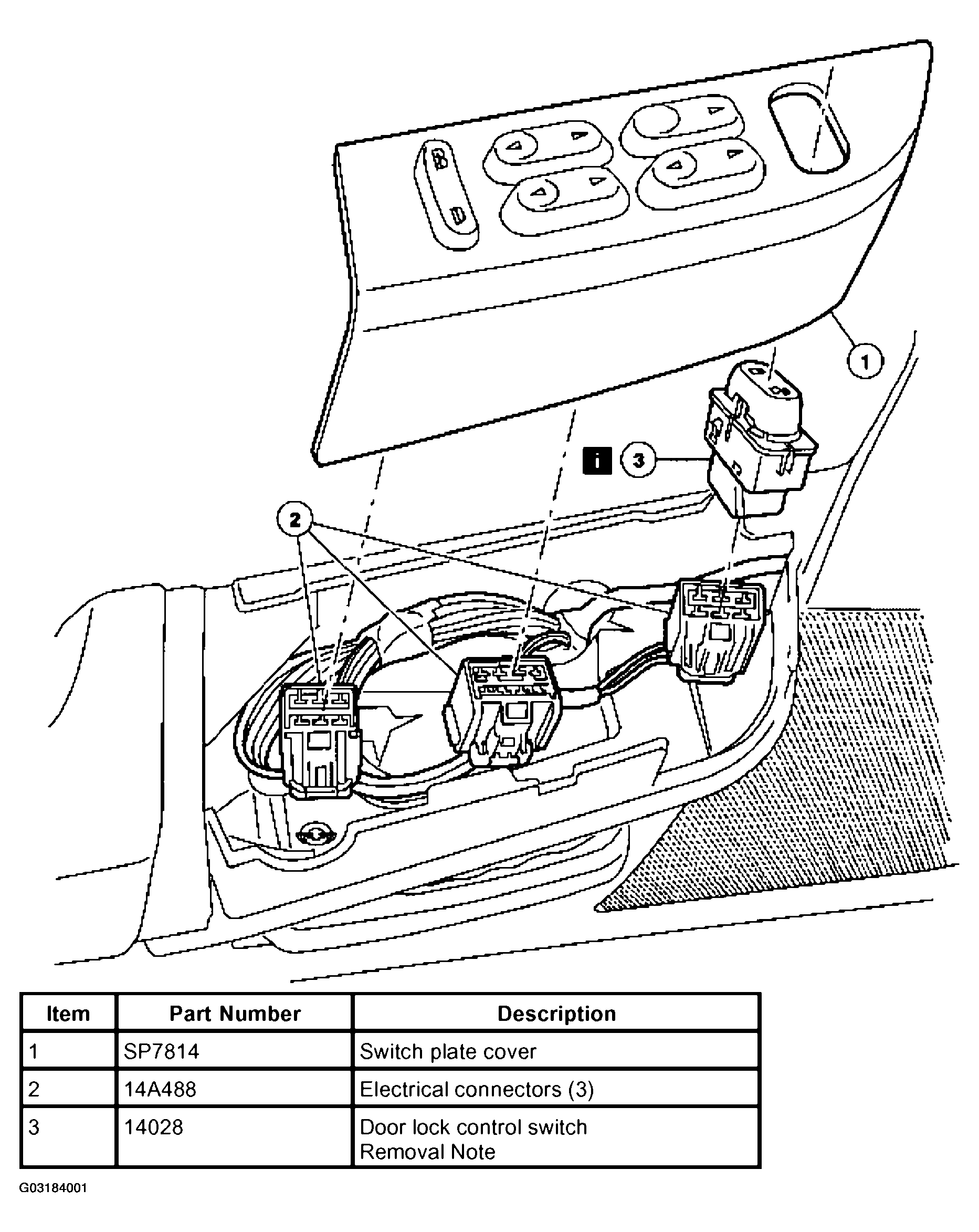

    Fig 1: Removing Door Lock Control Switch
    G03184001Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
