Keyless Entry Keypad: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

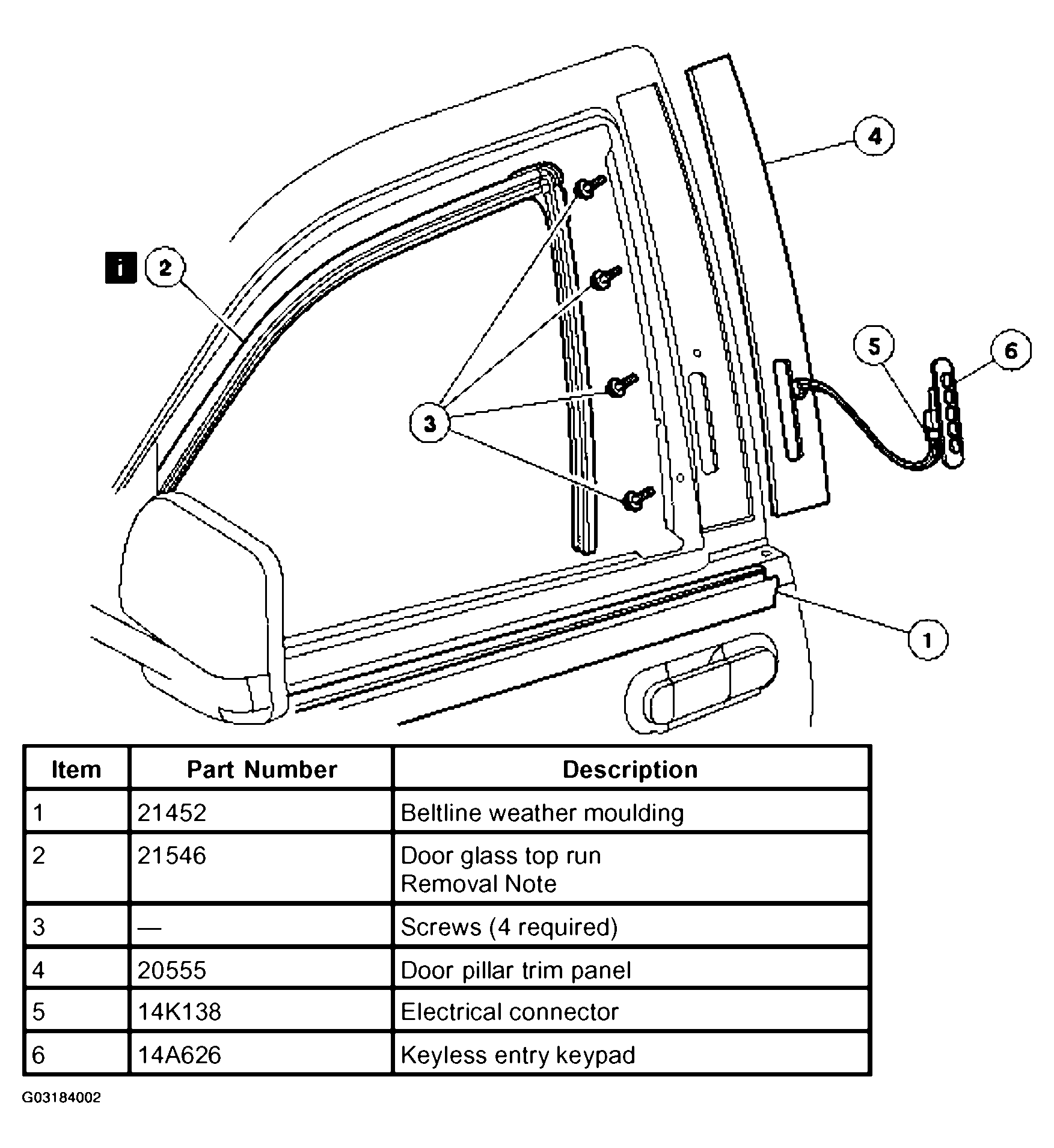

    Fig 1: Removing Bolts Of Keyless Entry Keypad
    G03184002Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
