Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
The ABS module mounts to the HCU on a bracket on L/H inner fender well in engine compartment.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Position the radiator coolant reservoir aside.
1. Remove the bolts.

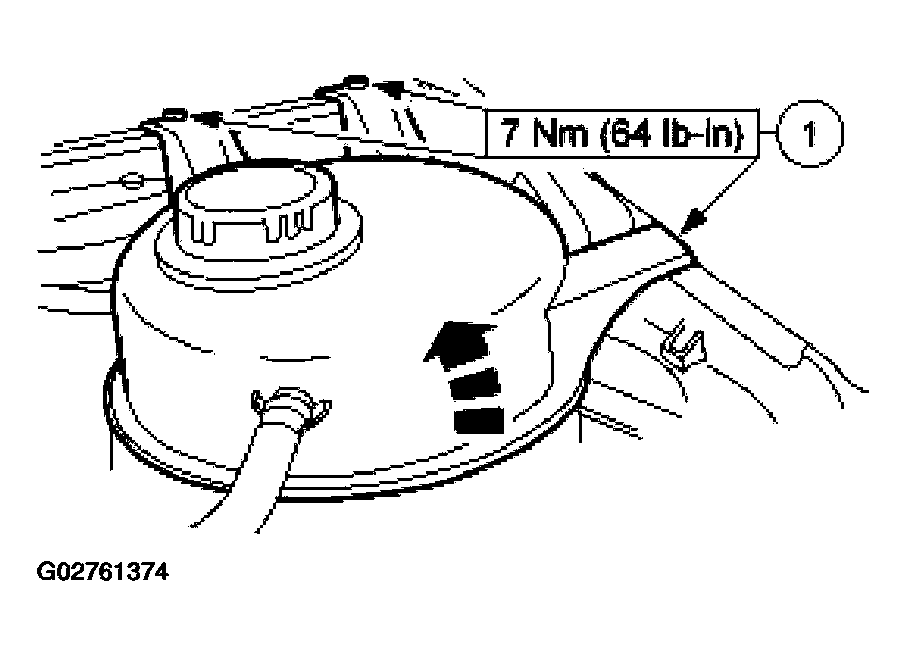

Fig 1: Radiator Coolant Reservoir Bolt Torque Specifications
Courtesy of FORD MOTOR CO.
Remove the four screws and position the ABS module to gain access to the electrical connector.

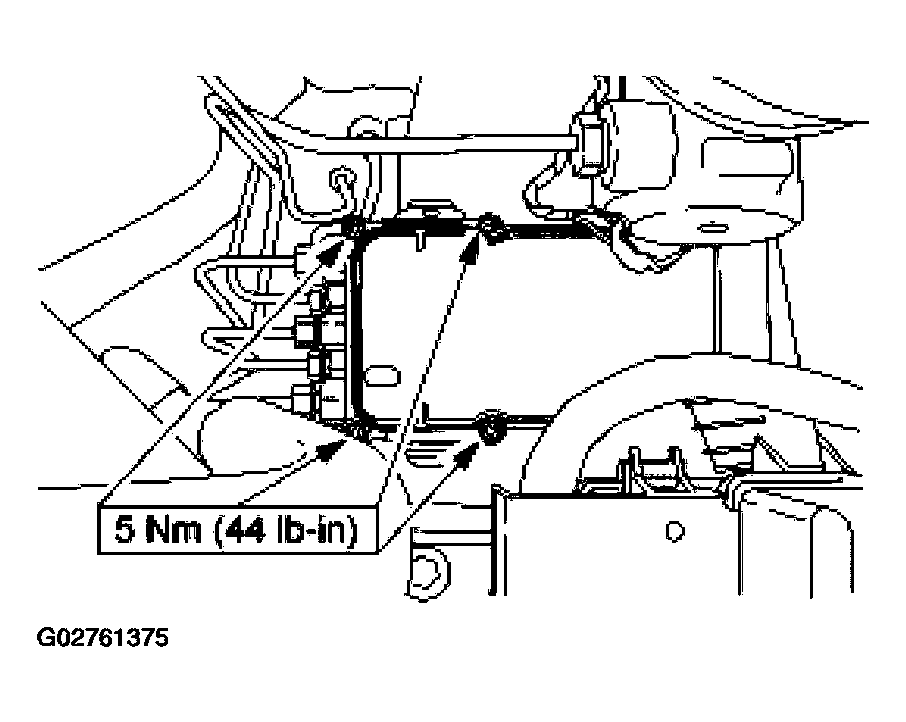

Fig 2: ABS Module Screw Torque Specifications
Courtesy of FORD MOTOR CO.
Disconnect the ABS module electrical connector.
1. Release the lock tab.
2. Pull the connector from the module.

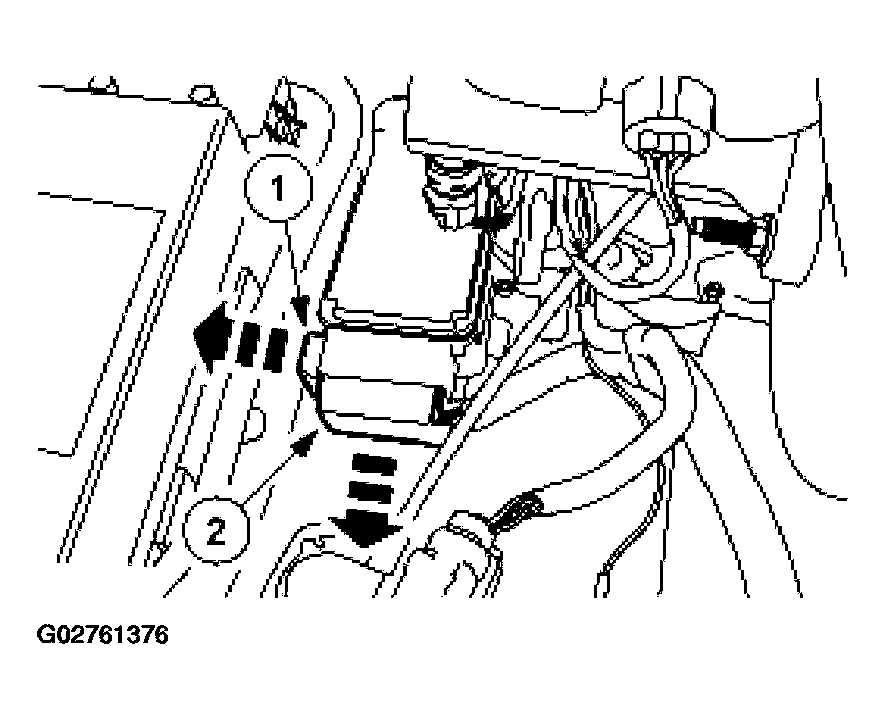

Fig 3: Disconnecting ABS Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the ABS module.
1. Lift the ABS module slightly and disconnect the ABS pump motor electrical connector.
2. Remove the ABS module from the vehicle.

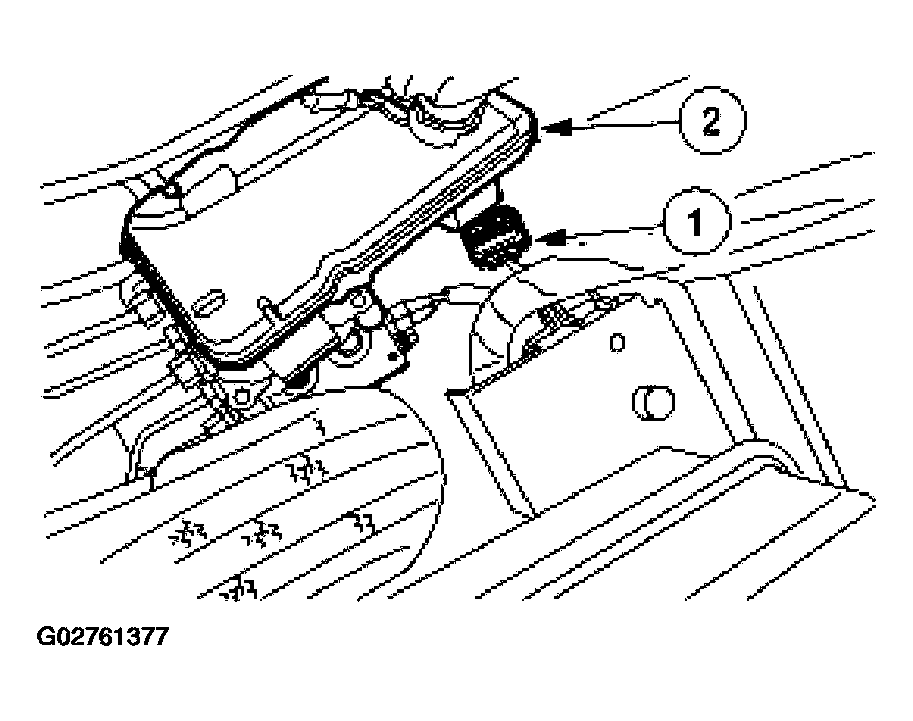

Fig 4: Removing ABS Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
