Front Wheel Speed Sensor Ring: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Use an appropriate size cylinder and press to install the front wheel speed sensor ring.
CAUTION: The front wheel speed sensor ring must be pressed on straight.

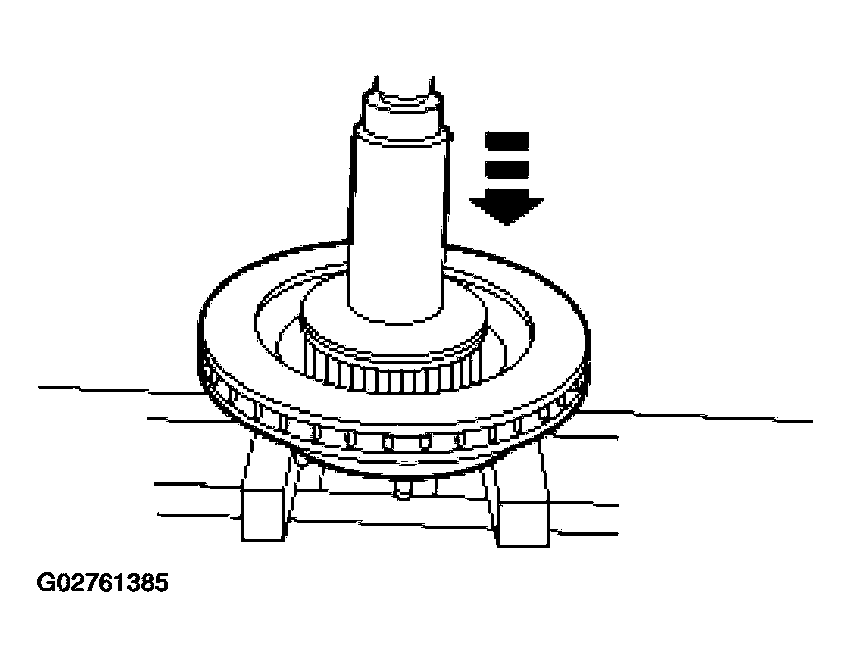

Fig 1: Installing Front Wheel Speed Sensor Ring
Courtesy of FORD MOTOR CO.
Install the front disc brake rotor. For additional information, refer to DISC & DRUM .
