Engine Intake Components

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

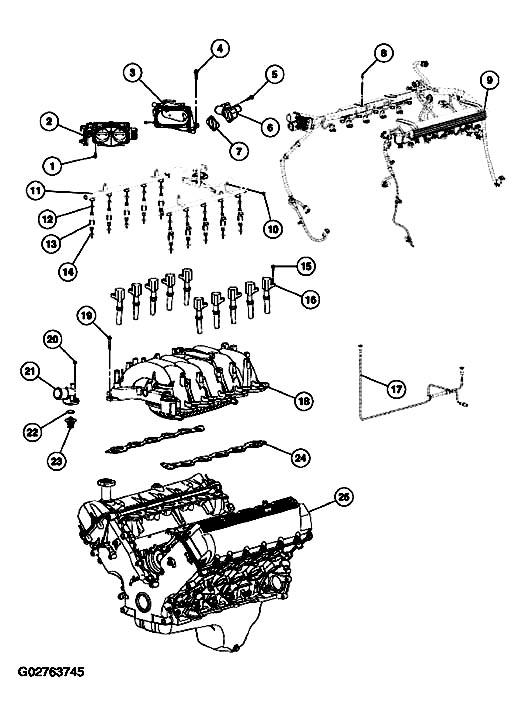

Fig 1: Identifying Engine Intake Components - Exploded View
G02763745Courtesy of FORD MOTOR CO.

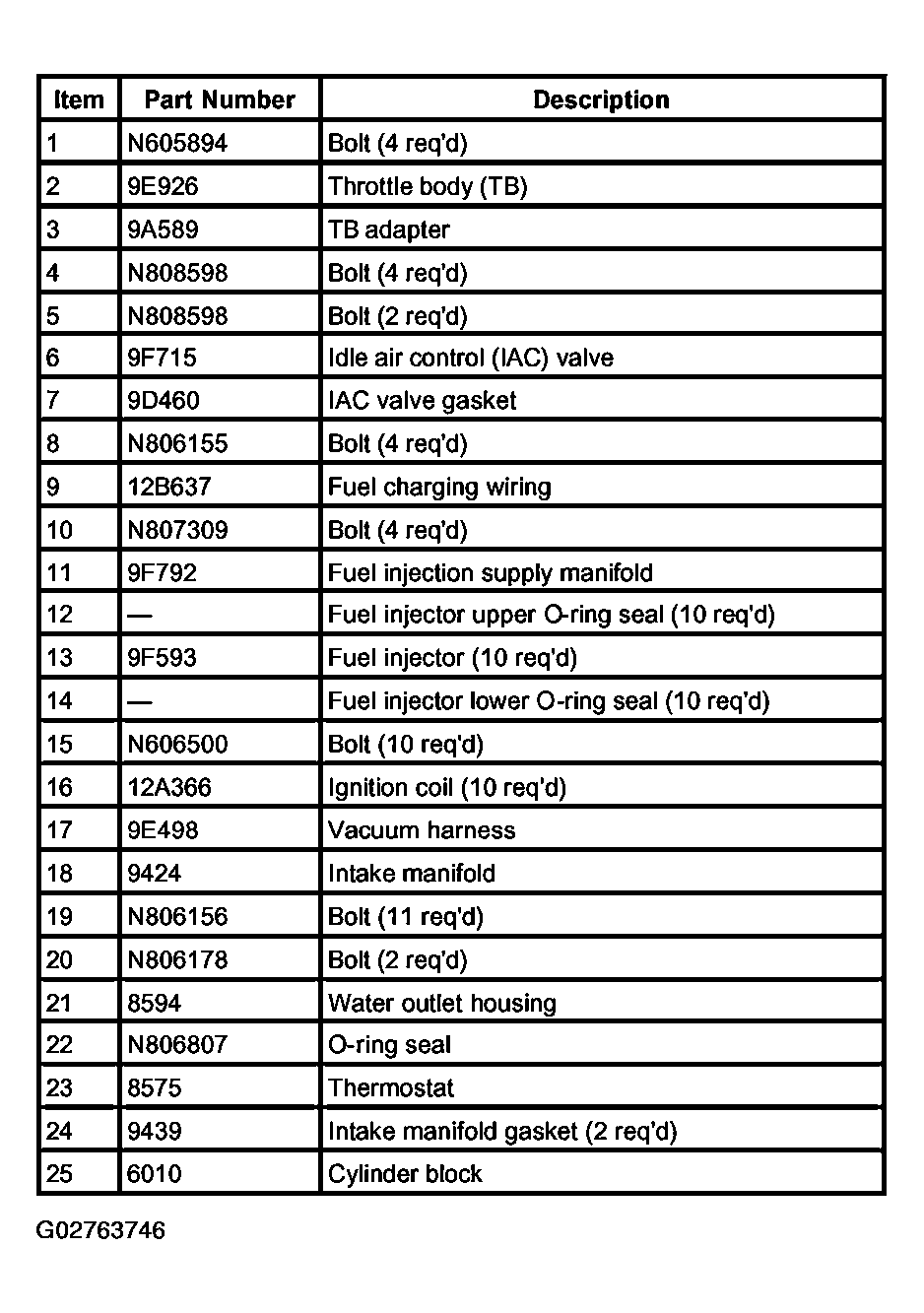

Fig 2: Identifying Engine Intake Components - Item Description (Items 1-25)
G02763746Courtesy of FORD MOTOR CO.
