Intake Manifold Assembly: Assembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Position a new lower intake manifold gasket and the upper intake manifold on the lower intake manifold and loosely install the bolts.

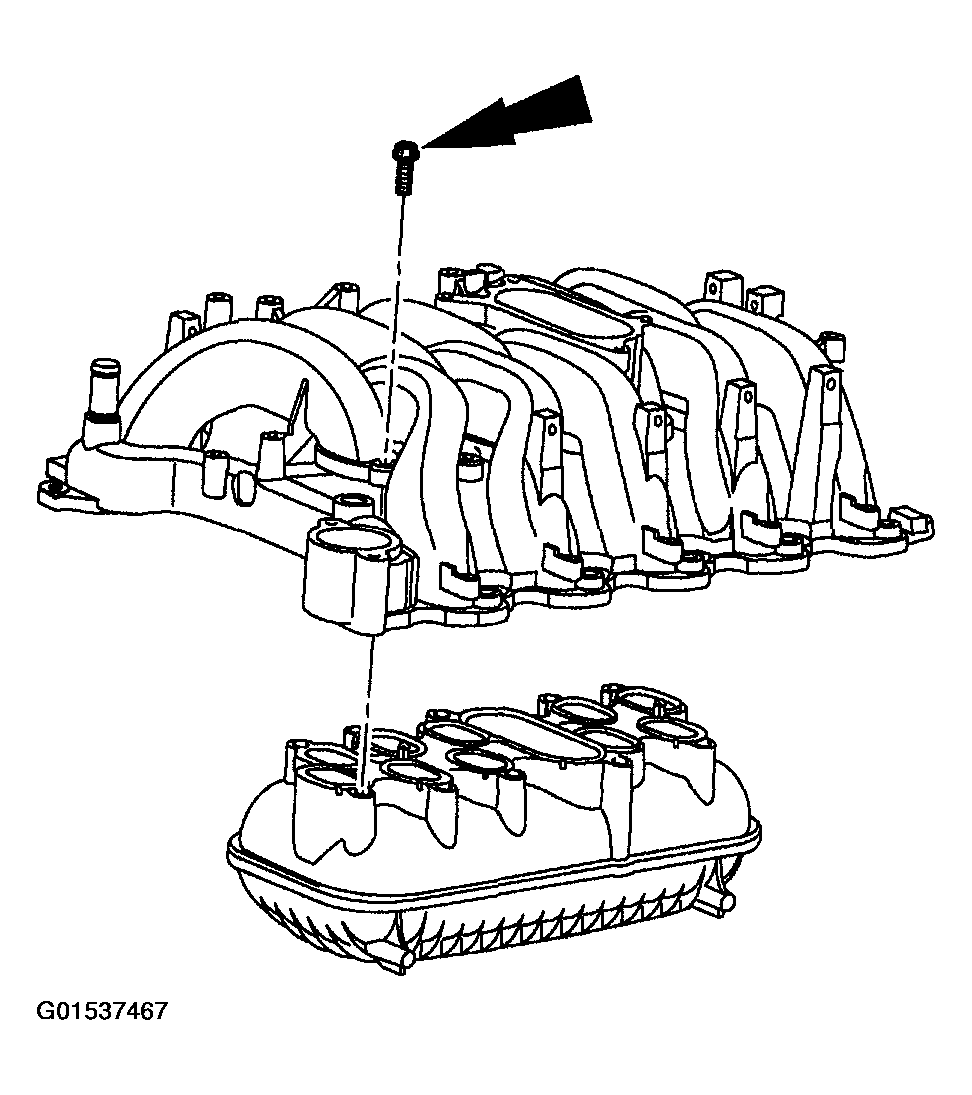

Fig 1: Positioning A New Lower Intake Manifold Gasket And Upper Intake Manifold On Lower Intake Manifold
Courtesy of FORD MOTOR CO.
Tighten the bolts in two stages, using the sequence shown.
- Stage 1: Tighten to 2 Nm (18 lb-in).
- Stage 2: Tighten to 10 Nm (89 lb-in).

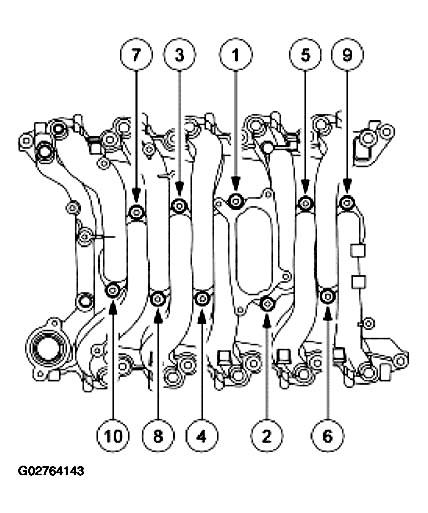

Fig 2: Intake Manifold Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.
Lubricate the new O-ring seals with engine oil.

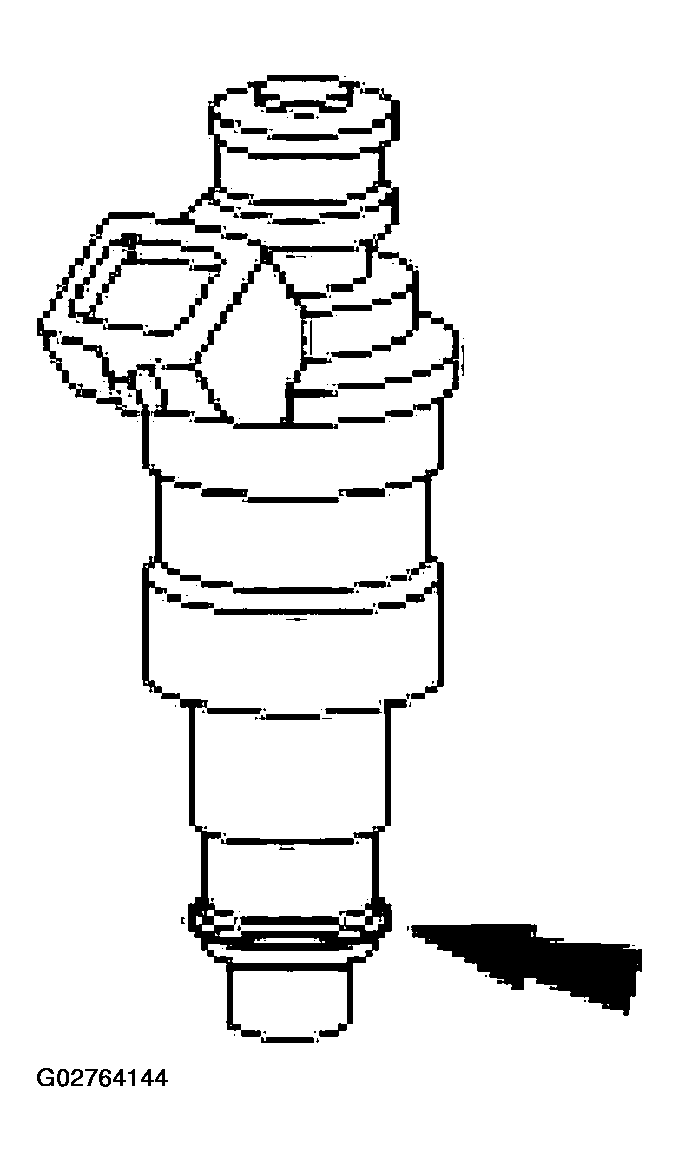

Fig 3: Lubricating New O-Ring Seals With Engine Oil
Courtesy of FORD MOTOR CO.
Install the fuel injector supply manifold.
- Position the fuel injection supply manifold.
- Install the four bolts.
Fig 4: Installing Fuel Injection Supply Manifold
Courtesy of FORD MOTOR CO.
Install the engine coolant temperature (ECT) sensor.

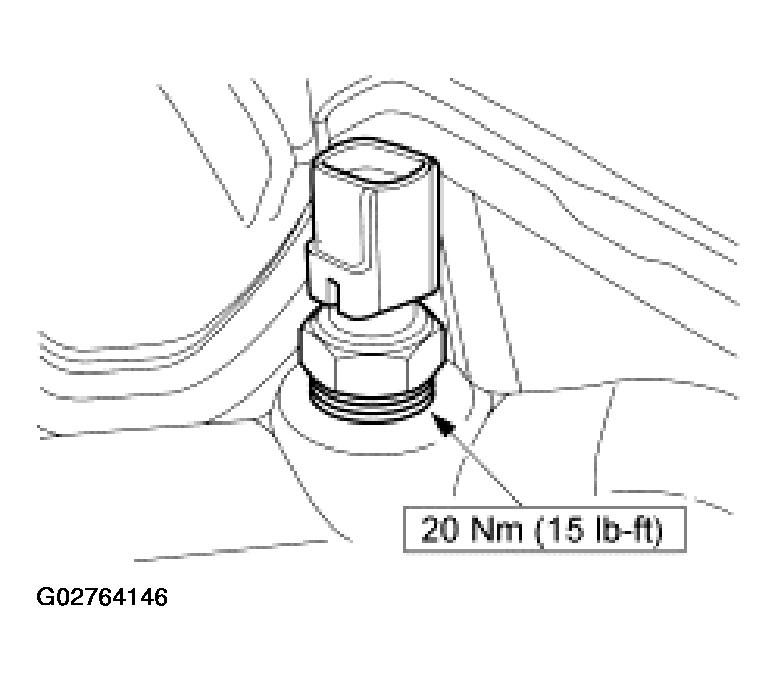

Fig 5: Installing Engine Coolant Temperature (ECT) Sensor
Courtesy of FORD MOTOR CO.
