Intake Manifold Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine coolant temperature (ECT) sensor.

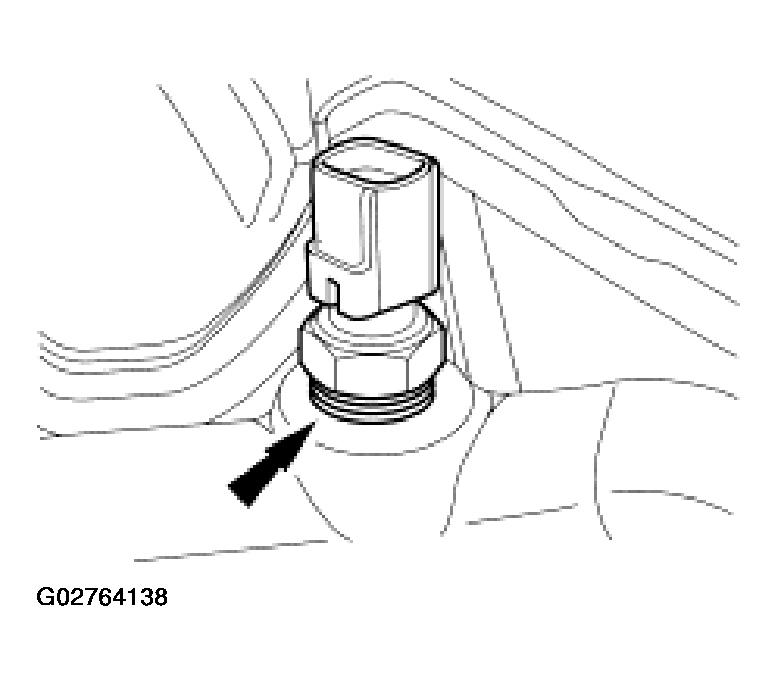

Fig 1: Removing Engine Coolant Temperature (ECT) Sensor
Courtesy of FORD MOTOR CO.
Remove the fuel injection supply manifold.
- Remove the four bolts.
- Remove the fuel injection supply manifold and injectors as an assembly.

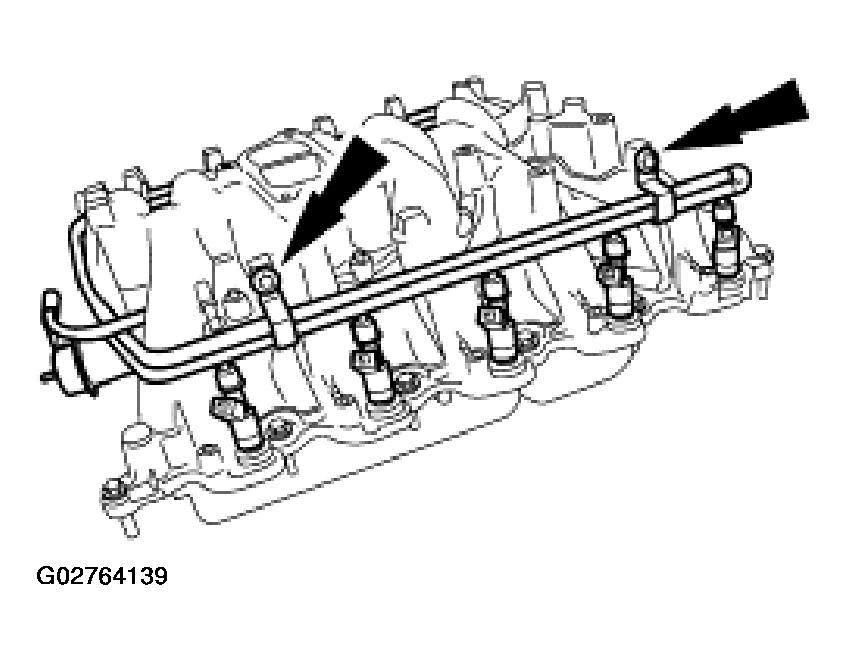

Fig 2: Removing Fuel Injection Supply Manifold And Injectors As An Assembly
Courtesy of FORD MOTOR CO.
Remove and discard the lower O-ring seal from each fuel injector.

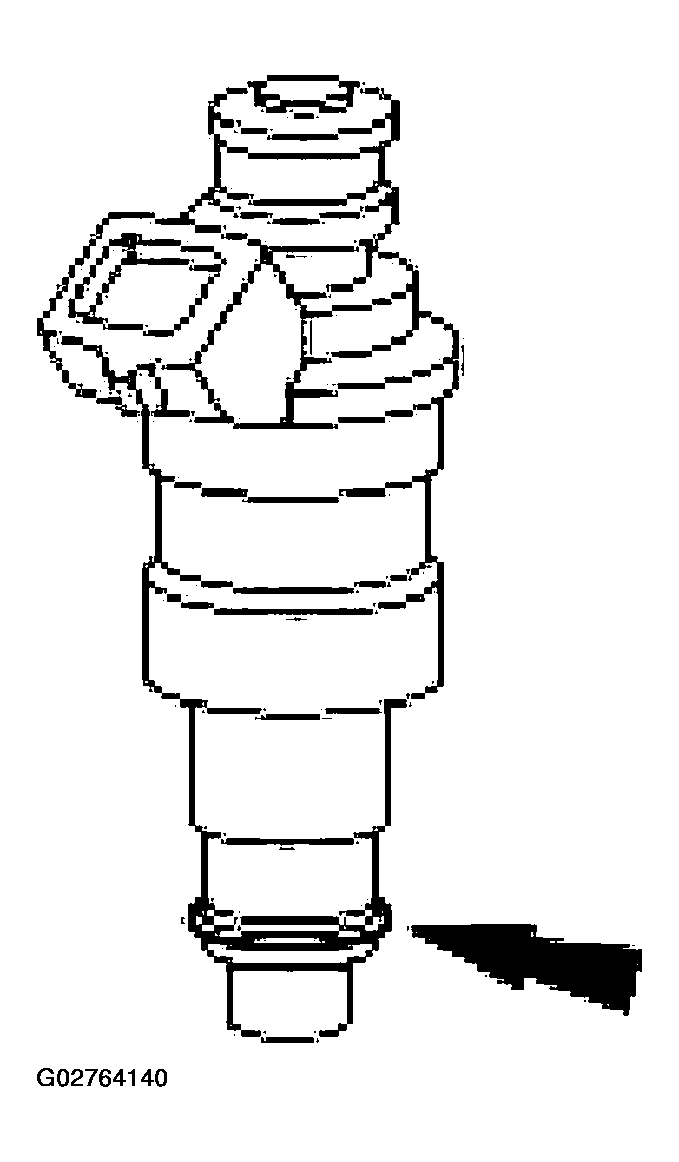

Fig 3: Removing And Discard Lower O-Ring Seal From Each Fuel Injector
Courtesy of FORD MOTOR CO.
Separate the upper and lower intake manifolds.
- Remove the bolts.
- Discard the intake manifold gasket.

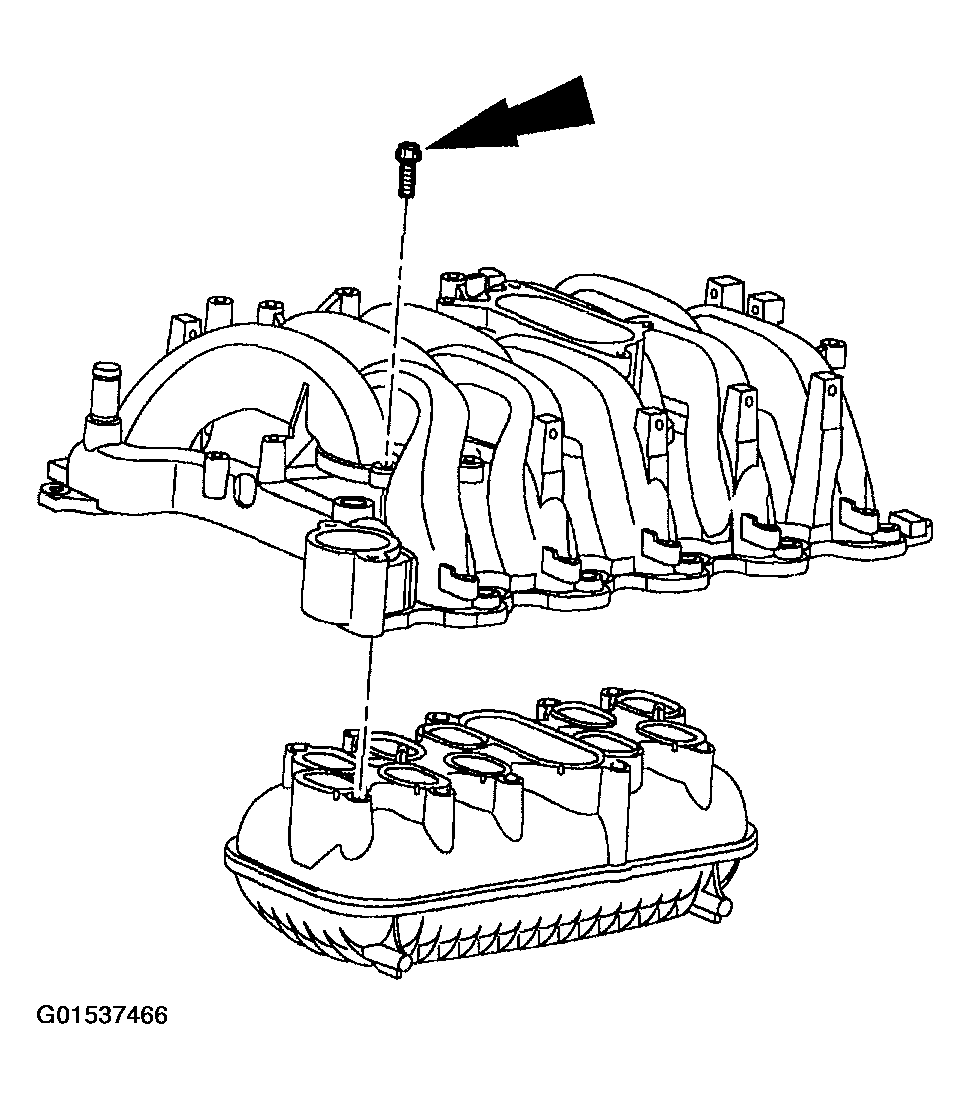

Fig 4: Discarding Intake Manifold Gasket
Courtesy of FORD MOTOR CO.
Using a metal surface cleaner, clean and inspect the upper and lower manifold internal passengers and mating surfaces.
Allow the upper and lower intake manifolds to dry completely.
