Engine Support Insulators: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
  4. Remove the air cleaner and the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  5. Remove the generator. For additional information, refer to GENERATOR & REGULATOR .
  6. Remove the cooling fan shroud. For additional information, refer to ENGINE COOLING .
  7. If the RH engine mount is to be serviced, remove the starter motor. For additional information, refer to STARTERS - EXCEPT DIESEL .

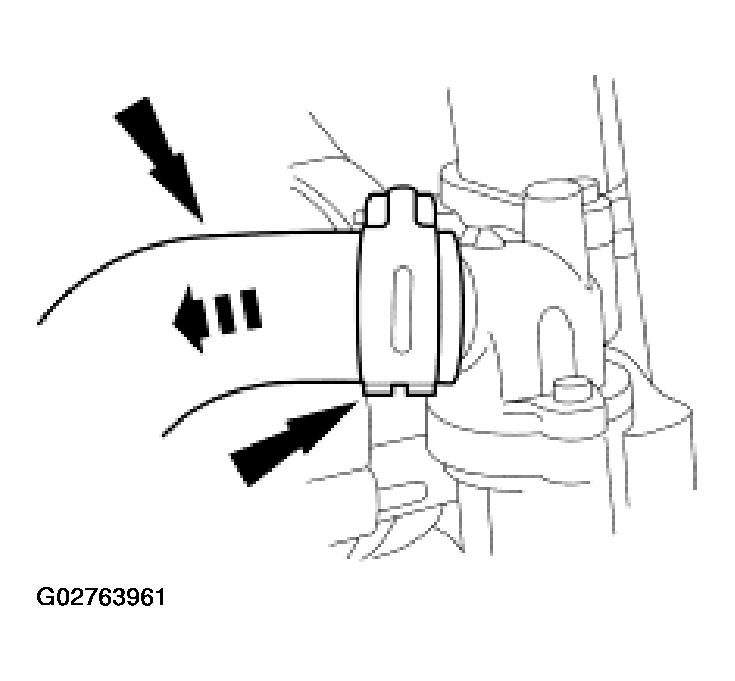

  8. Position the hose clamp back and disconnect the coolant hose.
    Fig 1: Disconnecting Coolant Hose
    G02763961Courtesy of FORD MOTOR CO.
  9. Remove the accelerator cable splash shield.
    Fig 2: Removing Accelerator Cable Splash Shield
    G02763962Courtesy of FORD MOTOR CO.
  10. Disconnect the accelerator and speed control cables and remove the return spring.

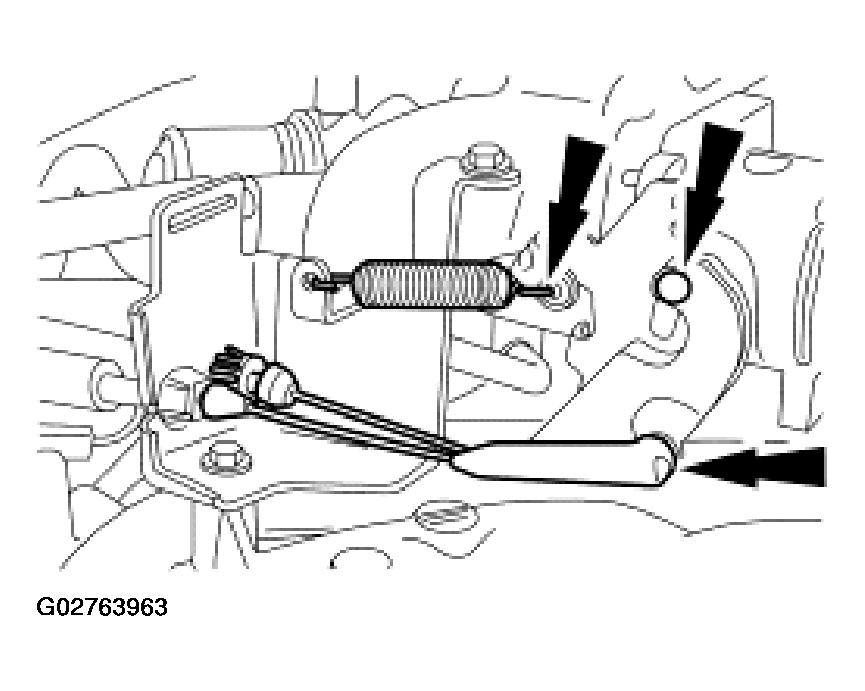

    Fig 3: Disconnecting Accelerator And Speed Control Cables
    G02763963Courtesy of FORD MOTOR CO.
  11. Position the accelerator cable bracket aside.
    • Remove the bolts.
    • Position the bracket and cables aside.

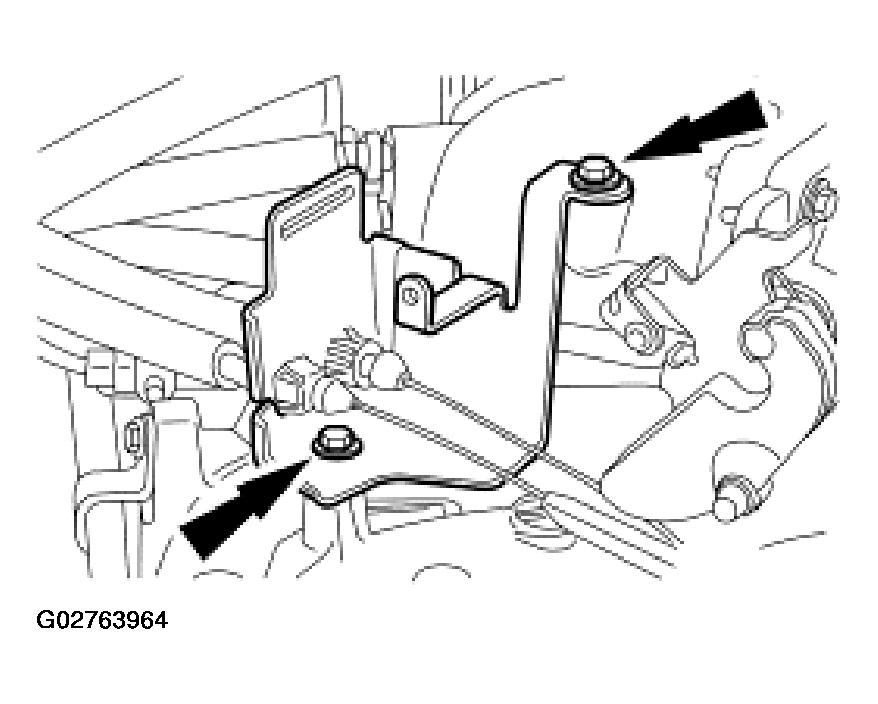

    Fig 4: Positioning Accelerator Cable Bracket Aside
    G02763964Courtesy of FORD MOTOR CO.

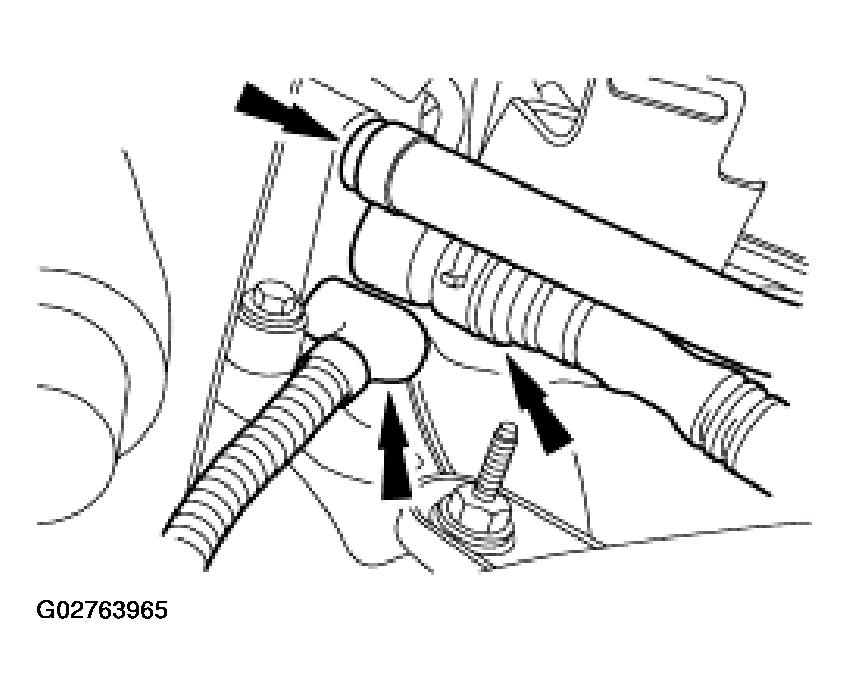

  12. Disconnect the heated positive crankcase valve (PCV) tube and the vacuum hoses.
    Fig 5: Disconnecting Heated Positive Crankcase Valve (PCV) Tube And Vacuum Hoses
    G02763965Courtesy of FORD MOTOR CO.

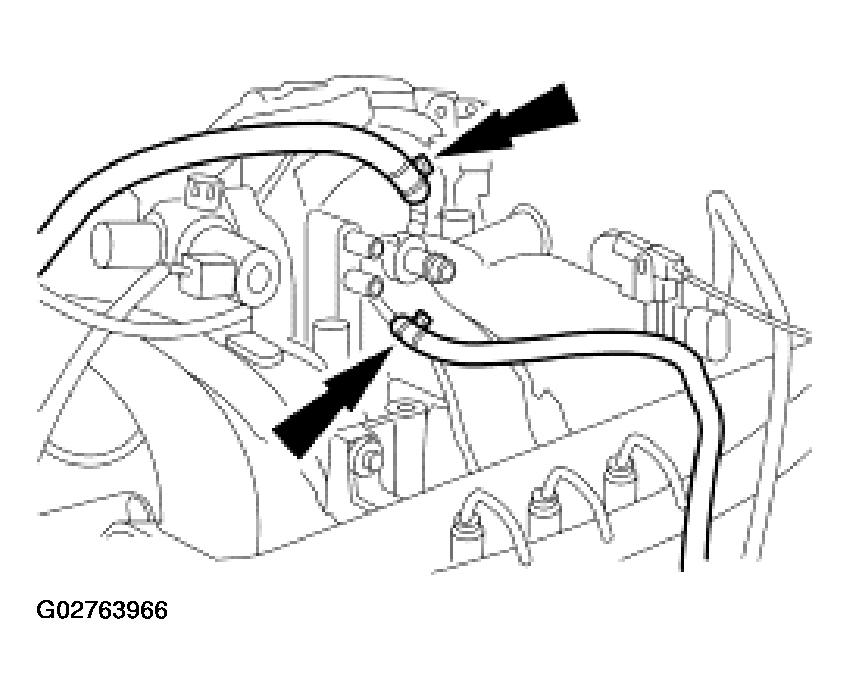

  13. Disconnect the PCV coolant hoses.
    Fig 6: Disconnecting PCV Coolant Hoses
    G02763966Courtesy of FORD MOTOR CO.
  14. Disconnect the vacuum tube.

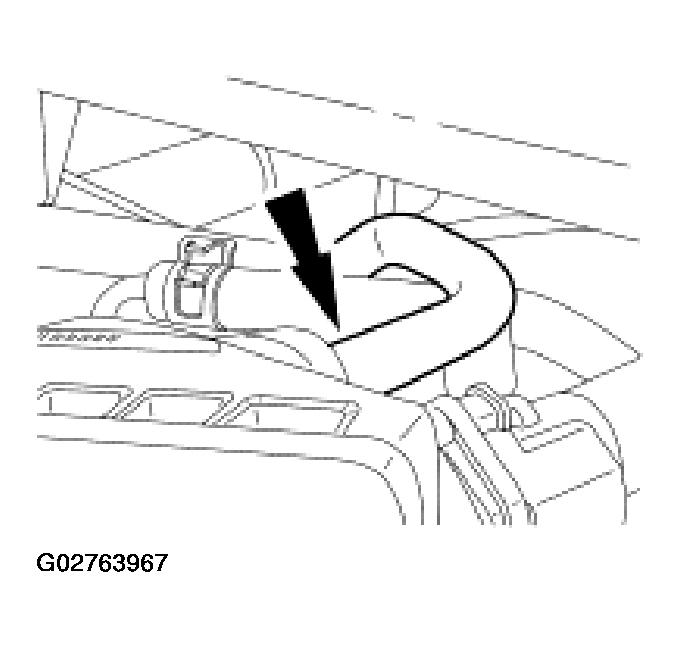

    Fig 7: Disconnecting Vacuum Tube
    G02763967Courtesy of FORD MOTOR CO.

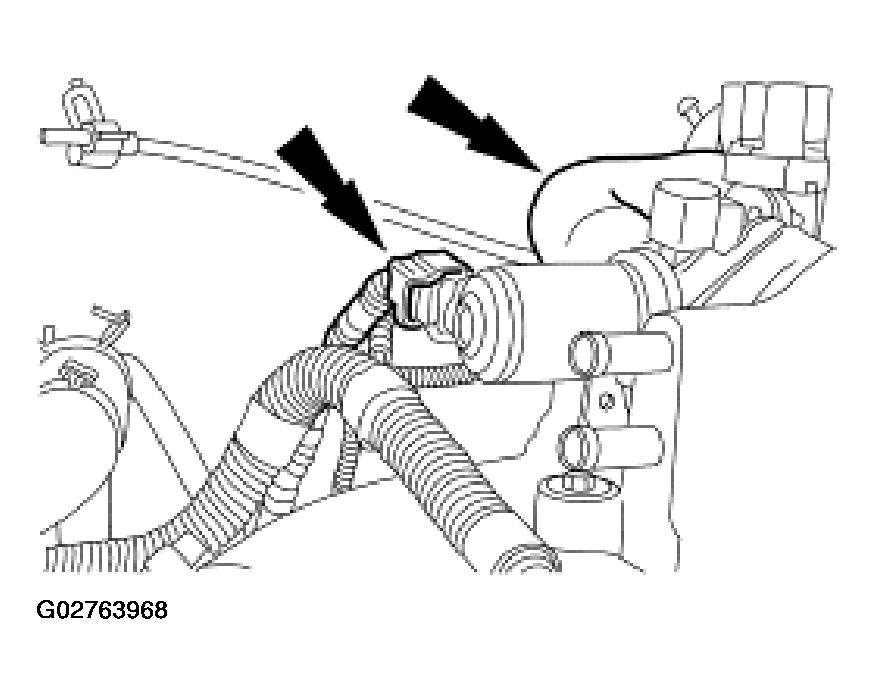

  15. Disconnect the idle air control (IAC) motor electrical connector and remove the bypass hose.
    Fig 8: Disconnecting Idle Air Control (IAC) Motor Electrical Connector
    G02763968Courtesy of FORD MOTOR CO.

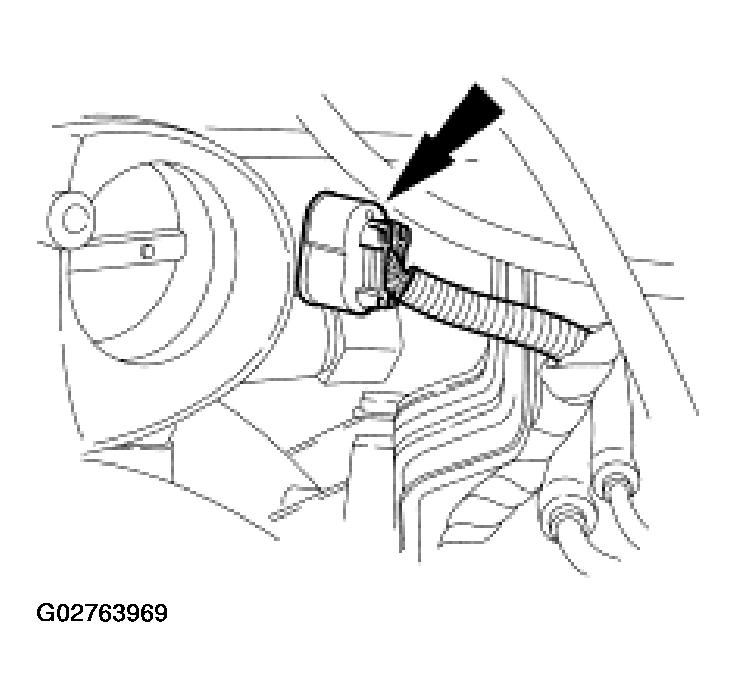

  16. Disconnect the throttle position (TP) sensor electrical connector.
    Fig 9: Disconnecting Throttle Position (TP) Sensor Electrical Connector
    G02763969Courtesy of FORD MOTOR CO.
  17. Remove the throttle body (TB) adapter.
    • Remove the four bolts.
    • Remove the TB adapter.
    • Discard the TB adapter press-in-place gasket.

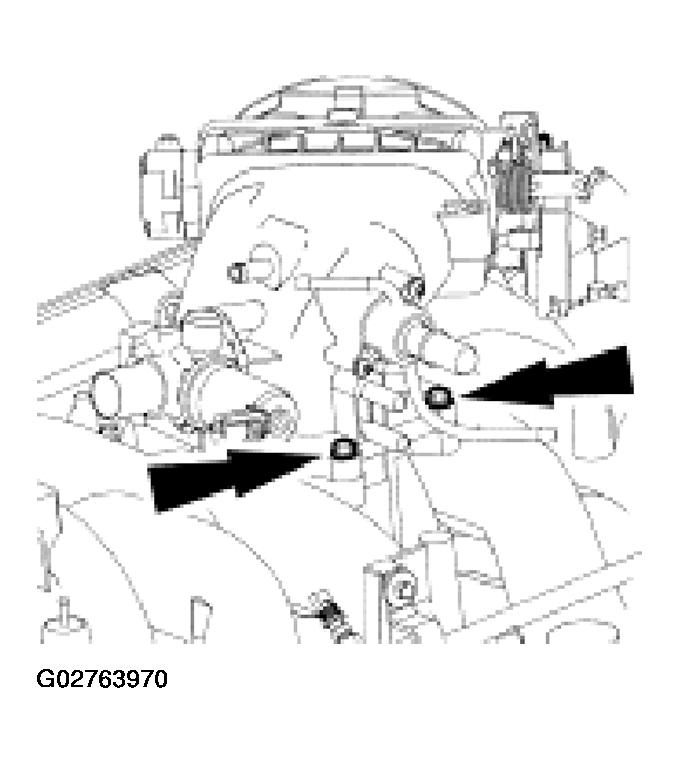

    Fig 10: Removing Throttle Body (TB) Adapter
    G02763970Courtesy of FORD MOTOR CO.

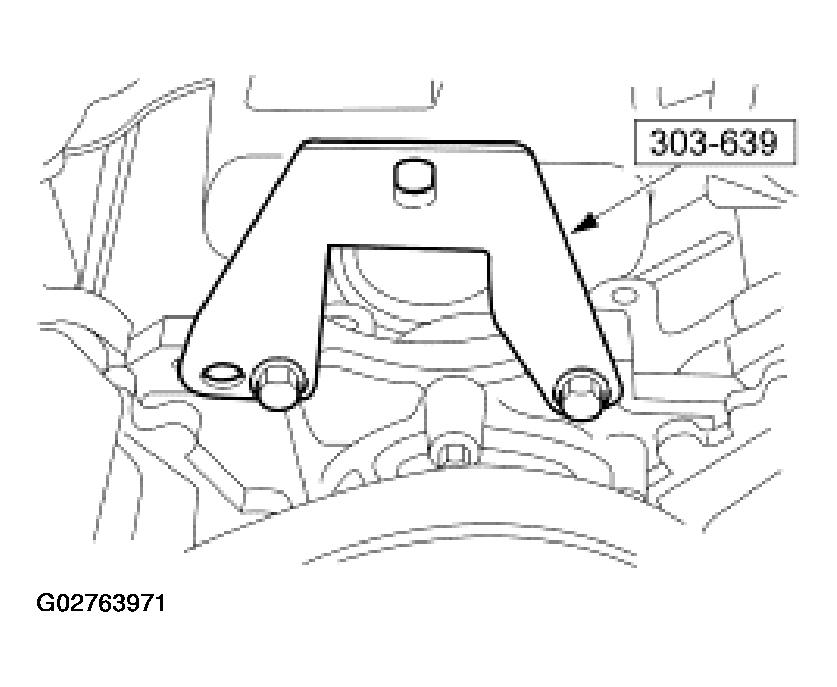

  18. Install the special tool on the engine, using the generator mounting holes.
    Fig 11: Installing Special Tool On Engine
    G02763971Courtesy of FORD MOTOR CO.
  19. Remove the nuts.

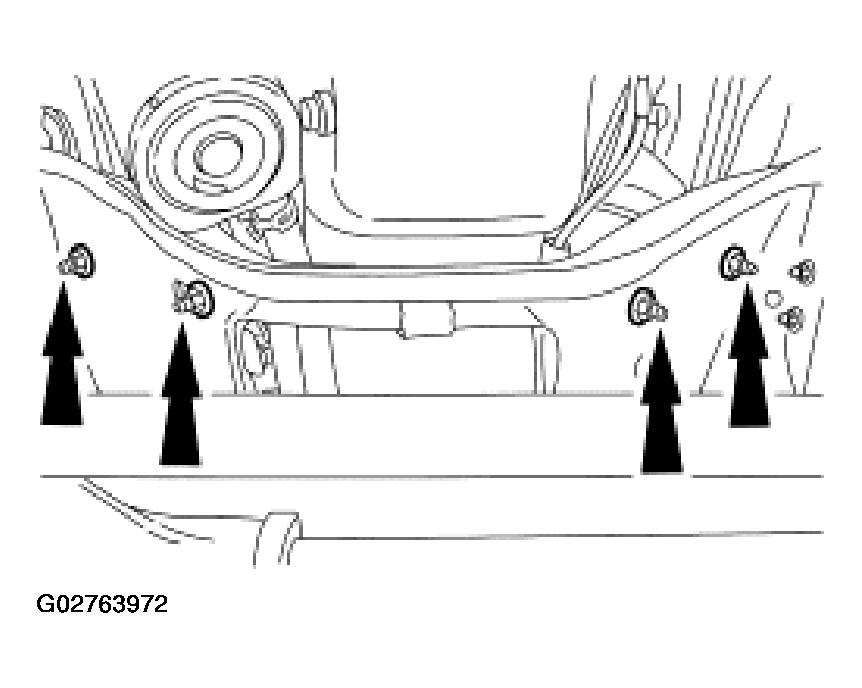

    Fig 12: Removing Nuts
    G02763972Courtesy of FORD MOTOR CO.

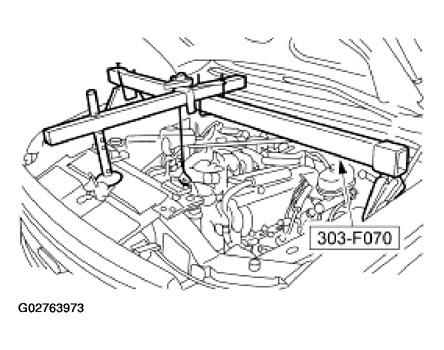

  20. Install the special tool and raise the engine.
    Fig 13: Installing Special Tool And Raise Engine
    G02763973Courtesy of FORD MOTOR CO.

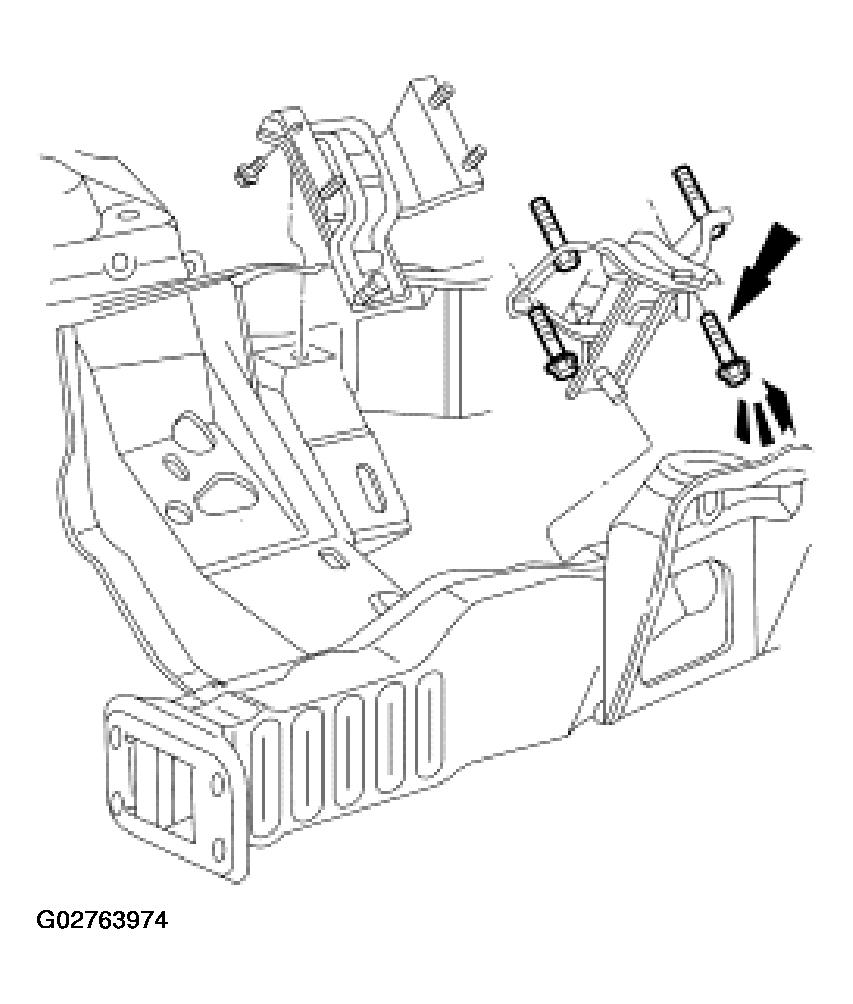

    21. NOTE: The engine is not shown for clarity.
    Fig 14: Removing Bolts And Engine Mounts From Vehicle
    G02763974Courtesy of FORD MOTOR CO.
  21. Remove the bolts and remove the engine mounts from the vehicle.
