In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flexplate and loosely install the bolts.
    • Tighten the bolts in the sequence shown.

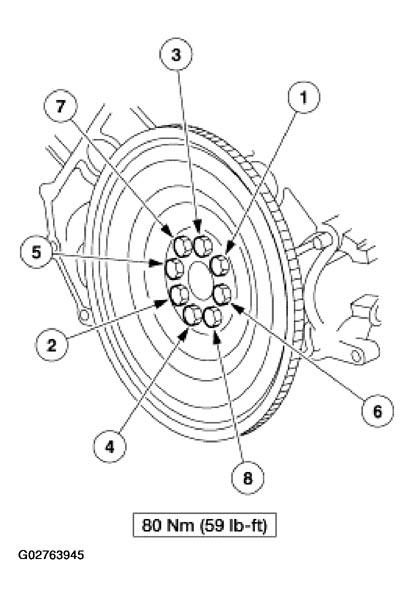

    Fig 1: Flexplate Bolt Tightening Sequence
    G02763945Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R70W/4R75 .
