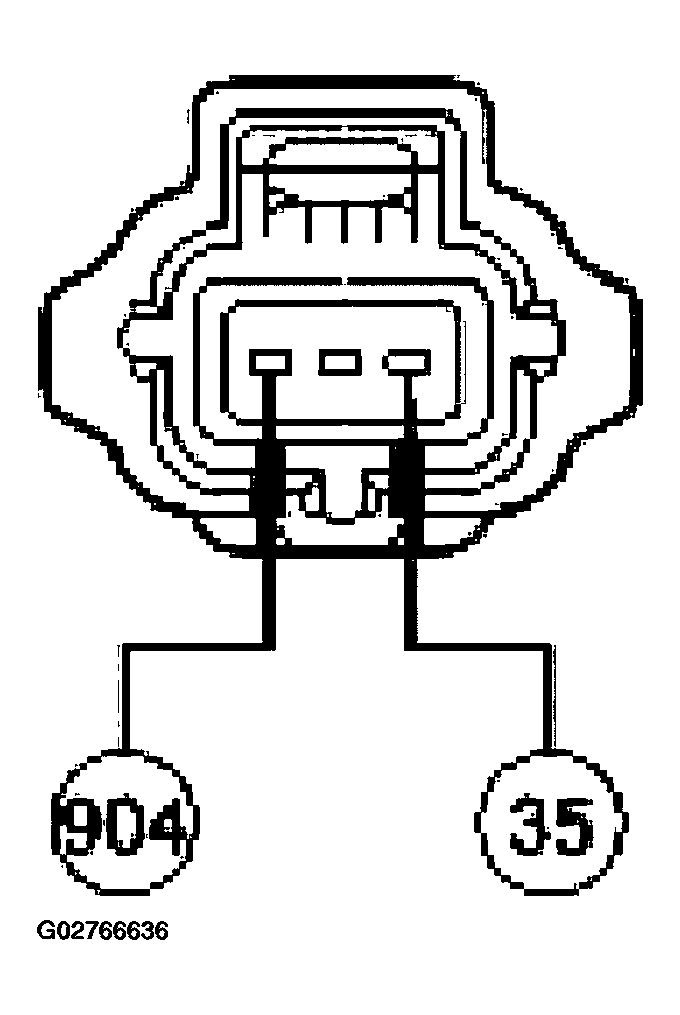

UPPER GENERATOR C102A END VIEW (DIESEL ENGINE)
DIESEL ENGINE CIRCUIT
| Diesel Engine |
| I Circuit 904 (LG/RD) |
| A Circuit 35 (OG/LB) |
Courtesy of FORD MOTOR CO.

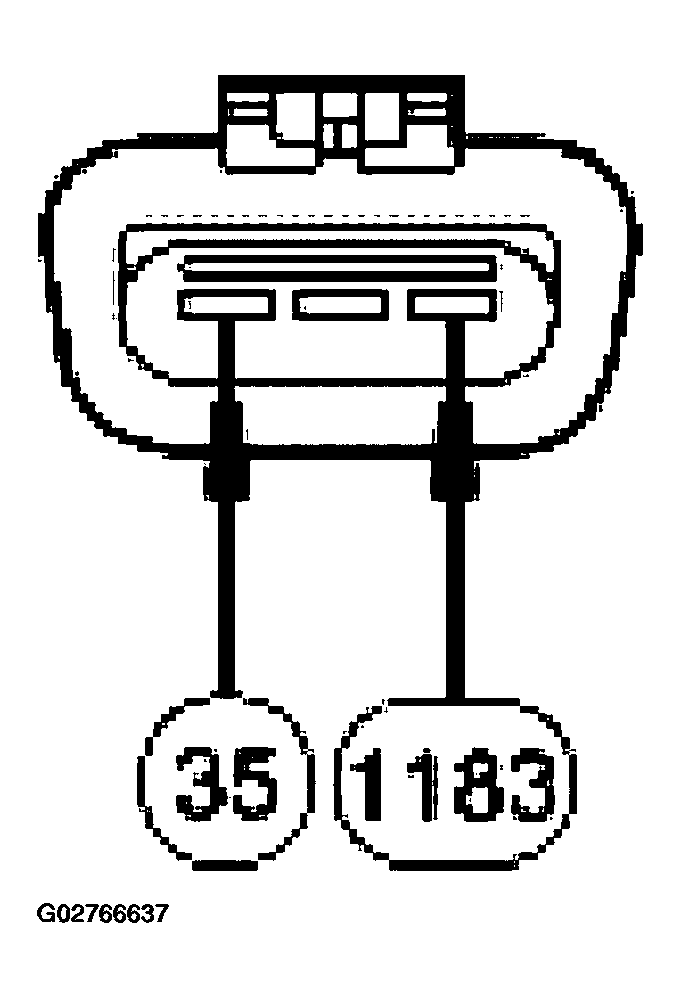

Lower Generator C1251A End View (Diesel Engine)
DIESEL ENGINE CIRCUIT
| Diesel Engine |
| A Circuit 35 (OG/LB) |
| I Circuit 1183 (WH/YE) |
