Principles of Operation: Notes
WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

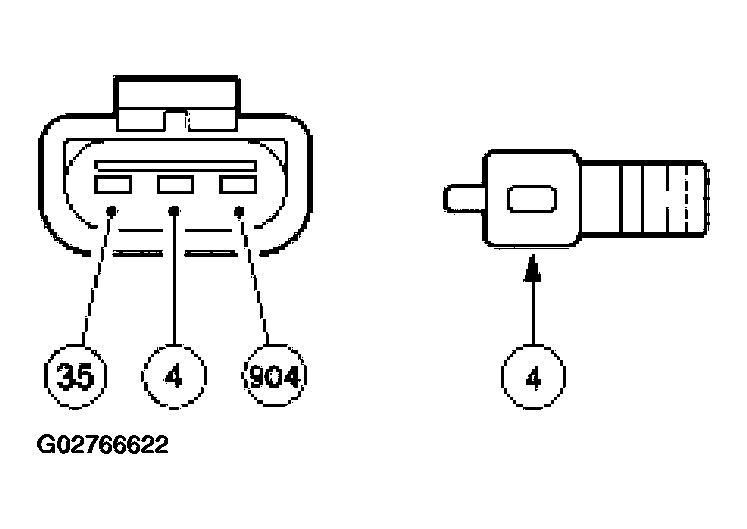

CONNECTOR C102A END VIEW AND C102B SIDE VIEW
Courtesy of FORD MOTOR CO. GASOLINE ENGINE CIRCUIT
| Gasoline Engine |
| A Circuit 35 (OG/LB) |
| S Circuit 4 (WH/BK) |
| I Circuit 904 (LG/RD) |

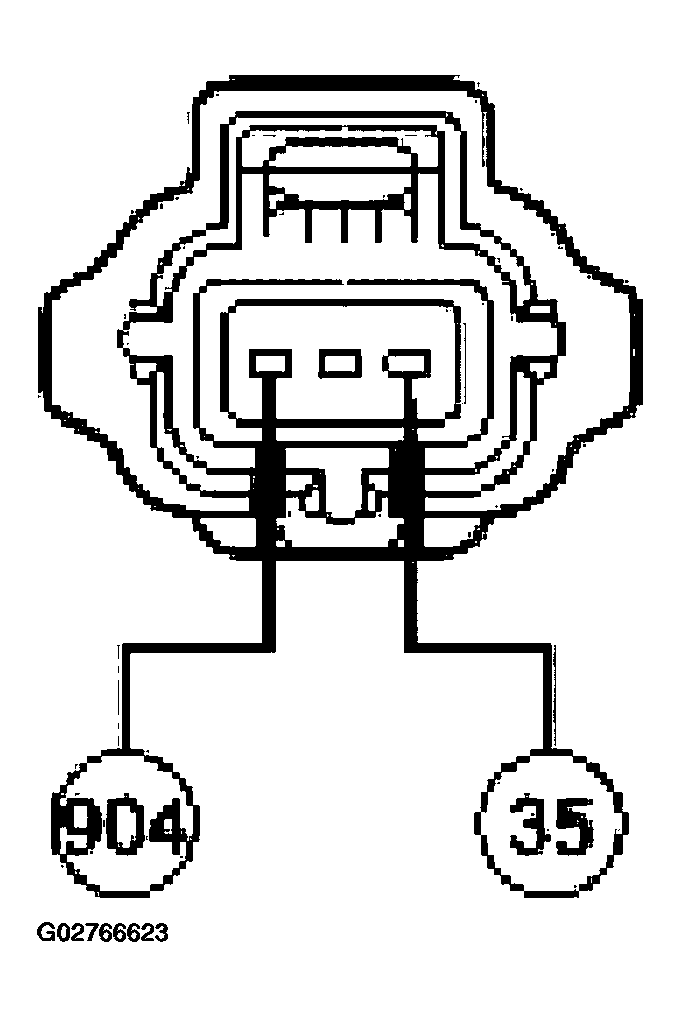

CONNECTOR C102A END VIEW (DIESEL ENGINE, SINGLE GENERATOR)
Courtesy of FORD MOTOR CO. DIESEL ENGINE CIRCUIT
| Diesel Engine |
| I Circuit 904 (LG/RD) |
| A Circuit 35 (OG/LB) |
