Seat Control Switch: Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

1. Install the seat control switch to the front seat back latch lower cover.
2. Install the screws.
3. Route the front seat back latch lower cover to the seat.
4. Position the front seat back latch lower cover to the seat.

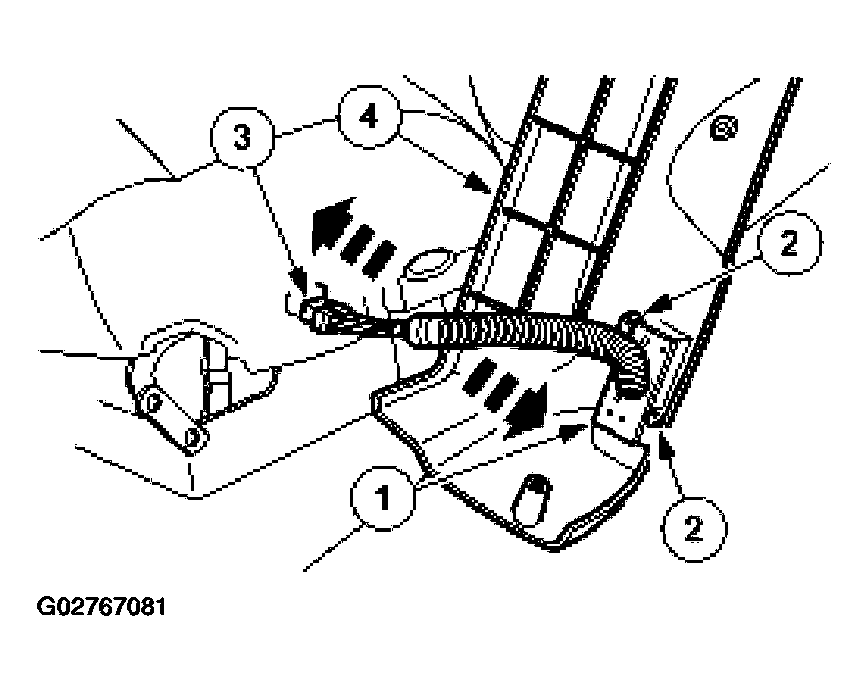

Fig 1: Routing Front Seat Back Latch Lower Cover To Seat
Courtesy of FORD MOTOR CO.
Connect the seat control switch electrical connector.

Fig 2: Connecting Seat Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Install the front seat back latch cover screw to the underside of the seat.

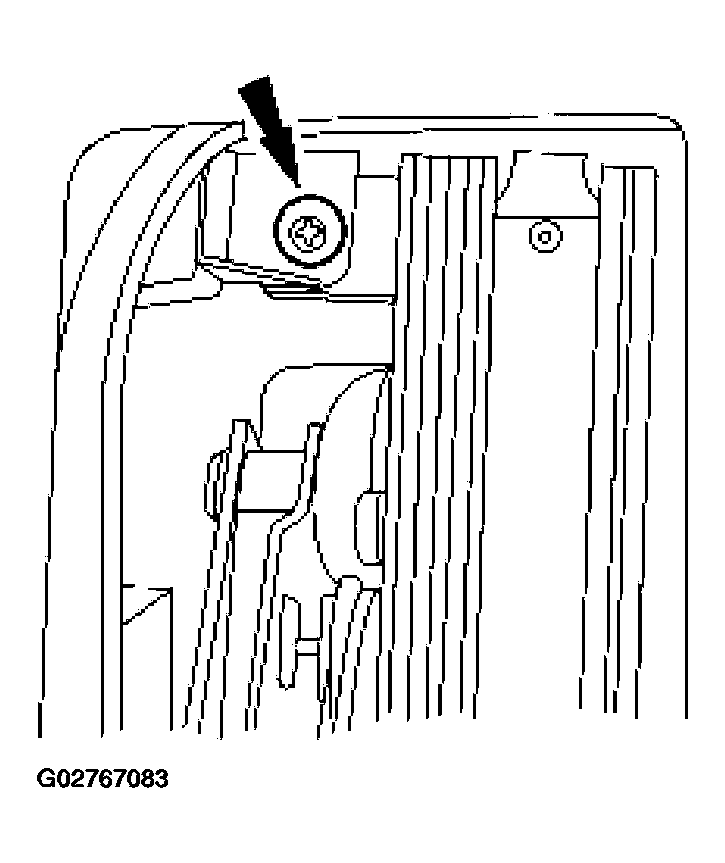

Fig 3: Installing Front Seat Back Latch Cover Screw To Underside Of Seat
Courtesy of FORD MOTOR CO.
Install the front seat back latch lower cover screw to the front of the seat.

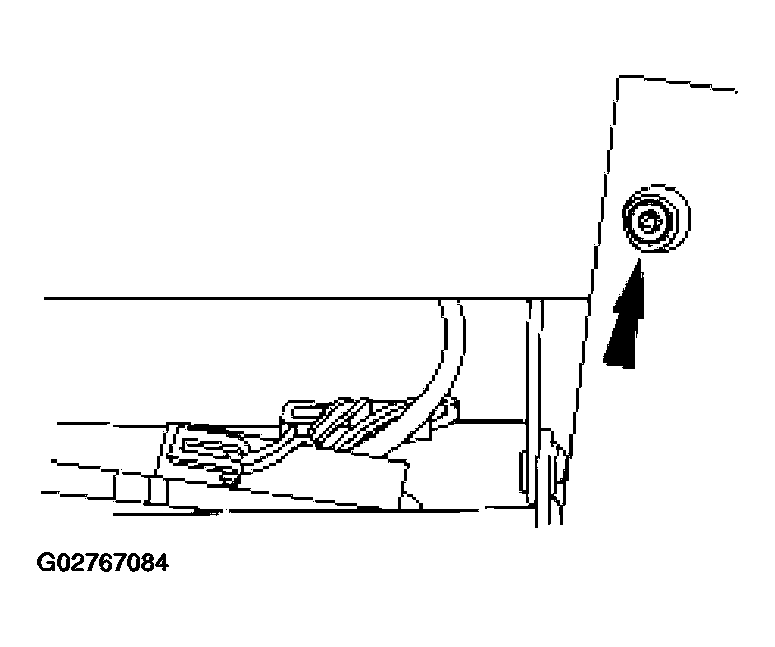

Fig 4: Installing Front Seat Back Latch Lower Cover Screw To Front Of Seat
Courtesy of FORD MOTOR CO.
Install the screw behind the seat back latch handle.

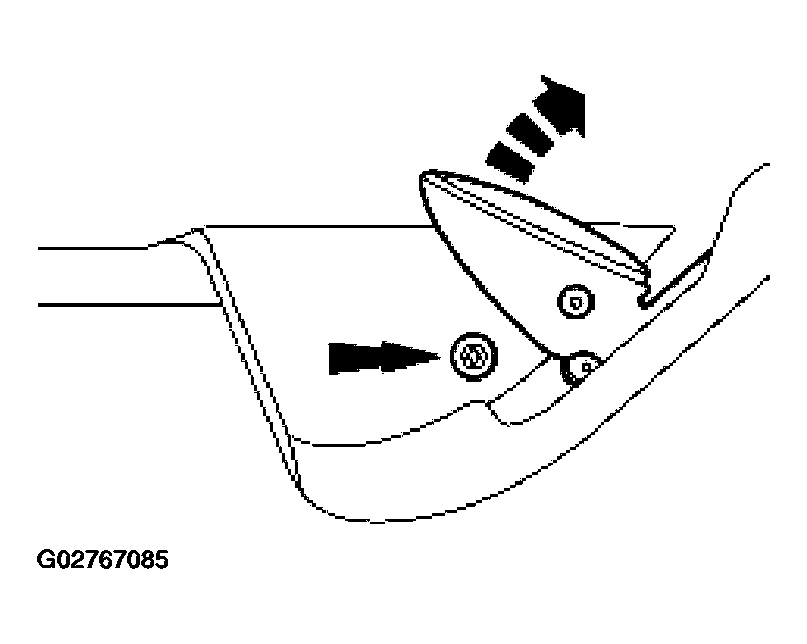

Fig 5: Installing Screw Behind Seat Back Latch Handle
Courtesy of FORD MOTOR CO.
Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of AIR BAG RESTRAINT SYSTEMS .
Check the restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
