Module - Wiper: Removal

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover. Refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the wiper module.
1. Disconnect the electrical connector.
2. Push the detent tabs on the wiper control module through the holes in the mounting bracket and slide the module off the bracket.
3. Remove the wiper control module.

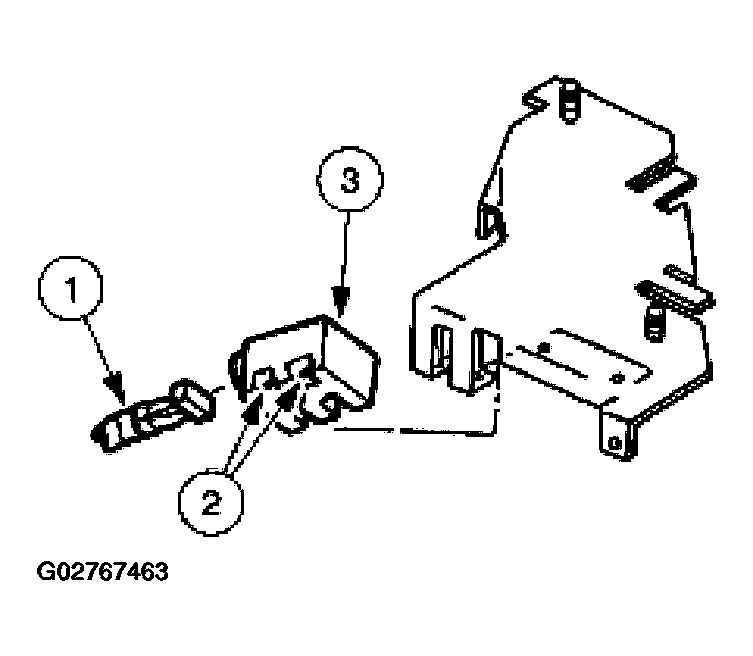

Fig 1: Removing Wiper Control Module
Courtesy of FORD MOTOR CO.
