Pinpoint Test G: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool - 6.0L Diesel Engine

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

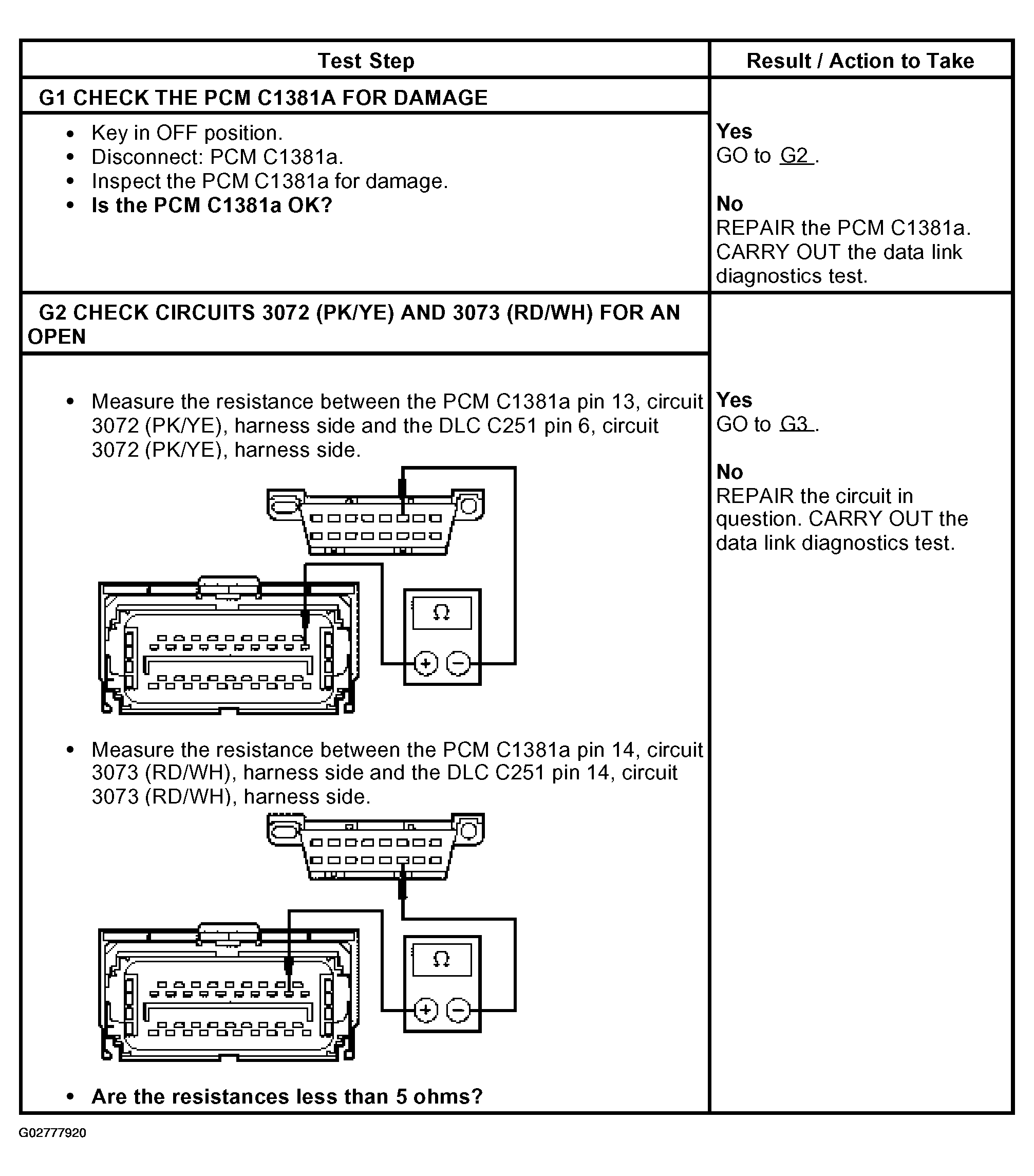

Fig 1: Pinpoint Test G: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool - 6.0L DIESEL ENGINE (G1 & G2)
G02777920Courtesy of FORD MOTOR CO.

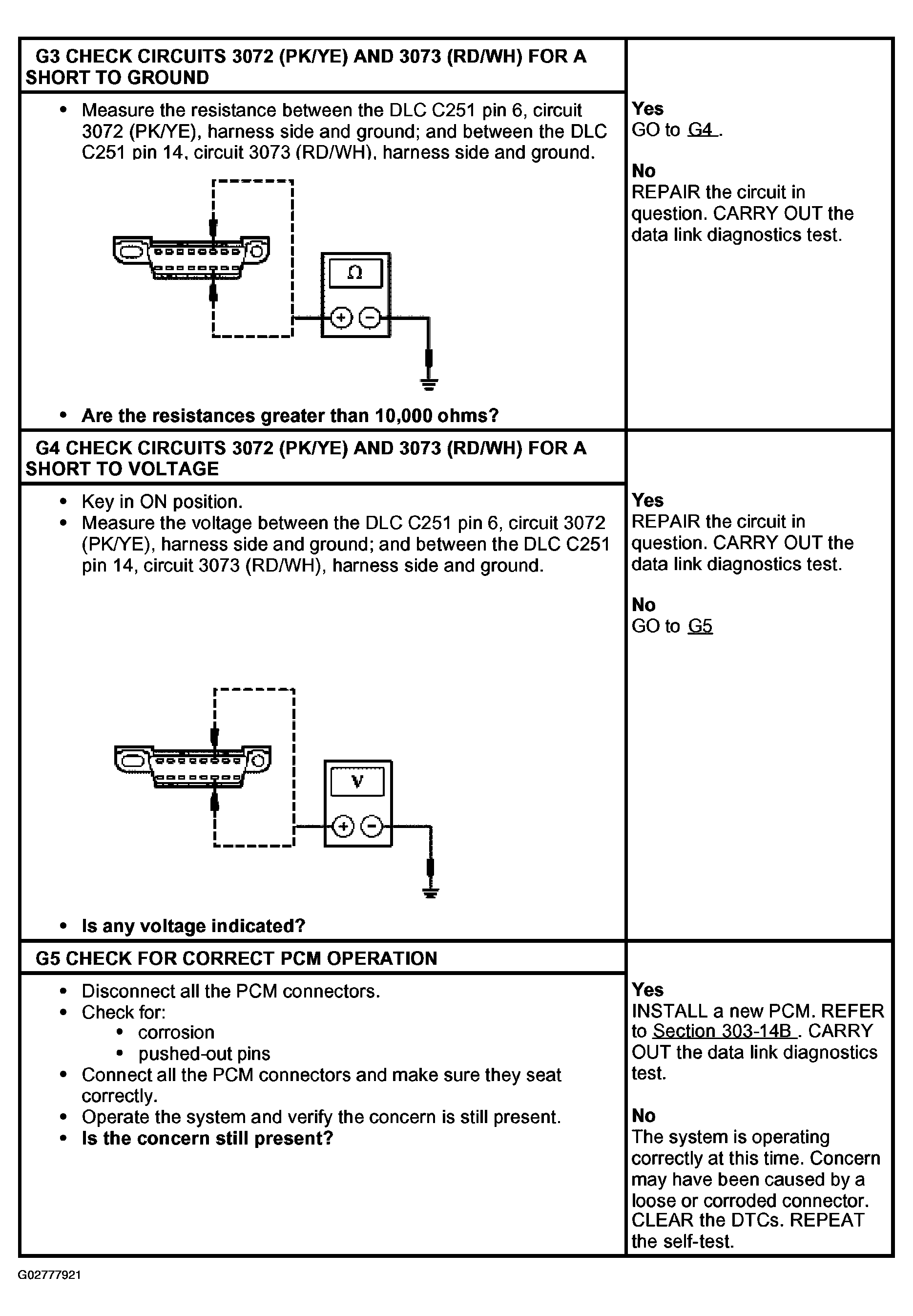

Fig 2: Pinpoint Test G: Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool - 6.0L DIESEL ENGINE (G3-G5)
G02777921Courtesy of FORD MOTOR CO.
