Piston - Pin Diameter
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

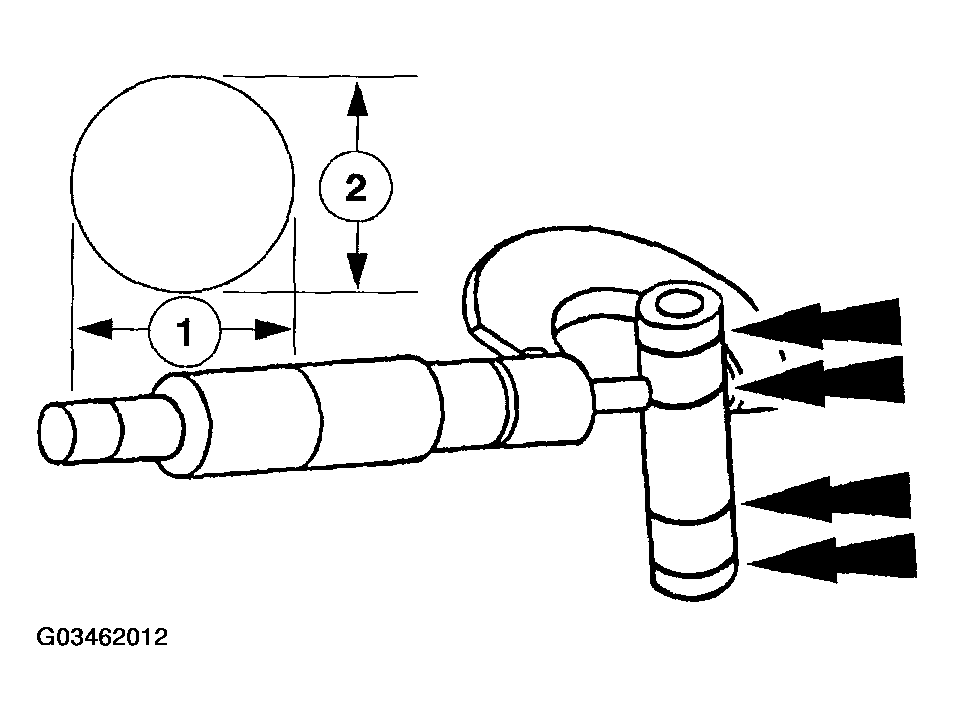

- Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- Refer to SPECIFICATIONS in the appropriate ENGINE article.
- If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.
