Spring Lock Coupling: Connect

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the A/C tube lock coupling spring.

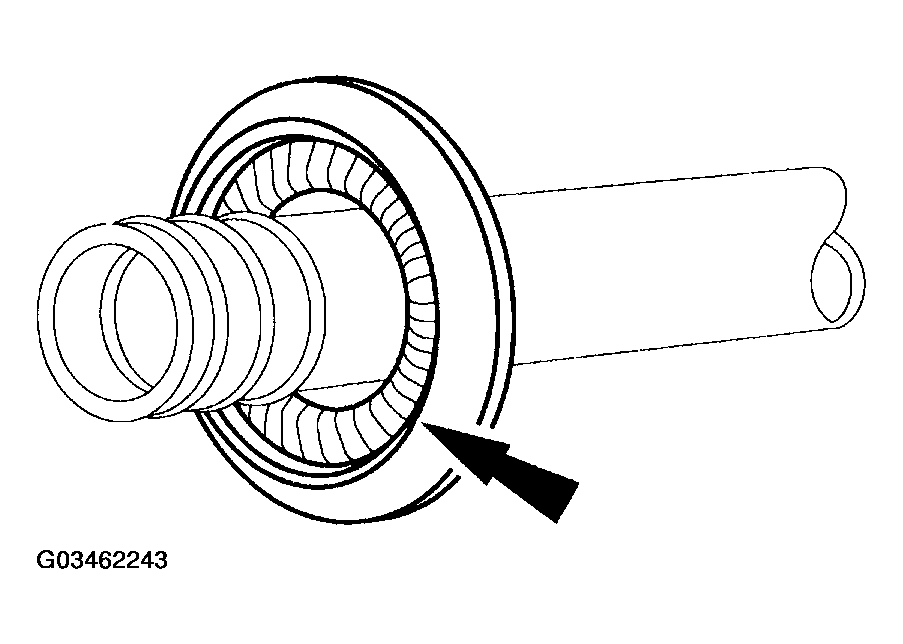

Fig 1: Installing A/C Tube Lock Coupling Spring
Courtesy of FORD MOTOR CO.
Lubricate the inside of the coupling with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.

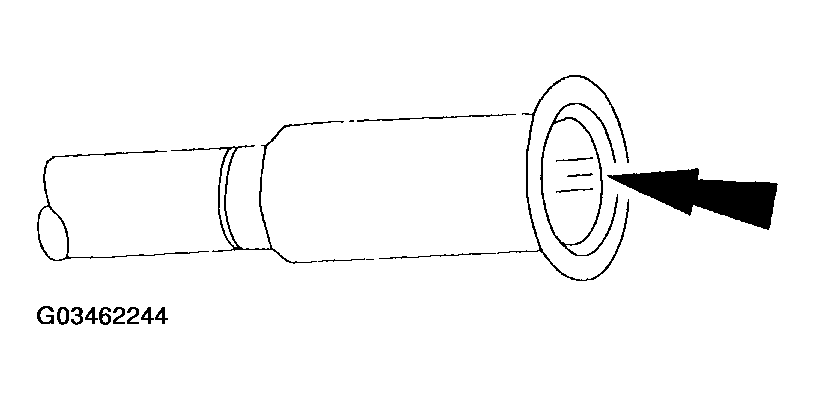

Fig 2: Locating Lubricate Coupling With PAG Refrigerant Compressor Oil
Courtesy of FORD MOTOR CO.

CAUTION: Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.

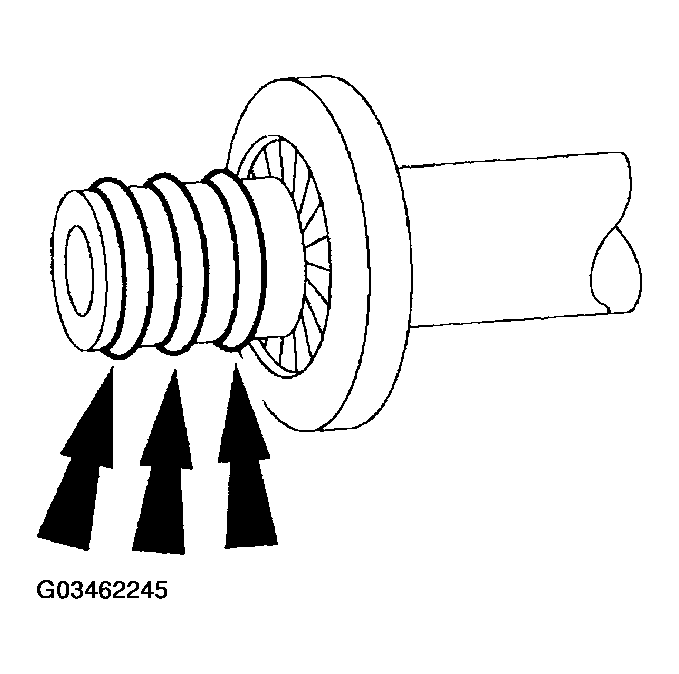

Fig 3: Installing O-Ring Seals

Courtesy of FORD MOTOR CO.

Install the O-ring seals.
- Lubricate the O-ring seals with PAG Refrigerant Compressor Oil (R-134a Systems) or equivalent.
Connect the spring lock coupling fittings with a twisting motion until the A/C tube lock coupling spring snaps over the flared end of the female fitting.

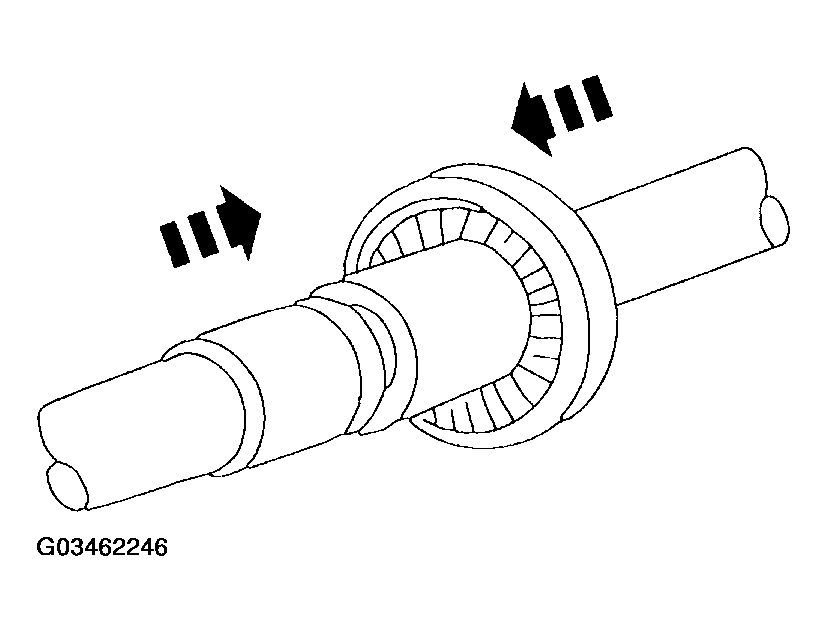

Fig 4: Connecting Spring Lock Coupling Fittings With A Twisting Motion
Courtesy of FORD MOTOR CO.
Install the A/C tube lock coupling clip.

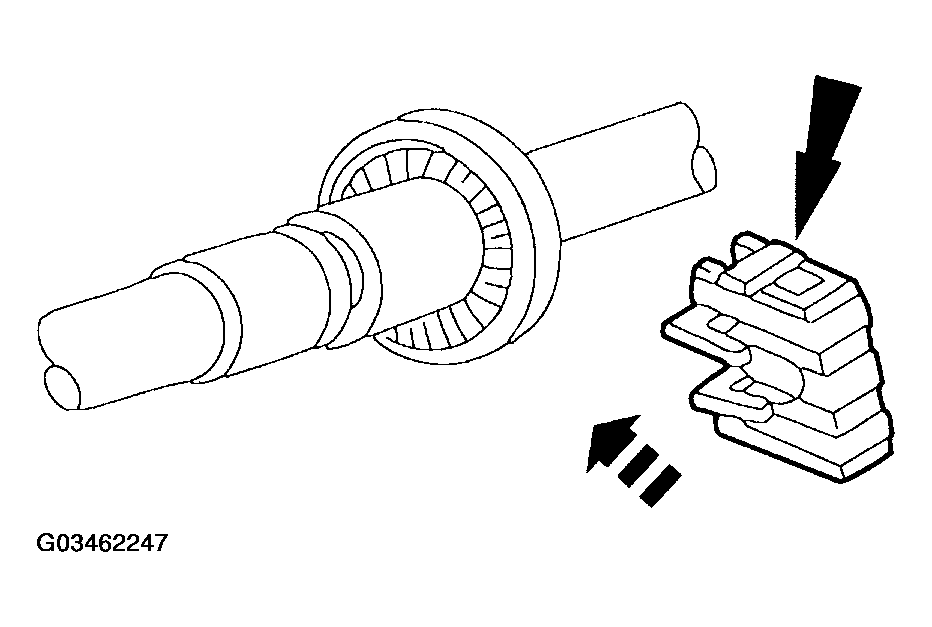

Fig 5: Installing A/C Tube Lock Coupling Clip
Courtesy of FORD MOTOR CO.
