Transfer Case External Components: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

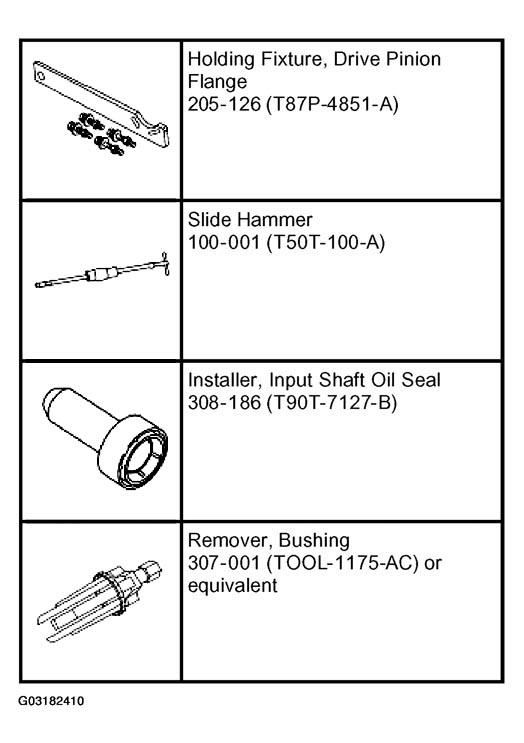

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATION

Item	Specification
Silicone Gasket and Sealant F7AZ-19554-EA	WSE-M4G323-A4

With the transmission in the NEUTRAL position, raise and support vehicle. For additional information, refer to JACKING & LIFTING .
Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PART REMOVAL STEPS

Part	Steps
Rear Output Shaft Flange	1-3
Rear Output Shaft Oil Seal	1-4
Damper	7-8
Heat Shield	9-10
Shift Motor	9-13

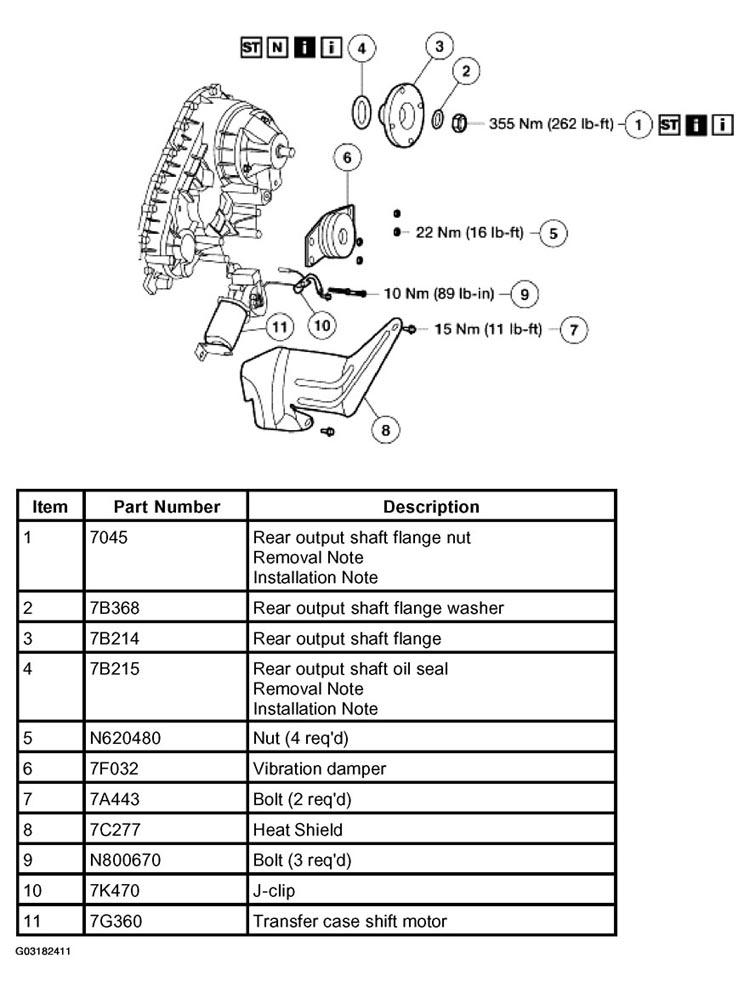

Fig 2: Exploded View Of Transfer Case External Components

Courtesy of FORD MOTOR CO.
