Elevation System Check

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following system check should be carried out with the vehicle on a 4.5 meters (15 feet) wide by 3.0 meters (10 feet) deep smooth concrete surface, free of all obstacles. The area should also be free of noise from fans and pneumatic tools.

Check the parking aid system to make sure that the system does not sense signals caused by ground reflections.

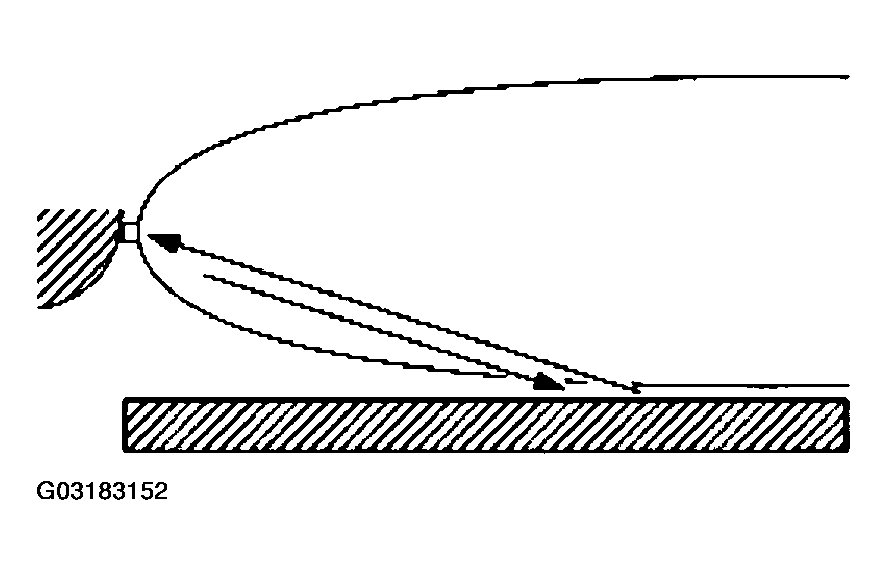

Fig 1: Checking Parking Aid System
Courtesy of FORD MOTOR CO.
Turn the ignition switch to the on position, with the engine off.
Set the parking brake.
Place the transmission in REVERSE (R).

NOTE: No audible alerts should be heard. If audible alerts are heard, make sure the bumper is properly installed and is not tilted downward so that the sensors are pointing at the ground.

Verify that no audible alerts are heard.
