Instrument Cluster: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to the diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE COMMUNICATIONS NETWORK .

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Depower the supplemental restraint system (SRS). For additional information, refer to DISABLING SYSTEM .
Lower the tilt steering column to the lowest position.
Remove the instrument cluster finish panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

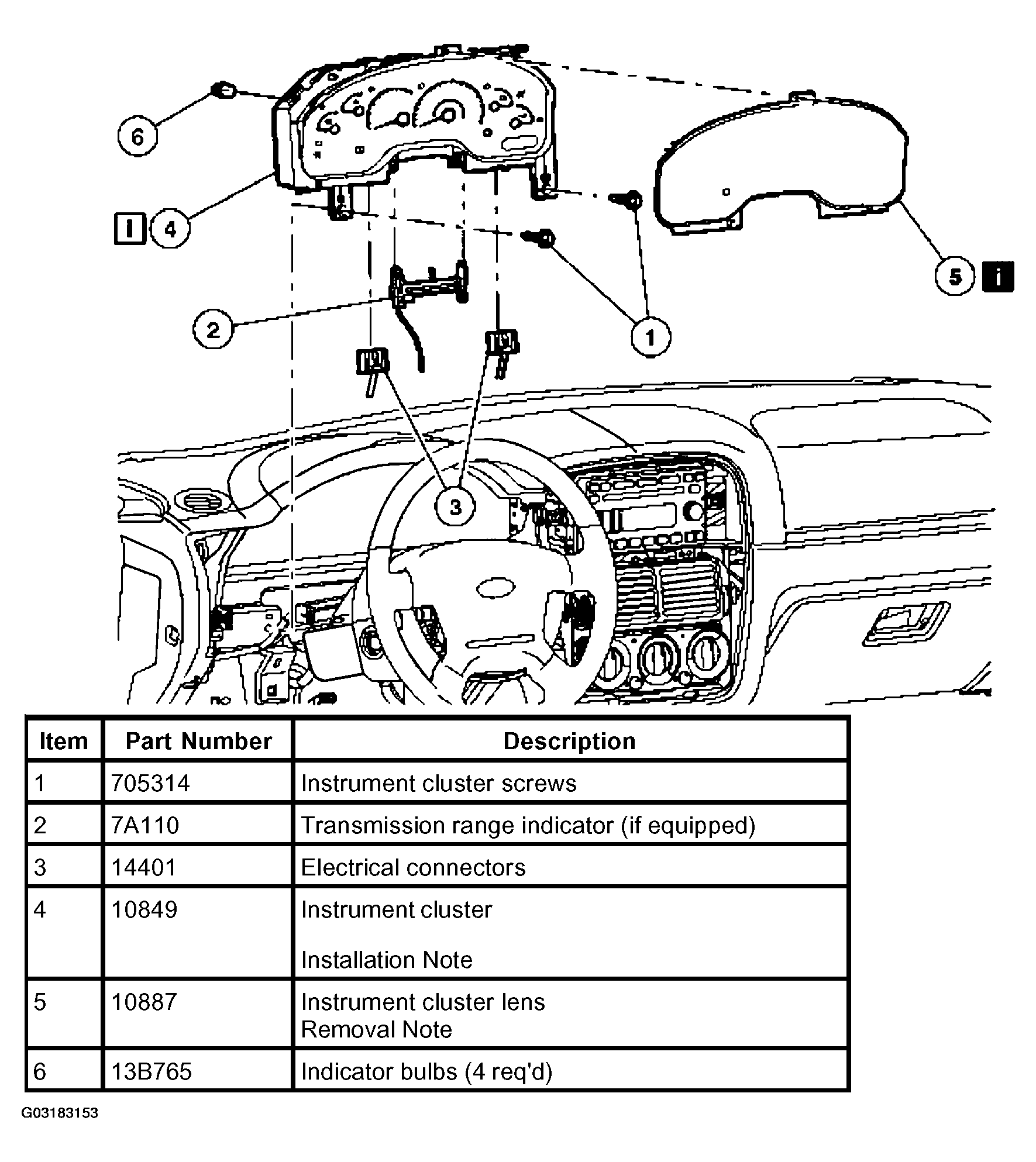

Fig 1: Removing Instrument Cluster Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
