Message Center: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster center finish panel. Refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

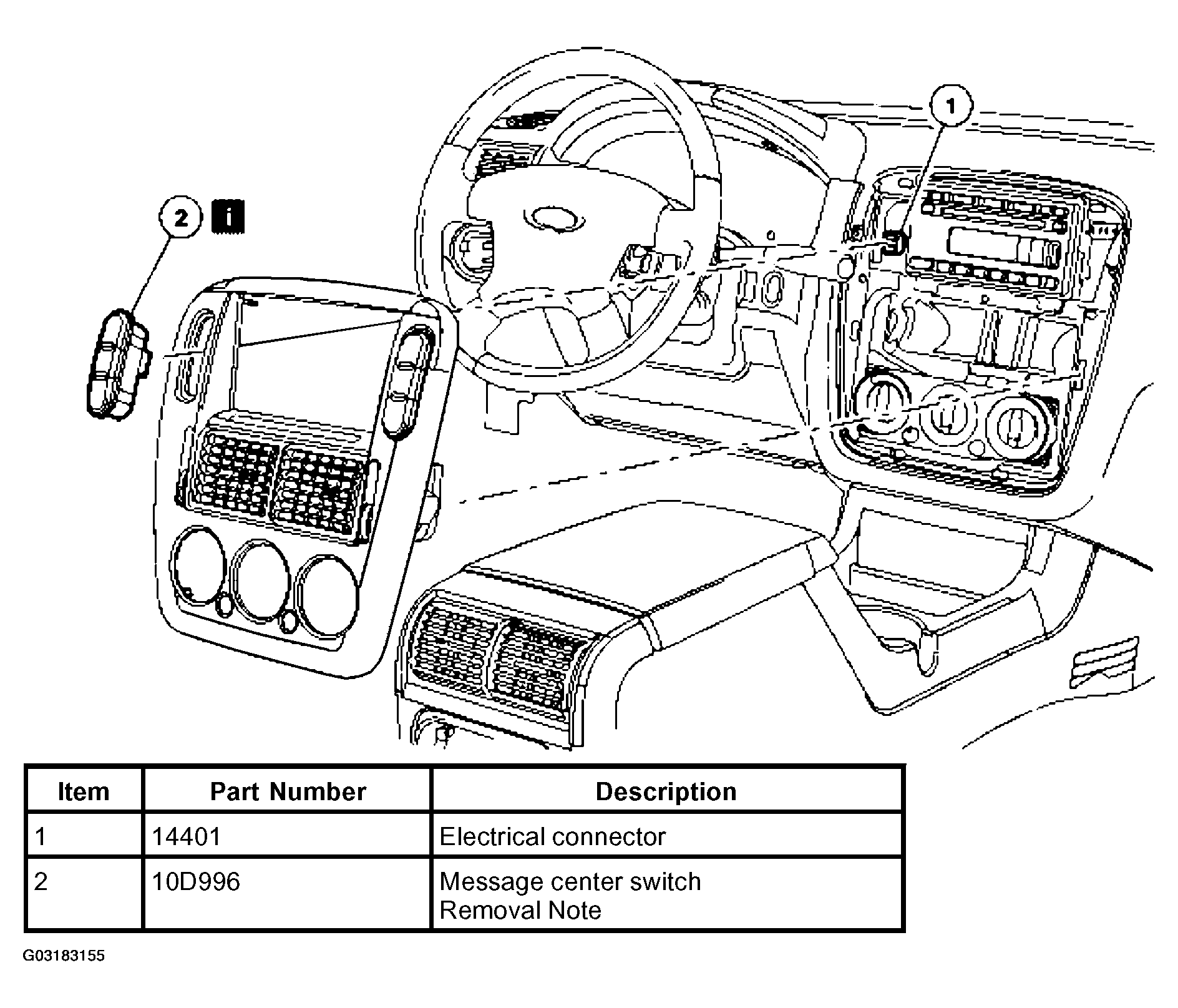

Fig 1: Removing Message Center Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
