Driver Air Bag Module: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the driver air bag module.
1. Connect the horn electrical connectors.
2. Connect the driver air bag module electrical connector.
3. Position the driver air bag module into the steering wheel.
4. Install the two bolts.
5. Install the two steering wheel back cover plugs.

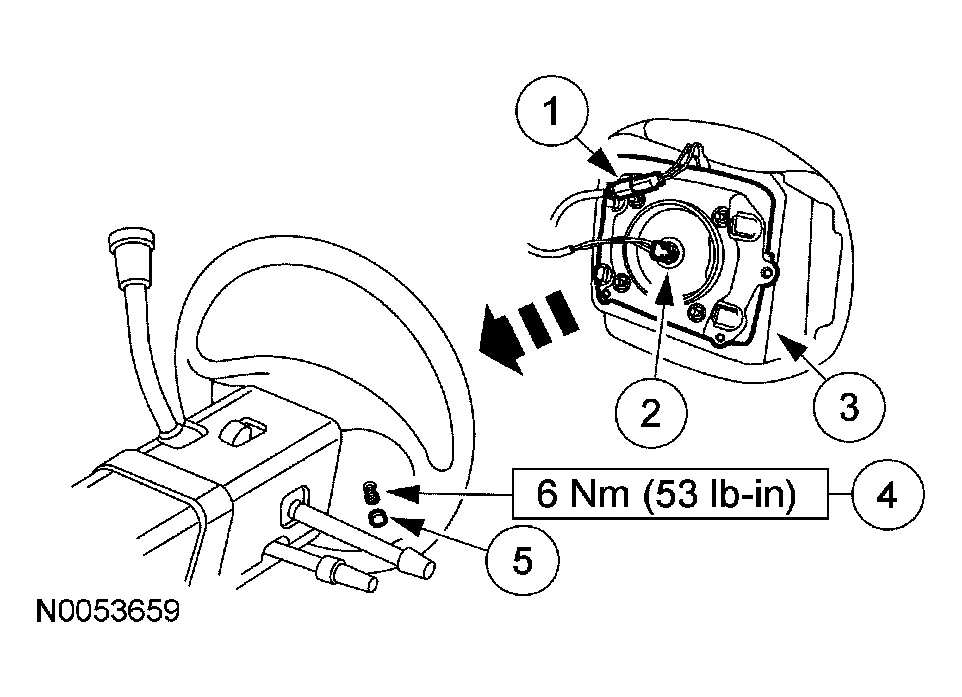

  Fig 1: Installing Driver Air Bag Module
  Courtesy of FORD MOTOR CO.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
