Front Impact Severity Sensor: Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: The tightening torque of the air bag front impact severity sensor retaining bolt is critical for correct system operation.

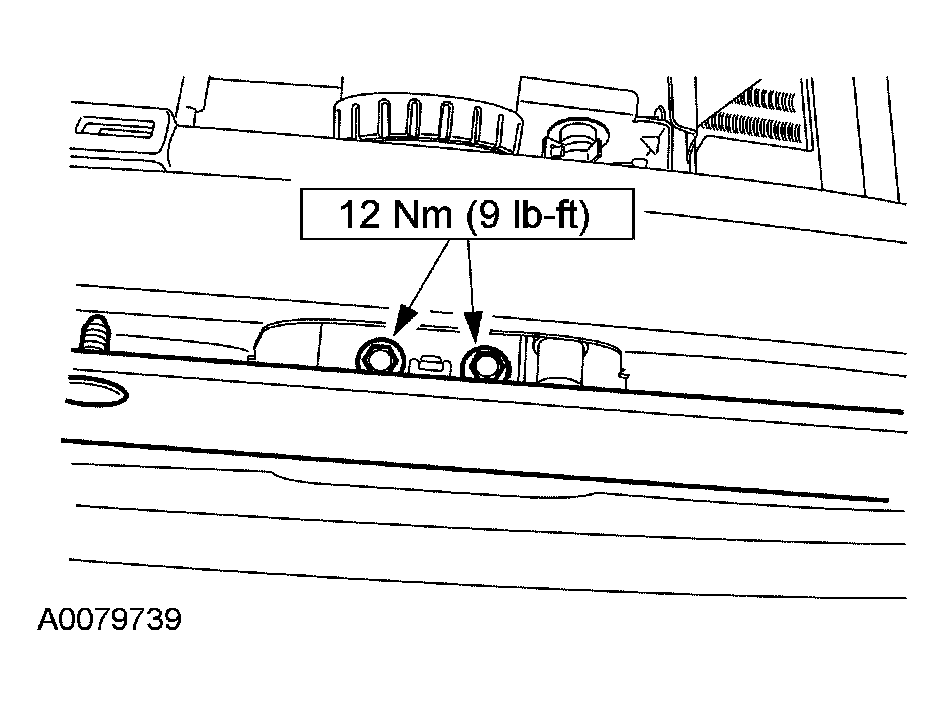

    Fig 1: Front Impact Severity Sensor Bolts Torque Specification
    G03891359Courtesy of FORD MOTOR CO.
  1. Position the front impact severity sensor and install the bolts.
  2. Reposition the front air foil.
  3. Connect the front impact severity sensor electrical connector.

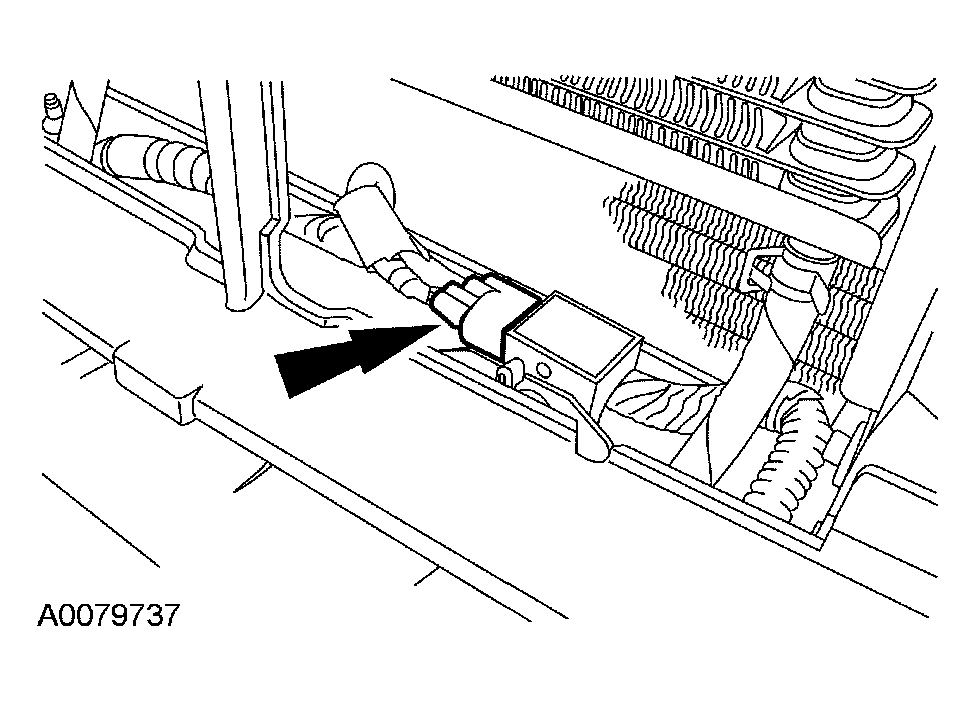

    Fig 2: Connecting Front Impact Severity Sensor Electrical Connector
    G03891357Courtesy of FORD MOTOR CO.
  4. Install the radiator grille.
  5. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
