Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The tightening torque of the air bag restraints control module (RCM) bracket retaining nuts is critical for correct system operation.
NOTE: Inspect the RCM bracket bolts for corrosion before securing the RCM and bracket assembly to the vehicle.
  1. Install the RCM and bracket assembly and tighten the bolts to specification.

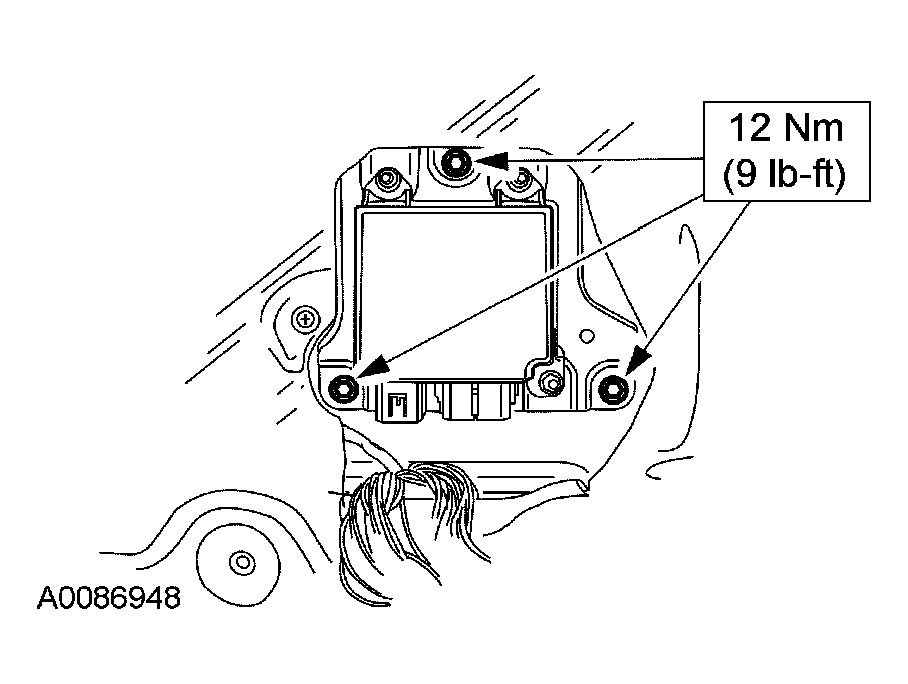

    Fig 1: RCM Bracket Bolts Torque Specification
    G03891364Courtesy of FORD MOTOR CO.
  2. Place the connector position assurance lever in the full release position before attempting to connect the connector.
    Fig 2: Identifying Connector Position Assurance Lever
    G03989905Courtesy of FORD MOTOR CO.
  3. CAUTION: Putting the large RCM electrical connector into the RCM on an angle can cause bad electrical connections and damaged components.
    Fig 3: Identifying Large RCM Electrical Wiring Connector
    G03903873Courtesy of FORD MOTOR CO.
  4. With the large RCM electrical connector uniformly aligned, lightly push in until a subtle audible click is heard and slight resistance is felt.
  5. CAUTION: Do not push the connector onto where the lever pivots and seats itself. Light pressure is needed to get the connector into position on the RCM before using the lever to fully seat the connector.

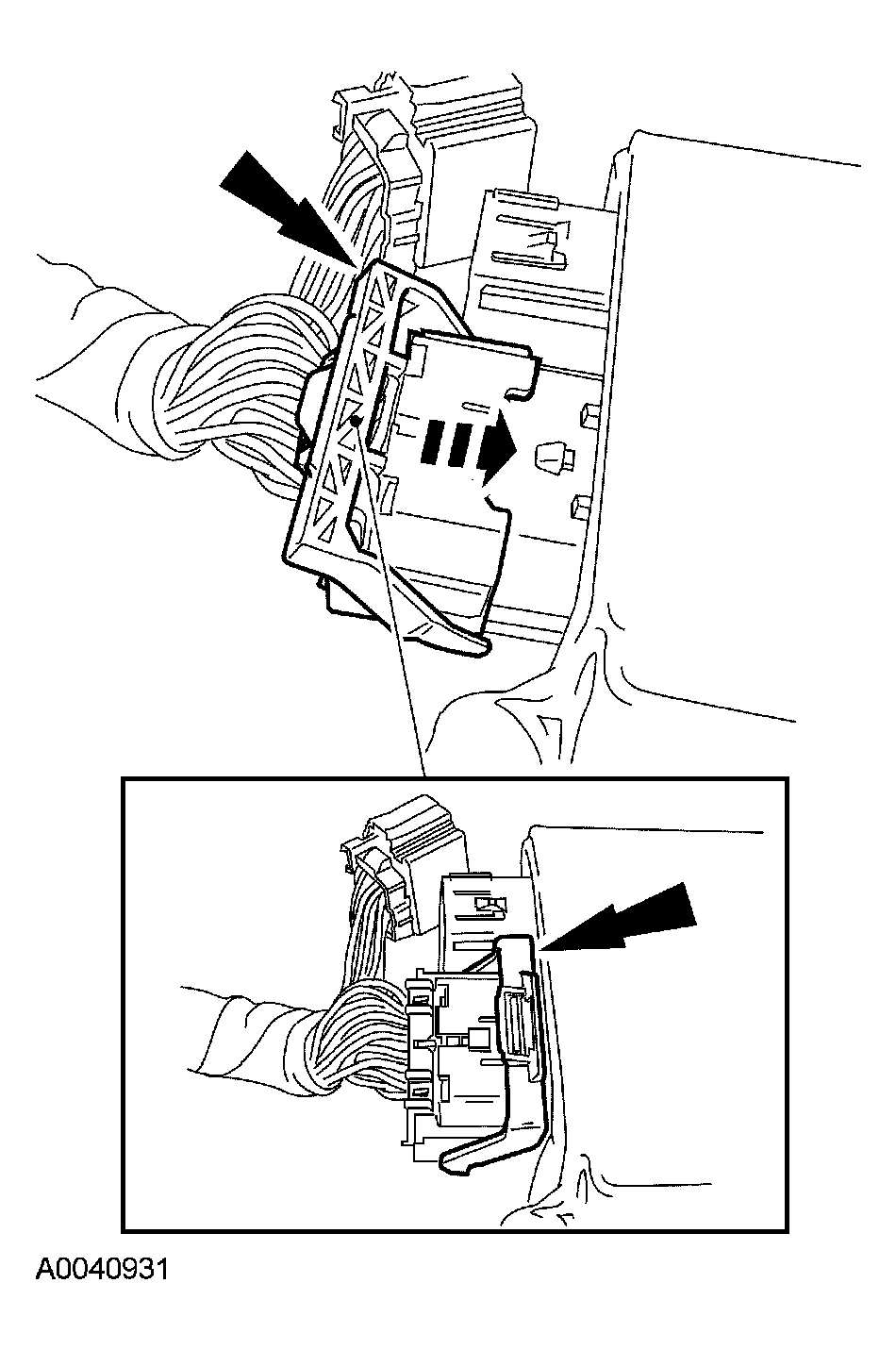

    Fig 4: Pushing Electrical Connector Position Assurance Lever
    G03933069Courtesy of FORD MOTOR CO.
  6. Push the large electrical connector position assurance lever until the retainer engages and locks into place.
  7. Align the small RCM electrical connector and push in until the connector is fully seated into the RCM.
    Fig 5: Aligning Small RCM Electrical Connector
    G03891369Courtesy of FORD MOTOR CO.
  8. Align and install the RCM cover.

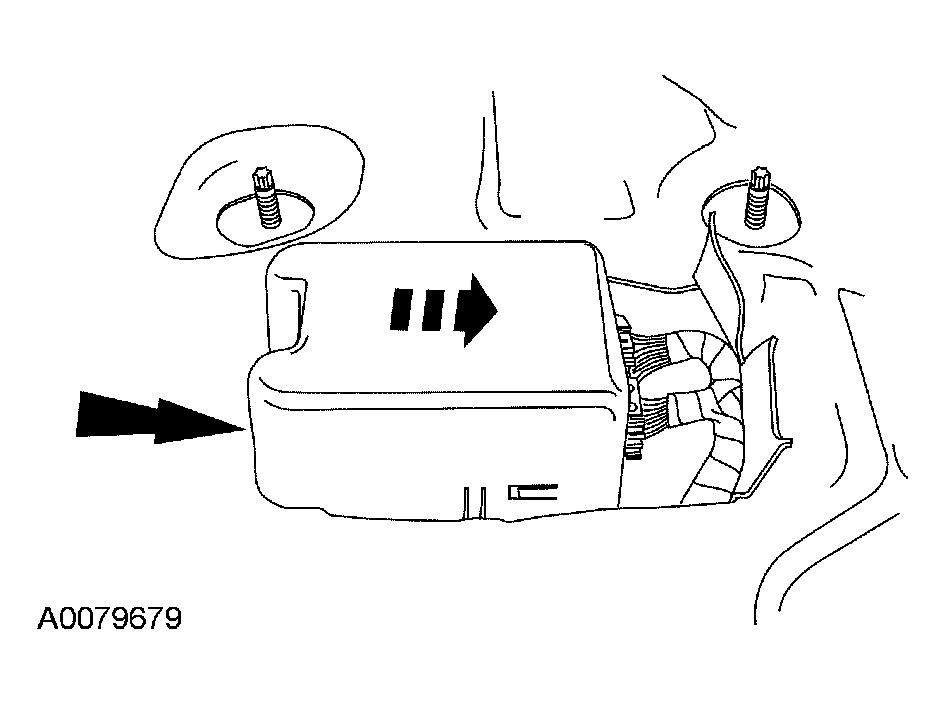

    Fig 6: Aligning And Installing RCM Cover
    G03891370Courtesy of FORD MOTOR CO.
  9. Install the driver seat. For additional information, refer to SEATING .
  10. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
