Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.
Remove the bolts and position the degas bottle aside.

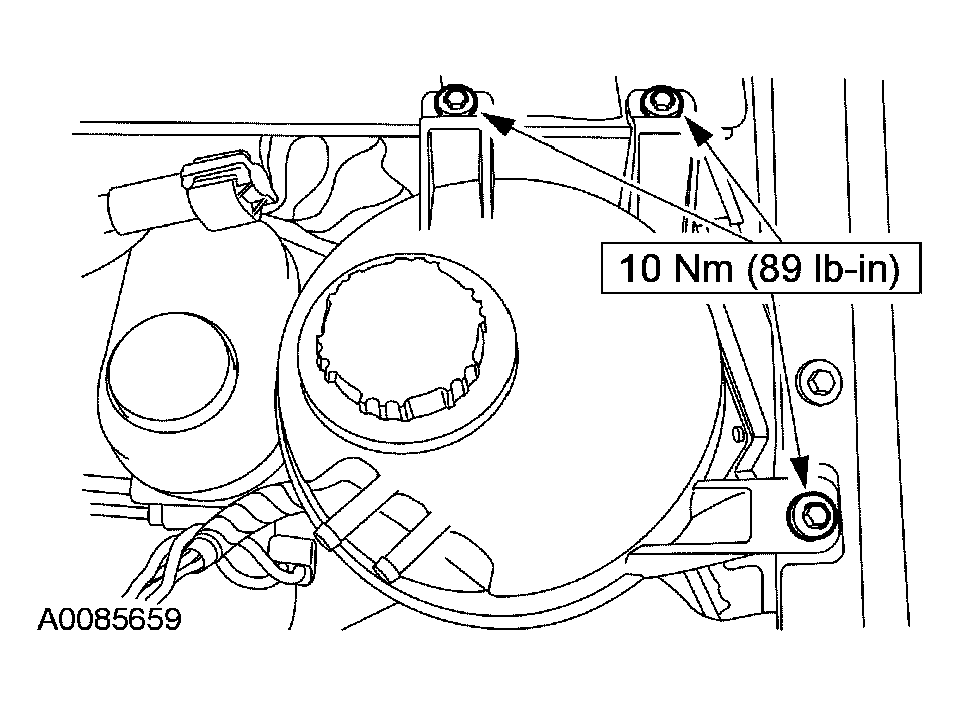

Fig 1: Removing Bolts And Positioning Degas Bottle Aside
Courtesy of FORD MOTOR CO.

CAUTION: Make sure both latches are released before removing the electrical connectors or connector damage can occur.

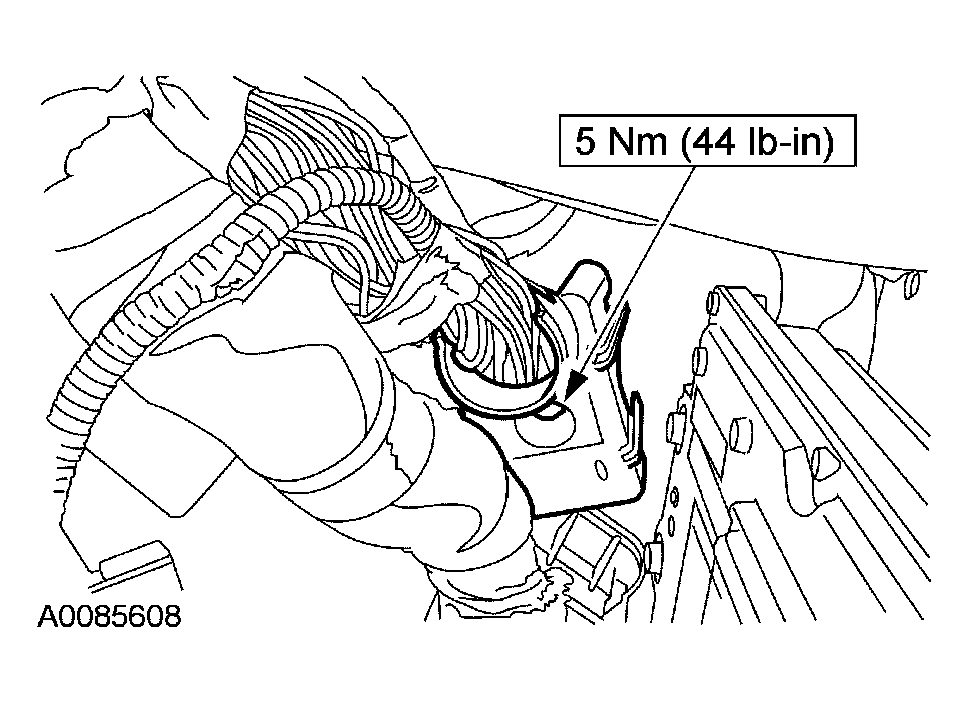

Fig 2: Disconnecting Fuel Injector Control Module (FICM) Electrical Connectors

Courtesy of FORD MOTOR CO.

Disconnect the fuel injector control module (FICM) electrical connectors. Position the wiring harness aside.
Disconnect the bulkhead connector and position aside.

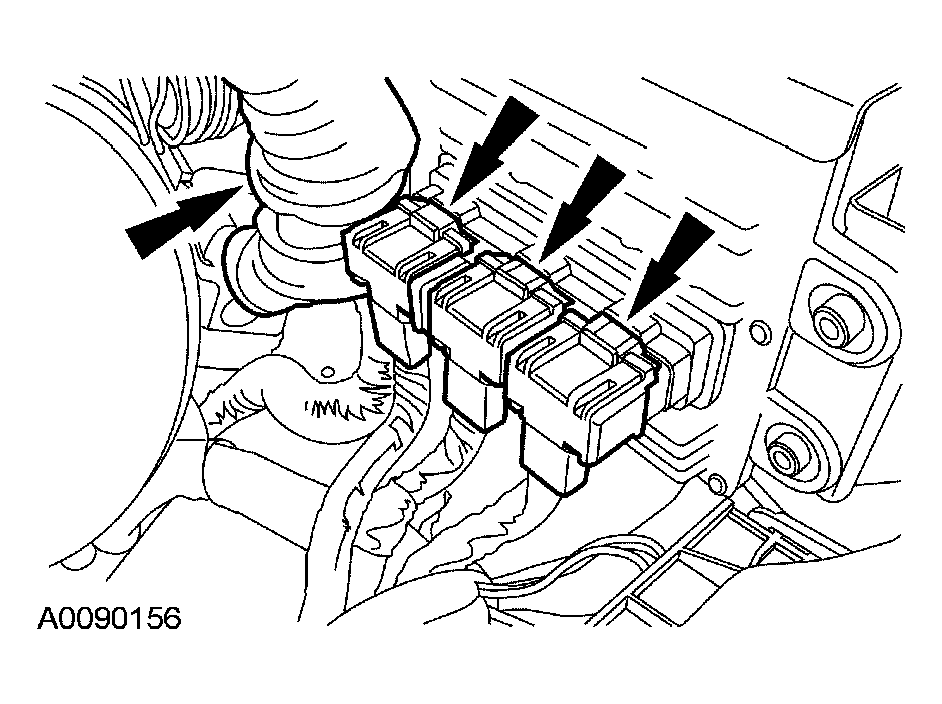

Fig 3: Disconnecting Bulkhead Connector And Position Aside
Courtesy of FORD MOTOR CO.
Remove the bolts and the FICM.

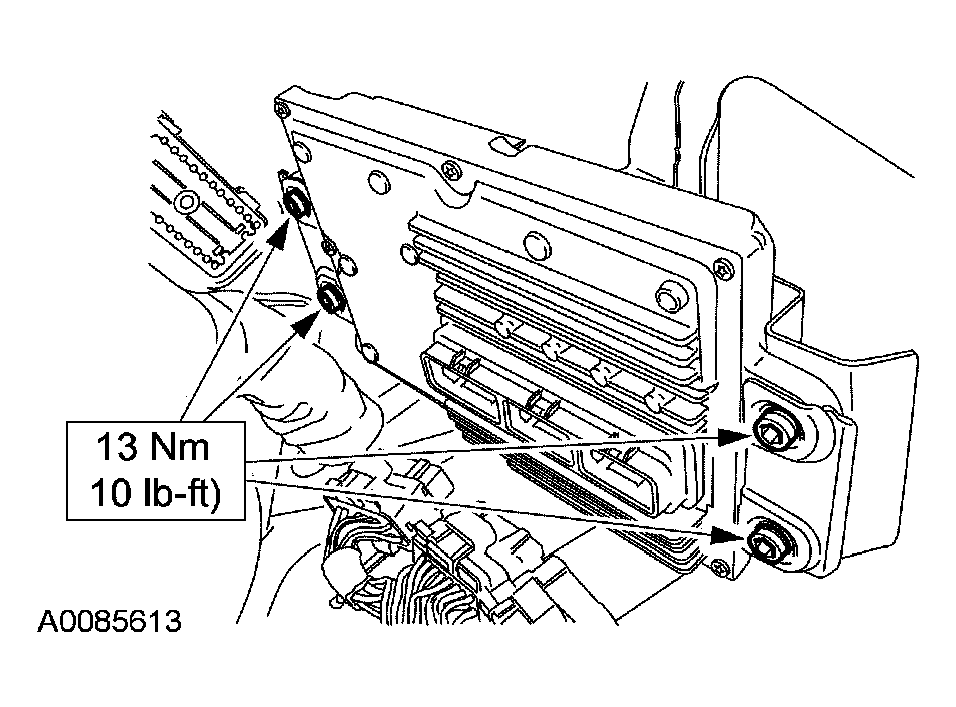

Fig 4: Removing Bolts And FICM
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
