Seat Control Switch: Removal

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: The belt and buckle assembly pretensioner is a pyrotechnic device. Never probe the connectors on the belt and buckle assembly pretensioner. Doing so can result in belt and buckle assembly pretensioner or air bag deployment and can result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .
  2. Remove the screw from behind the seat back latch handle.
    Fig 1: Locating Screw Behind Seat Back Latch Handle
    G03890789Courtesy of FORD MOTOR CO.
  3. Remove the front seat back latch lower cover screw from the front of the seat.
    Fig 2: Locating Cushion Outboard Side Shield Front Screw
    G03890797Courtesy of FORD MOTOR CO.
  4. Remove the front seat back latch cover screw from the underside of the seat.
    Fig 3: Locating Cushion Outboard Side Shield Rear Screw
    G03890796Courtesy of FORD MOTOR CO.
  5. Disconnect the seat control switch electrical connector.
    Fig 4: Seat Control Switch Electrical Connector
    G03890792Courtesy of FORD MOTOR CO.

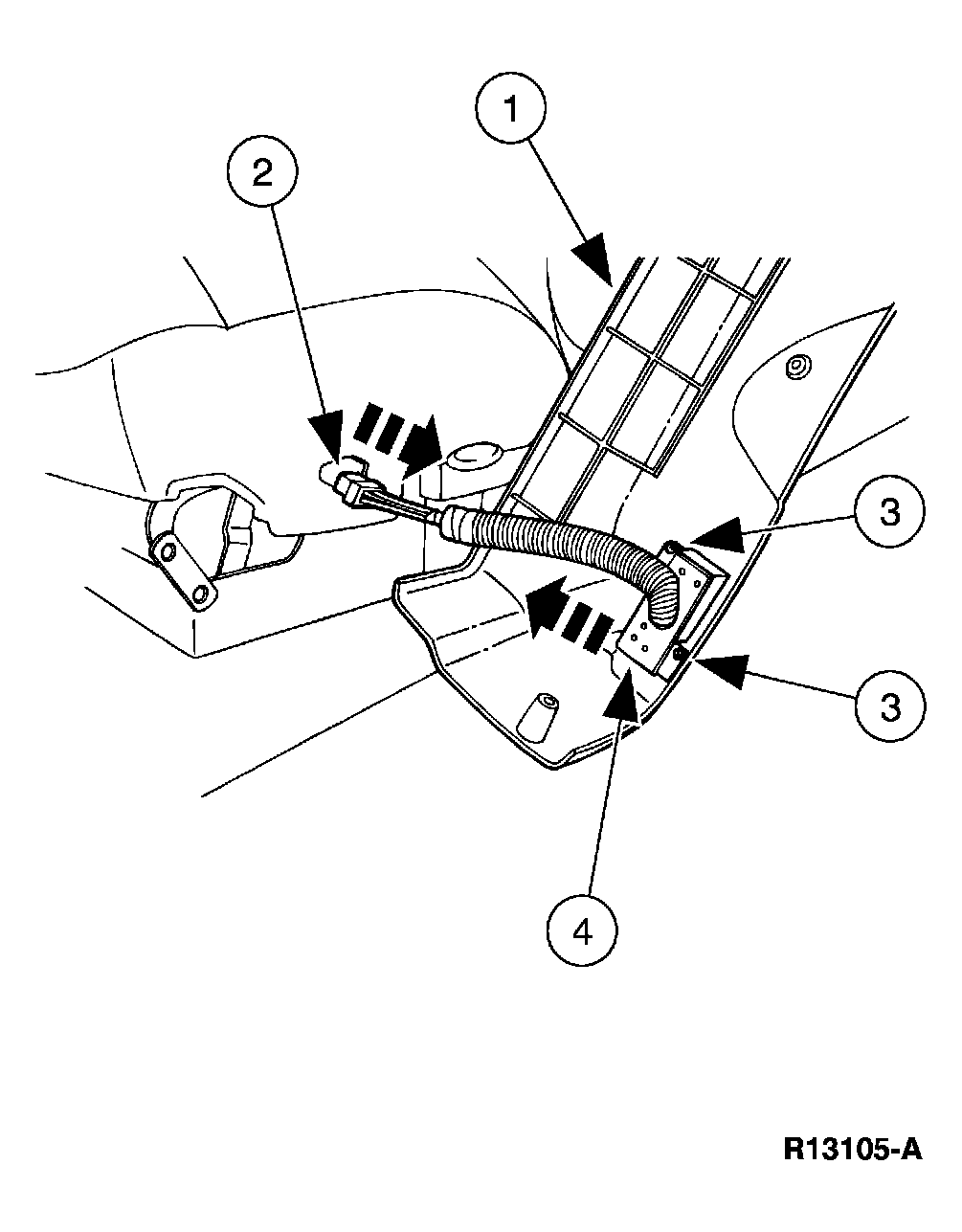

  6. Remove the seat control switch.
    1. Pull the front seat back latch cover away from the seat.
    2. Pull the seat control switch electrical connector through the seat cushion.
    3. Remove the screws.
    4. Remove the seat control switch.
      Fig 5: Removing Seat Control Switch
      G03890793Courtesy of FORD MOTOR CO.
