Test C: Single Mirror Does Not Function With Switch Logic

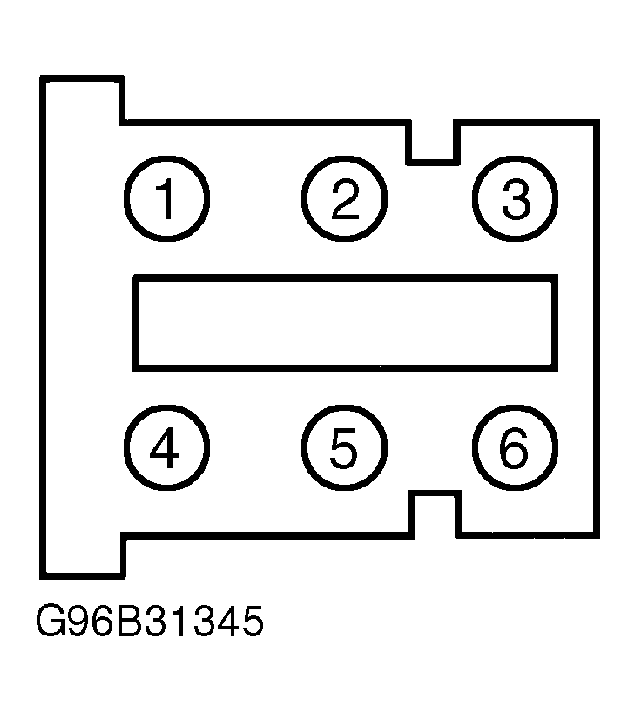

Disconnect malfunctioning mirror harness connector. Measure voltage or resistance at appropriate mirror harness connector terminal with mirror control switch in position specified. See MIRROR CONTROL CIRCUIT table. See Figure . If voltage and resistance readings are not as specified, go to next step. If voltage and resistance readings are as specified, replace appropriate mirror motor.

MIRROR CONTROL CIRCUIT

Terminal No. (Wire Color)	Switch Position	Value
Driver's Mirror
3 (Red)	Driver's Mirror Left	Battery Voltage
3 (Red)	Driver's Mirror Right	5 Ohms Or Less
1 (Dark Blue)	Driver's Mirror Up	Battery Voltage
1 (Dark Blue)	Driver's Mirror Down	5 Ohms Or Less
2 (Yellow)	Driver's Mirror Left Or Up	5 Ohms Or Less
2 (Yellow)	Driver's Mirror Right Or Down	Battery Voltage
Passenger's Mirror
3 (Dark Green)	Passenger's Mirror Left	Battery Voltage
3 (Dark Green)	Passenger's Mirror Right	5 Ohms Or Less
1 (Violet)	Passenger's Mirror Up	Battery Voltage
1 (Violet)	Passenger's Mirror Down	5 Ohms Or Less
2 (White)	Passenger's Mirror Left Or Up	5 Ohms Or Less
2 (White)	Passenger's Mirror Right Or Down	Battery Voltage

Test mirror control switch. See MIRROR CONTROL SWITCH under COMPONENT TESTS. If mirror control switch is defective, replace mirror control switch. If mirror control switch is okay, repair appropriate circuit(s) between mirror control switch and appropriate mirror.
