Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

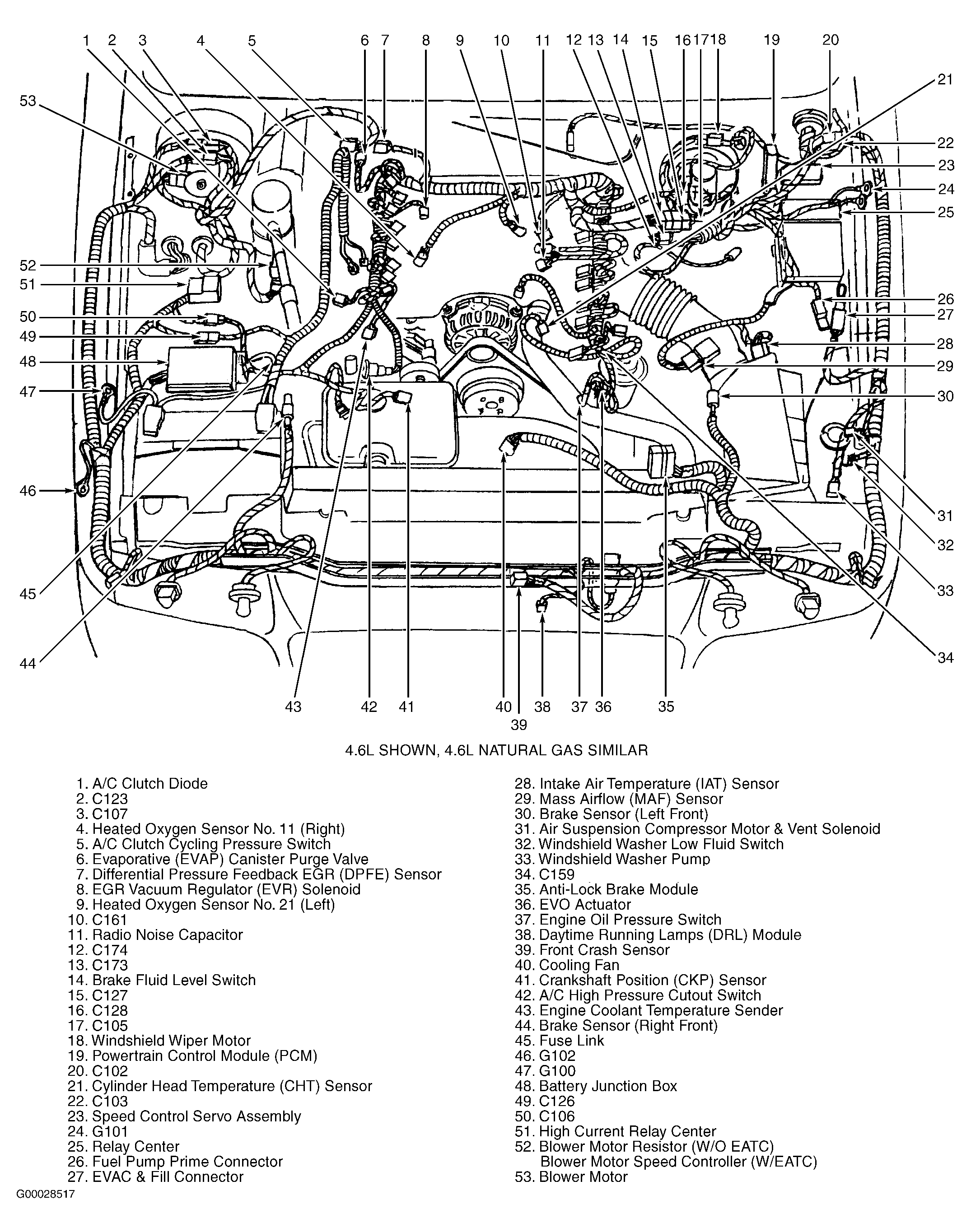

| Battery Junction Box | In right front of engine compartment, behind battery. See Figure . |

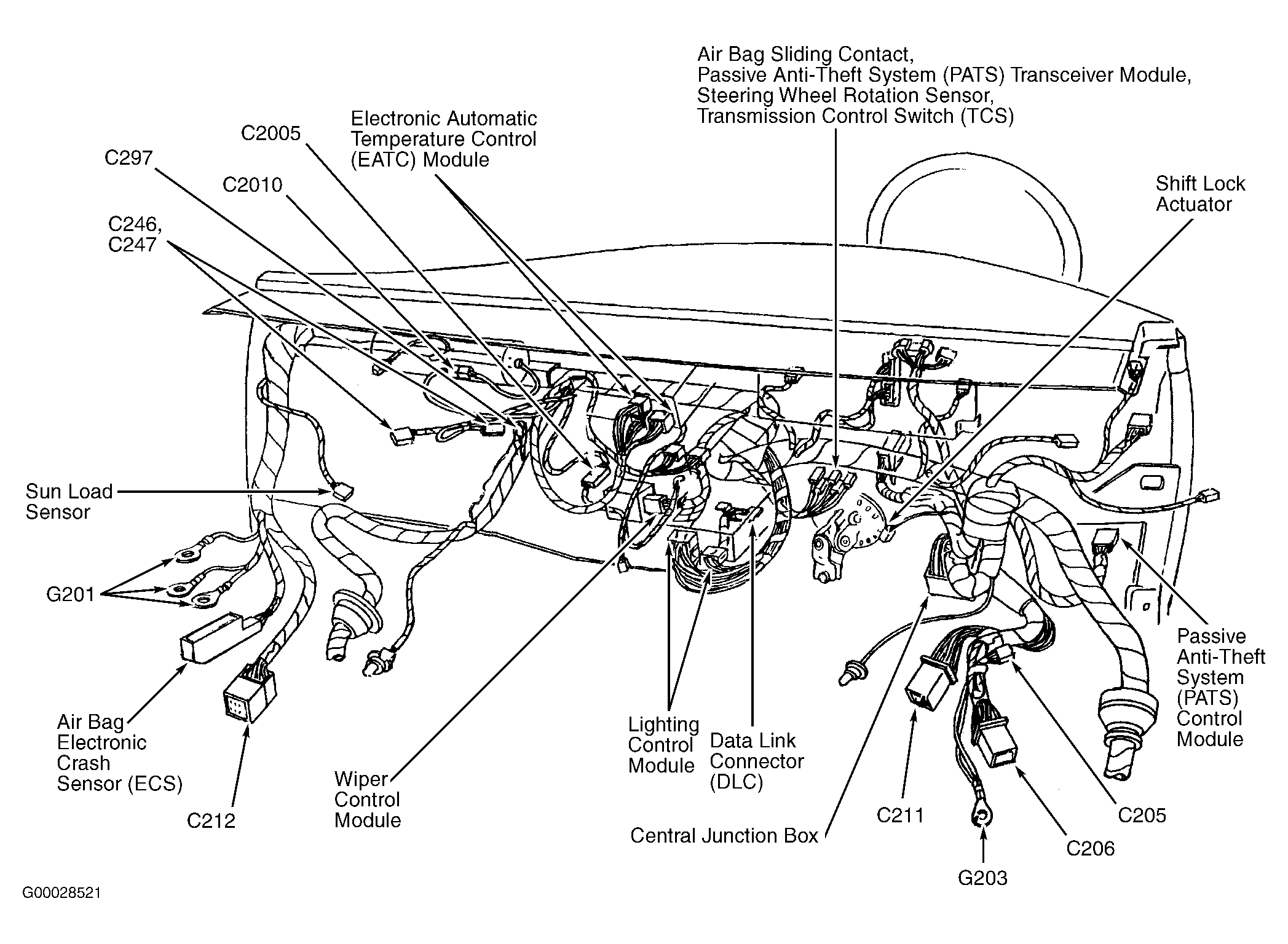

| Central Junction Box | Below dash, left of steering column. See Figure . |
| Emergency Flasher Relay Block | In left rear of trunk. |
| Fuse Link | At battery junction box. See Figure . |
| High Current Relay Center | Right rear of engine compartment, behind battery junction box. See Figure . |
| Police Option Fuse Holder | Behind left side of dash, on central junction box. |
| Relay Center | Left side of engine compartment. See Figure . |
