Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Electronic Crash Sensor (ECS) | Behind right side of dash, above glove box. See Figure . |
| Air Suspension/EVO Steering Module | Behind right side of dash, above glove box. |
| Anti-Lock Brake Module | On left front of upper radiator support. See Figure . |
| Blower Motor Speed Controller (W/EATC) | On right side of firewall, on evaporator assembly. See Figure . |
| Daytime Running Lamps (DRL) Module | On front of upper radiator support. See Figure . |
| Driver Door Module | Center of left front door. |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. See Figure . |
| Electronic Variable Orifice (EVO) Steering Module | Behind right side of dash, above glove box. |
| Fuel Tank Assembly | On rear of fuel tank. |

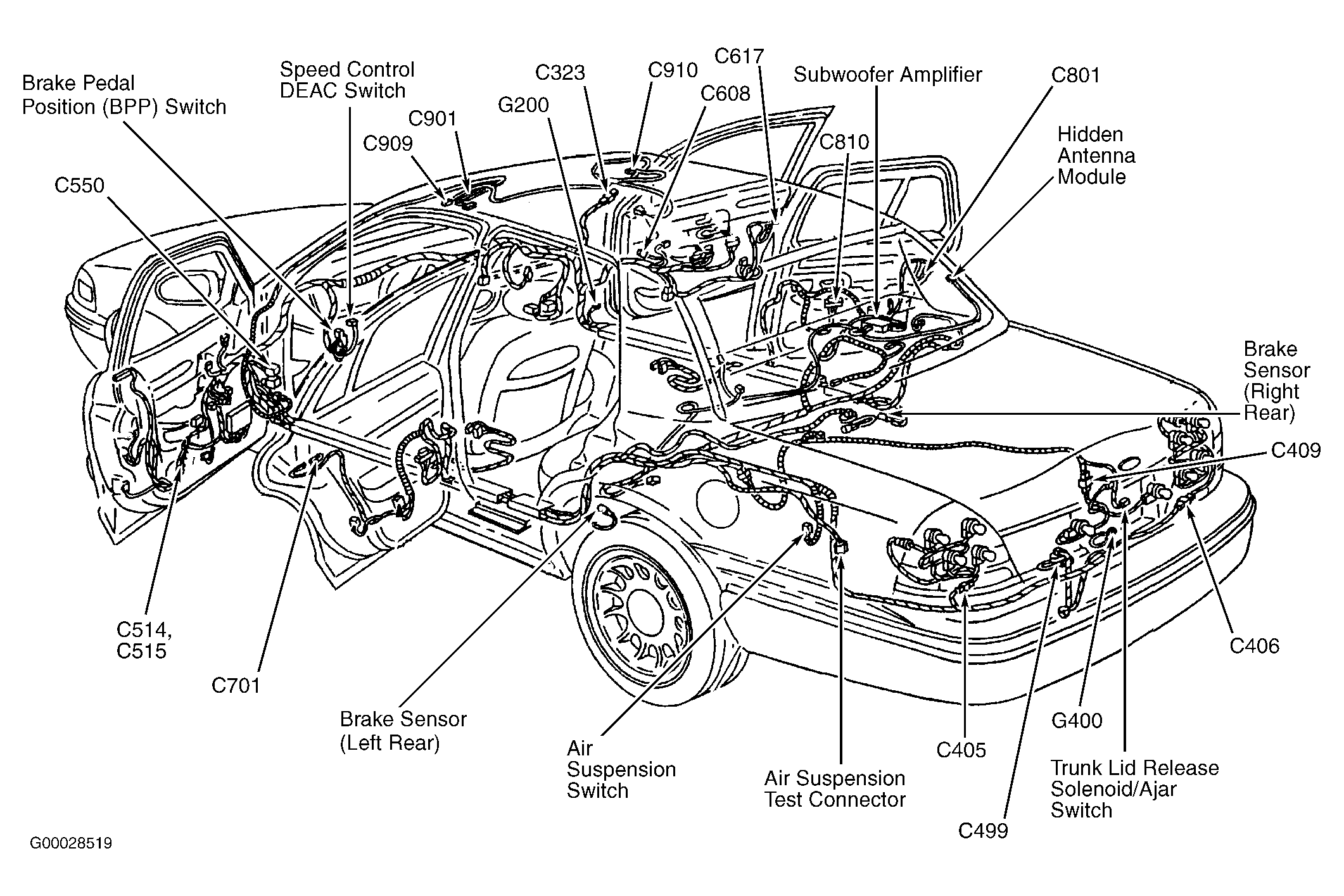

| Hidden Antenna Module | Right front of trunk. See Figure . |
| Lighting Control Module | Behind left side of dash. See Figure . |

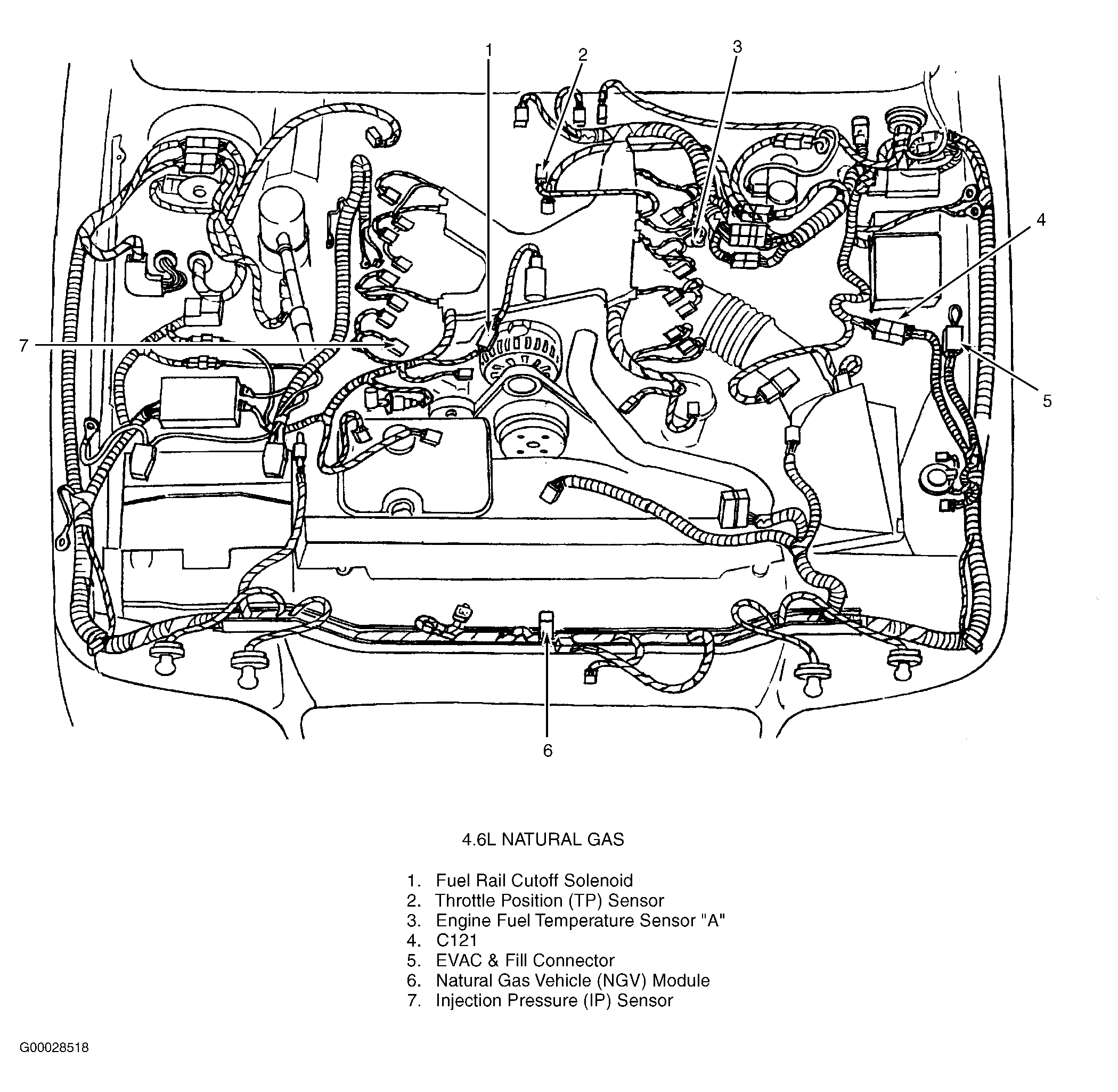

| Natural Gas Vehicle (NGV) Module | On front of radiator support. See Figure . |
| One Touch Window Down Module | In center of driver's door, near master control switch. |
| Passive Anti-Theft System (PATS) Control Module | Behind left side of dash. See Figure . |
| Passive Anti-Theft System (PATS) Transceiver Module | Behind left side of dash. See Figure . |
| Powertrain Control Module (PCM) | In engine compartment, on left side of firewall. See Figure . |
| Speed Chime Module | Behind right side of dash. |
| Warning Lamps Module | Top of dash, near left side of steering column. |
| Wiper Control Module | Behind center of dash, above warning lamps module. See Figure . |
