Front Disc Brake System - Exploded View
WARNING:
This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

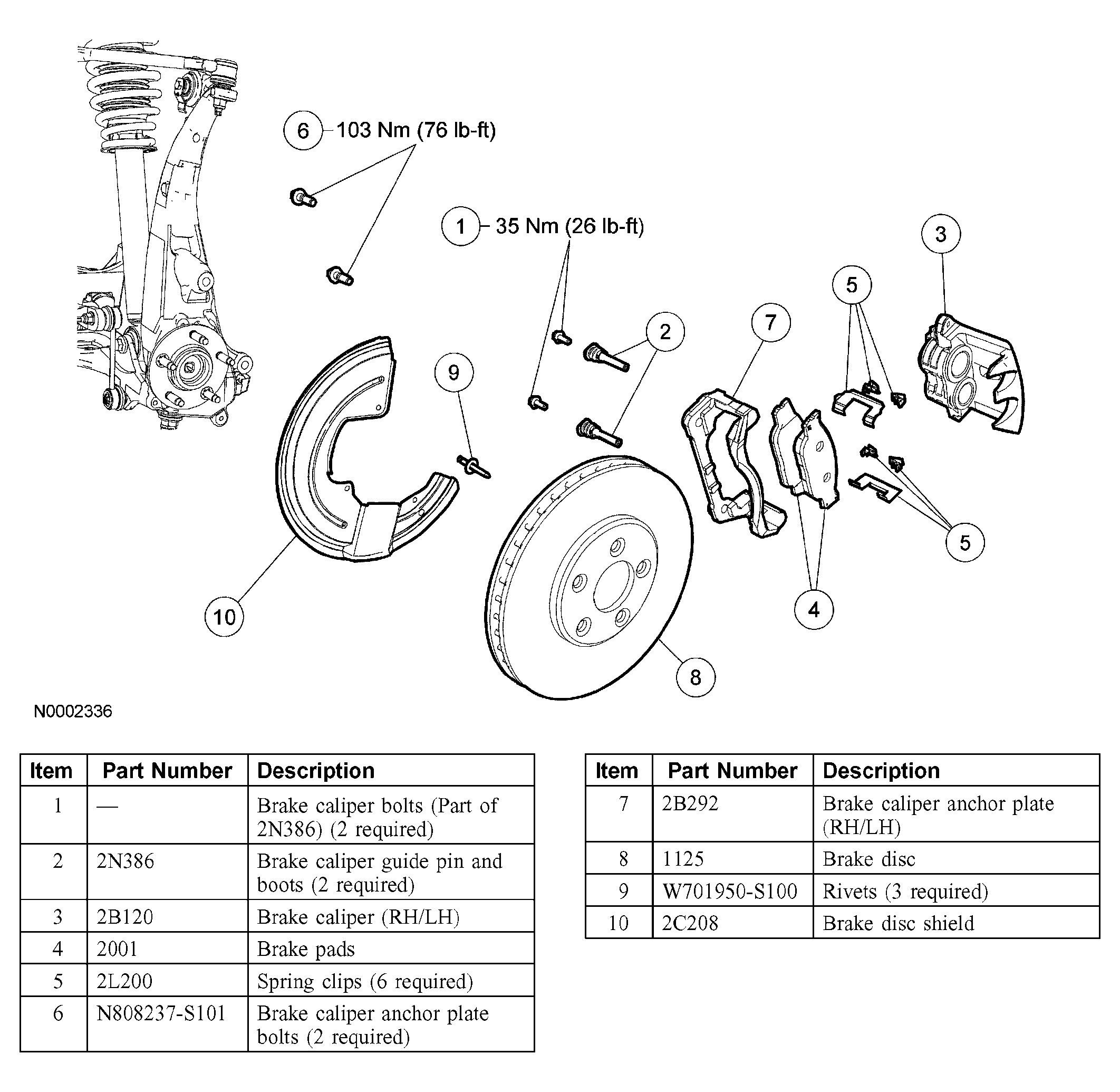

Fig 1: Exploded View Of Disc Brake System
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article .
