Keyless Entry Key-Pad: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the driver door panel.
3. Position weather shield aside.

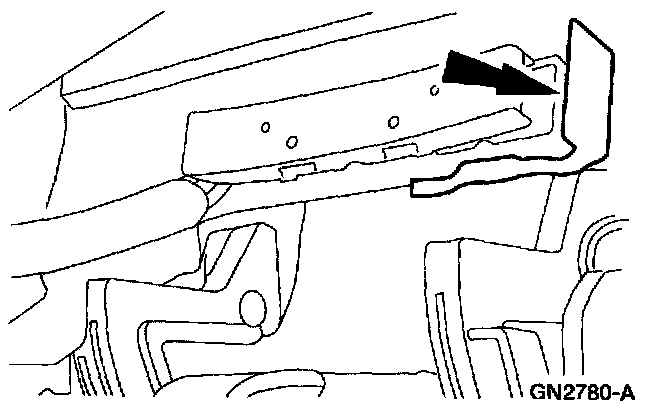

4. Remove the keyless entry keypad.
1 Remove the Clip and remove the keyless entry keypad.
- Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
