Control Module HVAC: Service and Repair

REMOVAL

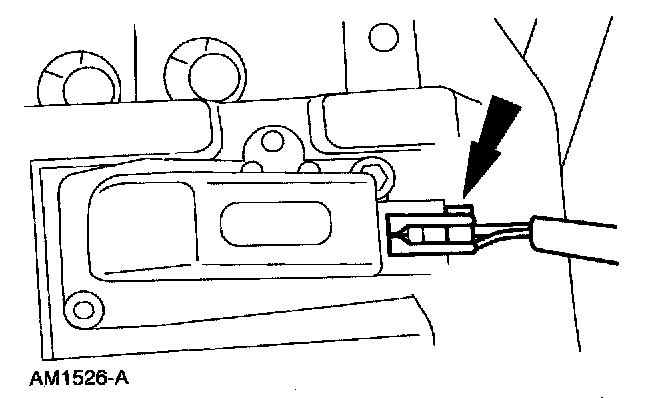

1. Disconnect the wire harness connector.
2. Drain the cooling system below the heater hoses.

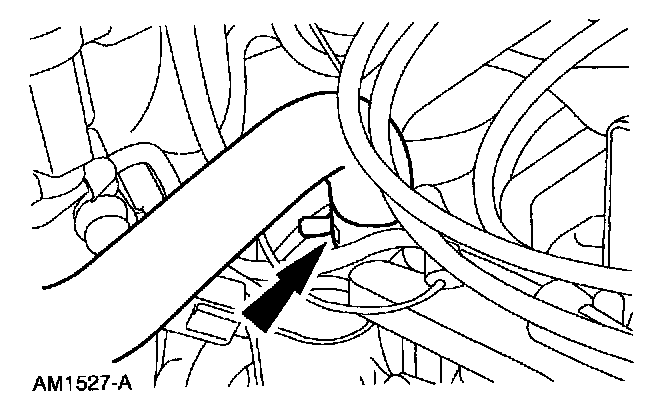

3. Disconnect the heater hose.

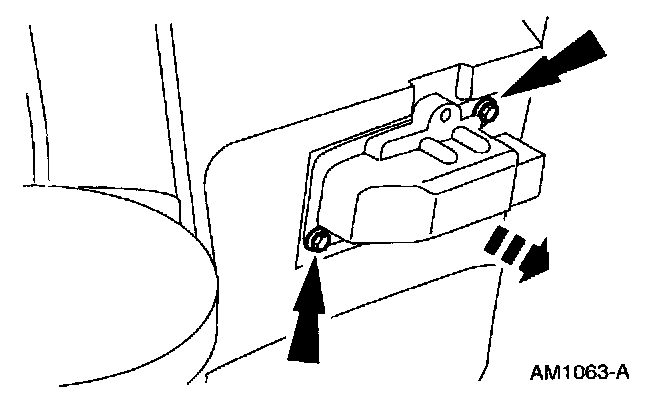

4. Remove the screws and remove the blower motor speed control.

INSTALLATION
1. To install, reverse the removal procedure.
