Air Flow Meter/Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to Battery.

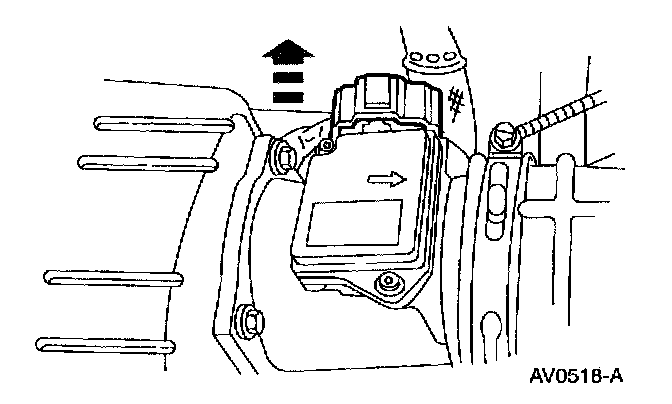

2. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

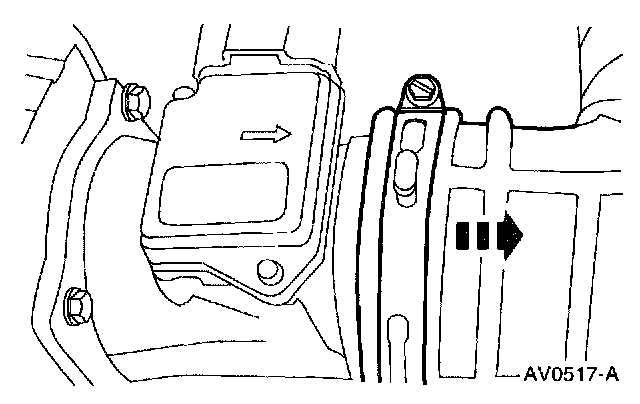

3. Disconnect the air cleaner outlet tube.

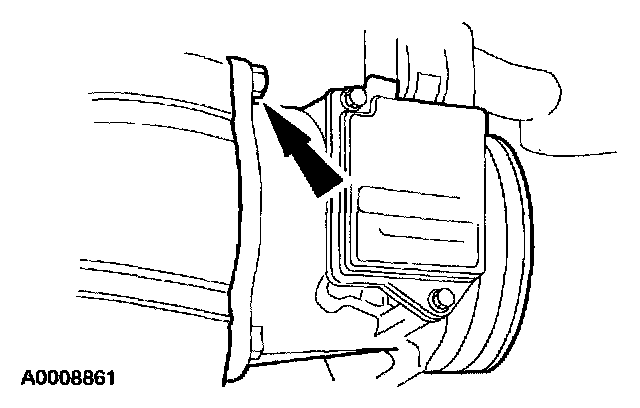

4. Remove the four bolts and the MAF sensor.

CAUTION: Do not tamper with the MAF sensing elements located in the airflow bypass. Tampering may result in unit failure.

NOTE: The MAF sensor module and body are calibrated and replaced as a unit.

INSTALLATION
1. To install, reverse the removal procedure.
